Product Details:
Payment & Shipping Terms:
|
| Spindle: | KAVO | Feature: | Has Routing Bit Life Time Checking And Alarm System To Remind Operator To Change Routing Bits When It Finish 120M Cutting. And Routing Bit First 2mm Cut The First Miling Point, Middle 2mm Cut The Second Milling Point, The Last 2mm Cut The Third Milling Poi |
|---|---|---|---|
| Positioning Accuracy: | 0.01mm | Function Edit: | Line,arc,circula,U-curve |
| Workstation PCB Fixation: | Standard,specialization | Overall Dimensions(W*D*H): | 1370mm*1650mm*1450mm |
| Program Edit: | Inline,offline | Manipulator Motor Type: | JiaBao Series |
| High Light: | Offline PCB Depaneling Machine,110mm Height PCB Depaneling Machine,650KG PCB Depaneling Machine |
||

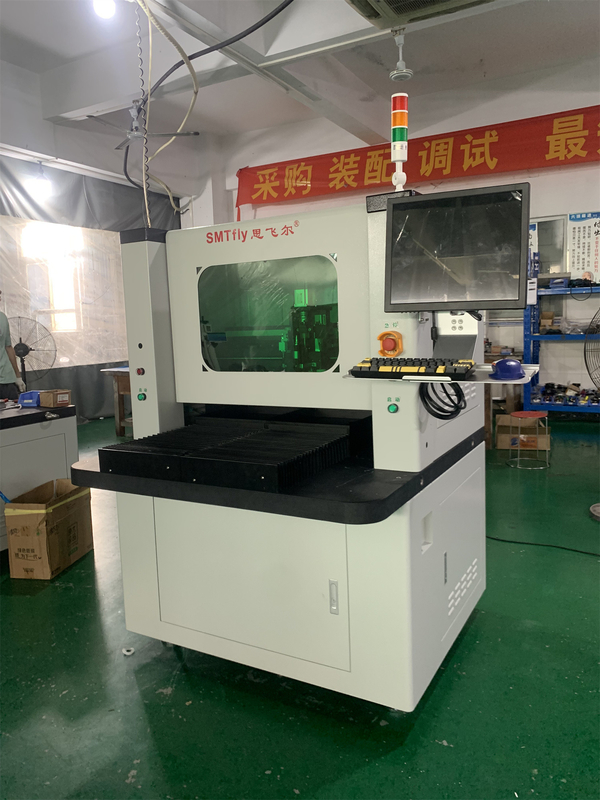

The PCB Depaneling Machine, also known as PCB Depaneling Router, PCB Router, and PCB CNC Router Machine, is a robotic arm-based machine designed to quickly and accurately cut intricate designs in printed circuit boards (PCBs). With a maximum working area of 830mm x 580mm x 50mm, the PCB Depaneling Machine can handle boards up to 5mm thick and has an adjustable height offset from 60 to 110mm. The overall weight of the machine is 650KG.
The PCB CNC Router Machine is a powerful and precise tool for PCB depaneling that offers great flexibility and versatility. It can be used for a variety of applications, such as cutting, routing, drilling, and engraving. It is an ideal choice for a wide range of industries. It is also suitable for high-volume production and can handle the most complex PCB depaneling tasks.
The PCB Depaneling Machine is a highly reliable and efficient tool for PCB depaneling. It is designed to provide maximum accuracy and speed for PCB depaneling applications. With its high-precision cutting and routing capabilities, the PCB Depaneling Machine is the perfect choice for large-scale production and complex PCB depaneling tasks.
| Product Attribute | Value |
| PCB Thickness | 0.3-3.5mm |
| Manipulator Positioning repeatability | 0.001mm |
| Workstation PCB size (max) | 320*320mm |
| Positioning Accuracy | 0.01mm |
| Workstation PCB fixation | Standard,specialization |
| Cutting Precision | 0.1mm |
| Function edit | Line,arc,circula,U-curve |
| Name | PCB Depaneling Machine,PCB Depaneling Router,PCB Depaneling Router Machine,PCB Router,PCB CNC Router |
| Workstation PCB loading/unloading | Manual |
| Program edit | Inline,offline |
ChuangWei PCB Depaneling Machine is certified with CE and originated from China. It is the ideal equipment for separating the PCB boards with high precision. With the KAVO spindle, it can provide high speed cutting and milling on the PCB boards. The overall height offset of the machine is adjustable from 60mm to 110mm. And the manipulator axis working area can reach up to 830mm*580mm*50mm.
The machine has a manual loading/unloading workstation for PCB. The price is negotiable and the minimum order quantity is 1 set. It can be packed in a plywood case and can be delivered within 7 days. The supply ability is 20 sets per month and the payment terms for the machine is T/T.
The most common applications of the ChuangWei PCB Depaneling Machine is PCB milling cutter machine, PCB depaneling machine, PCB milling cutter machine, PCB router, and PCB CNC router. It is widely used in the electronic industry, such as the production of computer motherboards, communications boards, industrial control boards, automotive electronics boards, and other similar products.
ChuangWei PCB Depaneling Machine, PCB CNC Router, PCB CNC Router is specially designed for PCB depaneling with features of high precision, fast speed and excellent stability. It is widely used in the industry of electronics, telecommunication, computers, etc.
PCB Depaneling Machine is packaged with foam wrap and cardboard boxes to ensure the product's safety during shipping. The package will be sealed with plastic tape to prevent water or other elements from entering the package. Before shipping, a detailed inventory will be taken to ensure all components are included in the package.
The PCB Depaneling Machine will be shipped using a reliable carrier, such as DHL, FedEx, or UPS. Tracking information will be provided to the customer for monitoring the delivery status.
