Walking Knife PCB Depaneling Machine With 0.001mm Manipulator Positioning Repeatability

Name: Walking Knife PCB Depaneling Machine With 0.001mm Manipulator Positioning Repeatability
Brand: ChuangWei
SKU: ChuangWei
Price: 1.00 USD
Availability: InStock
Rating: 4.9 (185 reviews)

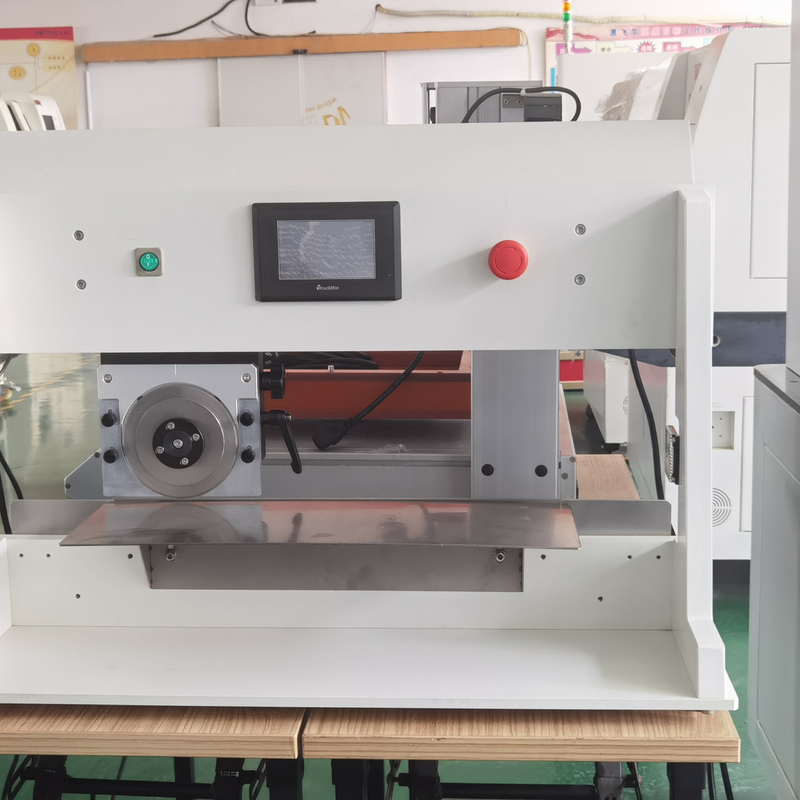

Large Image : Walking Knife PCB Depaneling Machine With 0.001mm Manipulator Positioning Repeatability

Product Details:

Place of Origin:	China
Brand Name:	ChuangWei
Certification:	CE

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	plywood case
Delivery Time:	7 days
Payment Terms:	T/T
Supply Ability:	20 sets per month

Contact Now

Detailed Product Description

Power:	2.0KW AC380V	Positioning Accuracy:	0.01mm
Cutting Precision:	0.1mm	Workstation PCB Fixation:	Standard,specialization
Workstation PCB Loading/unloading:	Manual	Manipulator Positioning Repeatability:	0.001mm
Overall Weight:	650KG	Program Edit:	Inline,offline
High Light:	Walking Knife PCB Depaneling Machine , PCB Depaneling Machine 2.0KW

Product Description:

The PCB Depaneling Machine is a cutting-edge tool for automating the PCB depaneling process. With its JiaBao Series Manipulator Motor and cutting precision of 0.1mm, it is sure to provide reliable and precise results. Other features make it even more efficient, such as its Routing Bit Life Time Checking and Alarm System, which reminds the operator to change routing bits when it has finished 120M cutting. The router bit is also designed to increase its life time, with the first 2mm cutting the first milling point, the middle 2mm cutting the second milling point, and the last 2mm cutting the third milling point.

This cutting-edge PCB Depaneling Router Machine, also known as a PCB CNC Router or PCB Depaneling Router, has a total overall weight of 650KG and its cutting precision is unmatched. It is sure to provide reliable, precise, and efficient results in the depaneling process.

Features:

Product Name: PCB Depaneling Machine
Program edit: Inline,offline
Workstation PCB fixation: Standard,specialization
Workstation PCB size (max): 320*320mm
Function edit: Line,arc,circula,U-curve
Manipulator Axis working area (max): 830mm*580mm*50mm
Printed Circuit Board Router
PCB Router Machine
PCB Router Machine with 8 Axis

Technical Parameters:

Name	Specification
PCB Thickness	0.3-3.5mm
Name	PCB Depaneling Machine,PCB Depaneling Router,PCB Depaneling Router Machine,PCB Router,PCB CNC Router
Workstation PCB thick (max)	5mm
Spindle	KAVO
Manipulator Axis working area(max)	830mm580mm50mm
Program edit	Inline,offline
Cutting speed(max.)	80mm/s
Workstation PCB fixation	Standard,specialization
Feature	Has Routing Bit Life Time Checking And Alarm System To Remind Operator To Change Routing Bits When It Finish 120M Cutting. And Routing Bit First 2mm Cut The First Miling Point, Middle 2mm Cut The Second Milling Point, The Last 2mm Cut The Third Milling Point To Increase Its Life Time.
Manipulator Motor type	JiaBao Series

Applications:

PCB Depaneling Machine Application by ChuangWei

ChuangWei offers PCB Depaneling Machine with the guarantee of quality and safety. It is certified by CE, and has a minimum order quantity of 1 Set with a negotiable price. The product is packaged in plywood cases for delivery within 7 days. Payment T/T is accepted for the order. The supply ability for this product is 20 sets per month. The overall height offset ranges from 60 to 110mm, and the workstation PCB size can reach up to 320*320mm. The power of the machine is 2.0KW AC380V. The manipulator motor type is JiaBao series, and the positioning accuracy reaches 0.01mm.

Customization:

ChuangWei PCB Depaneling Router Machine

Brand Name: ChuangWei
Place of Origin: China
Certification: CE
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: plywood case
Delivery Time: 7 days
Payment Terms: T/T
Supply Ability: 20 sets per month
Workstation PCB loading/unloading: Manual
Manipulator Axis working area(max): 830mm*580mm*50mm
Name: PCB Depaneling Machine,PCB Depaneling Router,PCB Depaneling Router Machine,PCB Router,PCB CNC Router
Overall Weight: 650KG
Feature: Has Routing Bit Life Time Checking And Alarm System To Remind Operator To Change Routing Bits When It Finish 120M Cutting. And Routing Bit First 2mm Cut The First Miling Point, Middle 2mm Cut The Second Milling Point, The Last 2mm Cut The Third Milling Point To Increase Its Life Time.

Packing and Shipping:

Packaging and Shipping for PCB Depaneling Machine

The PCB Depaneling Machine will be wrapped in bubble wrap and packed in a cardboard box.
The box will be labeled with the product number, product name, customer name, and address.
The package will be shipped via a standard courier service.
The customer will be notified by email when the product has been shipped.

FAQ:

Q1: What is the brand name of the PCB Depaneling Machine?: A1: The brand name of the PCB Depaneling Machine is ChuangWei.
Q2: Where is the PCB Depaneling Machine manufactured?: A2: The PCB Depaneling Machine is manufactured in China.
Q3: Does the PCB Depaneling Machine have CE certification?: A3: Yes, the PCB Depaneling Machine has CE certification.
Q4: What is the minimum order quantity for the PCB Depaneling Machine?: A4: The minimum order quantity for the PCB Depaneling Machine is 1 set.
Q5: How long does it take to deliver the PCB Depaneling Machine after payment?: A5: The PCB Depaneling Machine can be delivered within 7 days after payment.
