Product Details:
Payment & Shipping Terms:
|
| Workstation PCB Size (max): | 320*320mm | Workstation PCB Fixation: | Standard,specialization |
|---|---|---|---|
| Power: | 2.0KW AC380V | Cutting Precision: | 0.1mm |
| Manipulator Axis Working Area(max): | 830mm*580mm*50mm | Manipulator Motor Type: | JiaBao Series |
| Positioning Accuracy: | 0.01mm | Overall Height Offset: | 60~110mm |
| High Light: | KAVO Spindle PCB Depaneling Router,320*320mm Max PCB Depaneling Router,320*320mm Max PCB Depaneling Router |
||

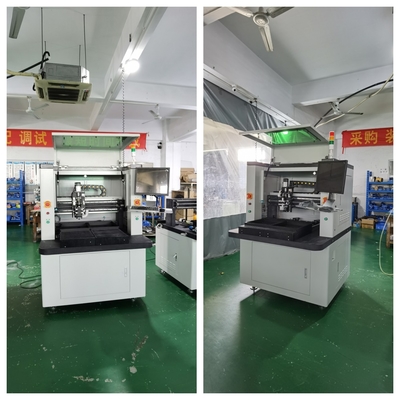

PCB Depaneling Machine is a kind of PCB Router Machine, also known as PCB CNC Router Machine, which is specially designed and manufactured for the depaneling and processing of PCBs. It adopts advanced CNC technology to achieve precise cutting with a cutting precision of 0.1mm. And this PCB Depaneling Machine has an overall dimension of 1370mm*1650mm*1450mm, a maximum workstation PCB size of 320*320mm, and an overall weight of 650KG. In addition, this PCB Depaneling Machine is also equipped with a height offset of 60~110mm, which can meet the needs of different application scenarios. All in all, this PCB Depaneling Machine is a reliable and effective CNC Router Machine for the depaneling and processing of PCBs.
| Parameter | Value |
|---|---|
| Power | 2.0KW AC380V |
| Spindle | KAVO |
| Feature | Has Routing Bit Life Time Checking And Alarm System To Remind Operator To Change Routing Bits When It Finish 120M Cutting. And Routing Bit First 2mm Cut The First Miling Point, Middle 2mm Cut The Second Milling Point, The Last 2mm Cut The Third Milling Point To Increase Its Life Time. |
| Cutting speed (max.) | 80mm/s |
| Function edit | Line, arc, circular, U-curve |
| Workstation PCB fixation | Standard, specialization |
| Name | PCB Depaneling Machine, PCB Depaneling Router, PCB Depaneling Router Machine, PCB Router, PCB CNC Router |
| Positioning Accuracy | 0.01mm |
| Overall Weight | 650KG |
| Manipulator Motor type | JiaBao Series |
| Focus | Printed Circuit Board Router, PCB Router Machine, PCB Depaneling Router Machine |
The PCB Depaneling Machine from ChuangWei is a printed circuit board router made for a variety of applications. It comes with CE certification and a minimum order quantity of 1 set. This PCB CNC Router Machine is offered at a negotiable price and is packaged in a plywood case for delivery. The delivery time is 7 days and payment terms are T/T. This machine has a KAVO spindle with a manual PCB loading/unloading. The PCB fixation is both standard and specialization. The manipulator axis working area has a maximum of 830mm*580mm*50mm. The supply ability is 20 sets per month.
The ChuangWei PCB Depaneling Machine is an ideal choice for those needing a Printed Circuit Board Router due to its versatility. It has the ability to both standardize and specialize PCB fixation and a large working area for the manipulator axis with a maximum of 830mm*580mm*50mm. It has a KAVO spindle and a manual loading/unloading feature for PCBs. This Printed Circuit Board Router from ChuangWei is offered at a negotiable price and comes with CE certification and a minimum order quantity of 1 set.
Place of Origin: China
Certification: CE
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: plywood case
Delivery Time: 7 days
Payment Terms: T/T
Supply Ability: 20 sets per month
Cutting Precision: 0.1mm
Manipulator Positioning repeatability: 0.001mm
Feature: Has Routing Bit Life Time Checking And Alarm System To Remind Operator To Change Routing Bits When It Finish 120M Cutting. And Routing Bit First 2mm Cut The First Miling Point, Middle 2mm Cut The Second Milling Point, The Last 2mm Cut The Third Milling Point To Increase Its Life Time.
Overall Height offset: 60~110mm
Manipulator Axis working area(max): 830mm*580mm*50mm
This PCB Depaneling Machine from ChuangWei is a high-performance CNC router machine used for PCB depaneling, it is a reliable and efficient PCB router machine with excellent cutting precision and high positioning repeatability. With this PCB CNC Router Machine, you can get the best results from PCB Router.
The PCB Depaneling Machine can be packaged and shipped with the following materials:
The shipping method will be determined by the customer's needs and the size of the machine.
