Product Details:
Payment & Shipping Terms:
|
| Feature: | Has Routing Bit Life Time Checking And Alarm System To Remind Operator To Change Routing Bits When It Finish 120M Cutting. And Routing Bit First 2mm Cut The First Miling Point, Middle 2mm Cut The Second Milling Point, The Last 2mm Cut The Third Milling Poi | Power: | 2.0KW AC380V |
|---|---|---|---|
| Manipulator Axis Working Area(max): | 830mm*580mm*50mm | Overall Dimensions(W*D*H): | 1370mm*1650mm*1450mm |
| Overall Height Offset: | 60~110mm | Cutting Speed(max.): | 80mm/s |
| Workstation PCB Size (max): | 320*320mm | Workstation PCB Thick (max): | 5mm |
| High Light: | PCB Depaneling Machine 2.0KW,PCB Depaneling Machine With Manipulator Axis,PCB Depaneling Machine AC380V |
||

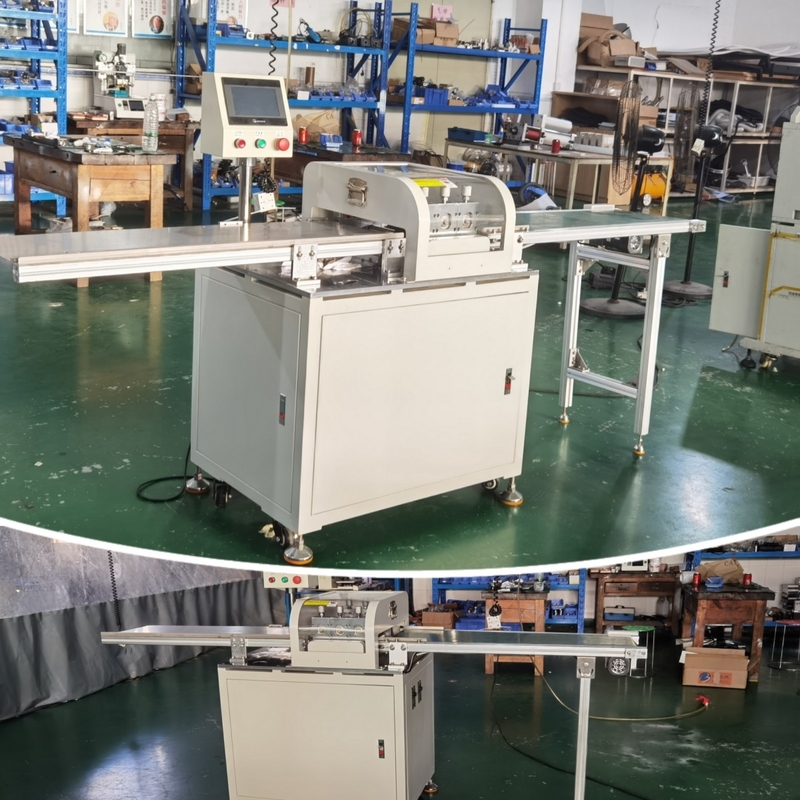

PCB Depaneling Router Machine is an advanced CNC router machine designed for PCB depaneling and routing applications. It features a manipulator axis working area of 830mm*580mm*50mm, with an overall dimension of 1370mm*1650mm*1450mm. The machine is equipped with manual loading/unloading workstation, and it has an overall height offset of 60~110mm. It requires 2.0KW AC380V power to operate. It is capable of providing precision cuts for PCB depaneling, PCB routing and other machining operations. The machine is an ideal choice for the PCB manufacturing industry, as it offers superior performance and reliability.
| Parameter | Detail |
|---|---|
| PCB Thickness | 0.3-3.5mm |
| Power | 2.0KW AC380V |
| Spindle | KAVO |
| Feature | Has Routing Bit Life Time Checking And Alarm System To Remind Operator To Change Routing Bits When It Finish 120M Cutting. And Routing Bit First 2mm Cut The First Miling Point, Middle 2mm Cut The Second Milling Point, The Last 2mm Cut The Third Milling Point To Increase Its Life Time. |
| Manipulator Motor type | JiaBao Series |
| Program edit | Inline,offline |
| cutting Precision | 0.1mm |
| Manipulator Positioning repeatability | 0.001mm |
| Workstation PCB fixation | Standard,specialization |
| Manipulator Axis working area(max) | 830mm*580mm*50mm |
ChuangWei is a leading manufacturer of PCB depaneling machines in China, which provides efficient, reliable, and cost-effective solutions for printed circuit board routers. The PCB depaneling machine is a powerful and versatile machine designed to accurately separate printed circuit boards from each other. The machine's features include a routing bit life time checking and alarm system, which will remind the operator to change routing bits when it finishes 120 meters of cutting. Additionally, the routing bit has three cutting points, the first two milling points have 2mm cuts, and the last 2mm cut is the third milling point, which helps extend the router bit's life time. Additionally, the machine has a maximum PCB thick of 5mm and a maximum PCB size of 320*320mm. It also features a JiaBao series motor manipulator and overall dimensions of 1370mm*1650mm*1450mm. All of these features make the ChuangWei PCB depaneling machine an ideal choice for those looking for a reliable and cost-effective solution for their PCB router needs.
The ChuangWei PCB depaneling machine is certified by CE and is available in minimum order quantities of one set. Customers can expect a price that is negotiable and a delivery time of 7 days. The machine is delivered in a plywood case and the company has a supply ability of 20 sets per month. With these features, ChuangWei offers a high quality PCB depaneling machine that is perfect for any application.
ChuangWei PCB Depaneling Machine is a specialized CNC Router for PCB depaneling and routing of Printed Circuit Boards. It is designed with the highest quality and precision to ensure accurate and reliable routing. With a cutting speed of up to 80mm/s and a positioning repeatability of 0.001mm, it is the perfect choice for your PCB routing needs.
PCB Depaneling Machine will be packaged in a carton box with foam inserts for additional protection. The carton size will be determined by the size of the machine and accessories.
The package will be shipped through a reliable courier service. The estimated delivery time is 3-5 business days.
