Product Details:
Payment & Shipping Terms:
|
| Program Edit: | Inline,offline | Workstation PCB Loading/unloading: | Manual |
|---|---|---|---|
| Cutting Precision: | 0.1mm | Manipulator Positioning Repeatability: | 0.001mm |
| Function Edit: | Line,arc,circula,U-curve | Cutting Speed(max.): | 80mm/s |
| Name: | PCB Depaneling Machine,PCB Depaneling Router,PCB Depaneling Router Machine,PCB Router,PCB CNC Router | Manipulator Axis Working Area(max): | 830mm*580mm*50mm |
| High Light: | Inline Laser PCB Depaneling Machine,Laser Depaneling Machine For Automated Cutting,Laser Printed Circuit Board Router |
||

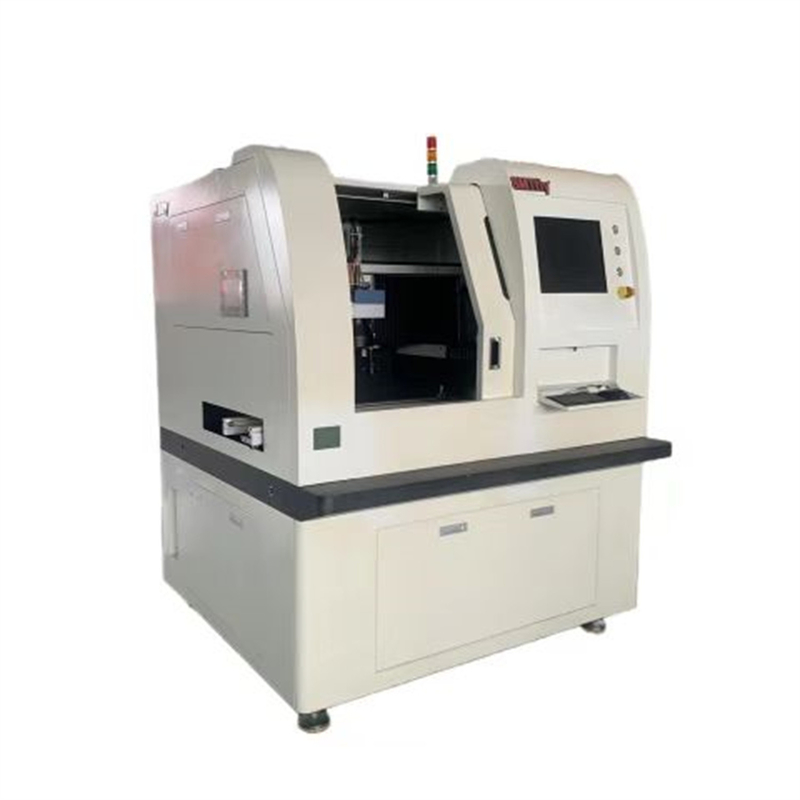

PCB Depaneling Machine is a kind of CNC router machine used to depanel PCB. It is equipped with positioning accuracy of 0.01mm, cutting speed up to 80mm/s, overall weight of 650KG, and suports PCB thickness from 0.3mm to 3.5mm. This machine is equipped with standard and specialization workstation PCB fixation. It is a reliable and efficient PCB router machine for depaneling PCB.
PCB Depaneling Machine is a CNC router for PCB depaneling. It has the advantages of fast cutting speed, high positioning accuracy, and supports multiple PCB thicknesses. With standard and specialized workstation PCB fixation, it offers reliable and efficient depaneling solutions for PCB manufacturers and makers. It is the perfect PCB router machine for precise and accurate PCB depaneling.
| Name | Parameter |
|---|---|
| Workstation PCB fixation | Standard,specialization |
| Overall Height offset | 60~110mm |
| Manipulator Positioning repeatability | 0.001mm |
| Positioning Accuracy | 0.01mm |
| Workstation PCB loading/unloading | Manual |
| Workstation PCB thick (max) | 5mm |
| PCB Thickness | 0.3-3.5mm |
| Name | PCB Depaneling Machine,PCB Depaneling Router,PCB Depaneling Router Machine,PCB Router,PCB CNC Router |
| Cutting speed(max.) | 80mm/s |
| Manipulator Axis working area(max) | 830mm*580mm*50mm |
| Keywords | Printed Circuit Board Router, PCB Router Machine, PCB Router Machine |
ChuangWei PCB Depaneling Machine is a high-precision and high-efficiency machine used to cut printed circuit boards (PCBs). It is made by our advanced technology and experienced engineers, and has a reliable performance and long service life. It has a CE certification, and its minimum order quantity is 1 set. The price is negotiable and the packaging details are plywood case. The overall weight is 650kg and the delivery time is 7 days. The payment terms are T/T and the supply ability is 20 sets per month. The positioning accuracy is 0.01mm, the cutting precision is 0.1mm, the workstation PCB size (max) is 320*320mm, and the cutting speed (max) is 80mm/s. It is suitable for various industries, such as electronics, electrical appliances, automotive, aerospace, and medical. It is widely used in the PCB depaneling of mobile phones, computers, and other electronic products. ChuangWei PCB Depaneling Machine is the ideal choice for PCB depaneling, routing, and cutting. It is the perfect choice for your PCB routing, depaneling, and cutting needs. It is the best PCB router machine, PCB depaneling router machine and printed circuit board router machine.
Brand Name: ChuangWei
Place of Origin: China
Certification: CE
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: plywood case
Delivery Time: 7 days
Payment Terms: T/T
Supply Ability: 20 sets per month
Workstation PCB fixation: Standard,specialization
Feature: Has Routing Bit Life Time Checking And Alarm System To Remind Operator To Change Routing Bits When It Finish 120M Cutting. And Routing Bit First 2mm Cut The First Miling Point, Middle 2mm Cut The Second Milling Point, The Last 2mm Cut The Third Milling Point To Increase Its Life Time.
Overall Weight: 650KG
Spindle: KAVO
Manipulator Motor type: JiaBao Series
The PCB Depaneling Machine should be packaged and shipped with the following steps:
A1: The brand name of the PCB Depaneling Machine is ChuangWei.
A2: The PCB Depaneling Machine is made in China.
A3: Yes, the PCB Depaneling Machine has CE certification.
A4: The minimum order quantity for the PCB Depaneling Machine is 1 set.
A5: The price of the PCB Depaneling Machine is negotiable.
