Product Details:
Payment & Shipping Terms:
|
| Manipulator Axis Working Area(max): | 830mm*580mm*50mm | Feature: | Has Routing Bit Life Time Checking And Alarm System To Remind Operator To Change Routing Bits When It Finish 120M Cutting. And Routing Bit First 2mm Cut The First Miling Point, Middle 2mm Cut The Second Milling Point, The Last 2mm Cut The Third Milling Poi |
|---|---|---|---|
| Overall Dimensions(W*D*H): | 1370mm*1650mm*1450mm | Workstation PCB Thick (max): | 5mm |
| Program Edit: | Inline,offline | Positioning Accuracy: | 0.01mm |
| Prodcut Name: | Printed Circuit Board Router | Spindle: | KAVO |
| High Light: | offline PCB Router Machine,JiaBao Series Manipulator PCB Router Machine,0.3mm PCB Router Machine |
||

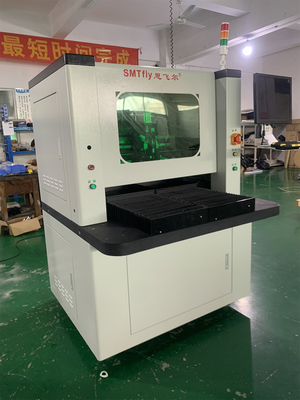

PCB Depaneling Machine is a CNC router for PCB depaneling. It has a powerful routing bit life time checking and alarm system, which can remind operators to change routing bits when it finishes 120M cutting. Moreover, the routing bit has a cutting strategy: the first 2mm cut the first miling point, middle 2mm cut the second miling point, and the last 2mm cut the third miling point, which is designed to increase the life time. It comes with standard and specialization workstation PCB fixation. The power requirement is 2.0KW AC380V and the cutting precision is 0.1mm.
| Item | Specification |
|---|---|
| Manipulator Axis working area(max) | 830mm*580mm*50mm |
| Positioning Accuracy | 0.01mm |
| Manipulator Positioning repeatability | 0.001mm |
| cutting Precision | 0.1mm |
| Overall Weight | 650KG |
| Workstation PCB fixation | Standard,specialization |
| Workstation PCB size (max) | 320*320mm |
| Manipulator Motor type | JiaBao Series |
| Cutting speed(max.) | 80mm/s |
| Feature | Has Routing Bit Life Time Checking And Alarm System To Remind Operator To Change Routing Bits When It Finish 120M Cutting. And Routing Bit First 2mm Cut The First Miling Point, Middle 2mm Cut The Second Milling Point, The Last 2mm Cut The Third Milling Point To Increase Its Life Time. |
ChuangWei PCB Depaneling Machine is a CNC Router Machine manufactured in China and certified with CE mark. It is available in minimum quantity of 1 set, with price negotiable and packing in plywood case. The delivery time is 7 days, and the payment terms are T/T. The supply ability is 20 sets per month.
ChuangWei PCB Depaneling Machine is equipped with various features. The manipulator positioning repeatability is 0.001mm, and the power is 2.0KW AC380V. Its function edit includes line, arc, circle, and U-curve. It has cutting precision of 0.1mm, and the manipulator motor type is JiaBao series.
ChuangWei PCB Depaneling Machine is an ideal choice for those in need of a precise and high-performance CNC Router Machine for PCB depaneling. It is equipped with all necessary features, ensuring accuracy and efficiency.
ChuangWei offers a customizable PCB Depaneling Router Machine that is specifically designed to meet your needs. This machine is certified by CE, and the minimum order quantity for this product is 1 set. You can expect to receive the product within 7 days after you place the order. The price of this product is negotiable and it will be packed in a plywood case for delivery. We can supply up to 20 sets per month. The workstation PCB thickness can be up to 5mm, and the manipulator axis working area can extend to 830mm*580mm*50mm. The positioning accuracy is up to 0.01mm, and the PCB thickness is between 0.3-3.5mm. This product also supports both inline and offline programming edit.
ChuangWei’s PCB Depaneling Router Machine is the perfect solution for your PCB depaneling needs. This machine is a reliable and efficient way to depanel your PCB boards with accuracy and precision. With our customizable service, you can get the exact machine that you need. Contact us today to get started!
PCB Depaneling Machine Packaging and Shipping:
Q1: What is the brand name of the PCB De-paneling Machine?
A1: The brand name of the PCB De-paneling Machine is ChuangWei.
Q2: Where is the PCB De-paneling Machine made?
A2: The PCB De-paneling Machine is made in China.
Q3: Does the PCB De-paneling Machine have any certifications?
A3: Yes, the PCB De-paneling Machine has CE certification.
Q4: What is the minimum order quantity of the PCB De-paneling Machine?
A4: The minimum order quantity of the PCB De-paneling Machine is 1 set.
Q5: How much does the PCB De-paneling Machine cost?
A5: The price of the PCB De-paneling Machine is negotiable.
