| Prodcut Name: | Printed Circuit Board Router | Manipulator Positioning Repeatability: | 0.001mm |
|---|---|---|---|
| Manipulator Motor Type: | JiaBao Series | Workstation PCB Fixation: | Standard,specialization |
| Cutting Speed(max.): | 80mm/s | Name: | PCB Depaneling Machine,PCB Depaneling Router,PCB Depaneling Router Machine,PCB Router,PCB CNC Router |
| Workstation PCB Loading/unloading: | Manual | Function Edit: | Line,arc,circula,U-curve |
| High Light: | CE PCB Depaneling Router Machine,Manual Workstation PCB Depaneling Router Machine |
||

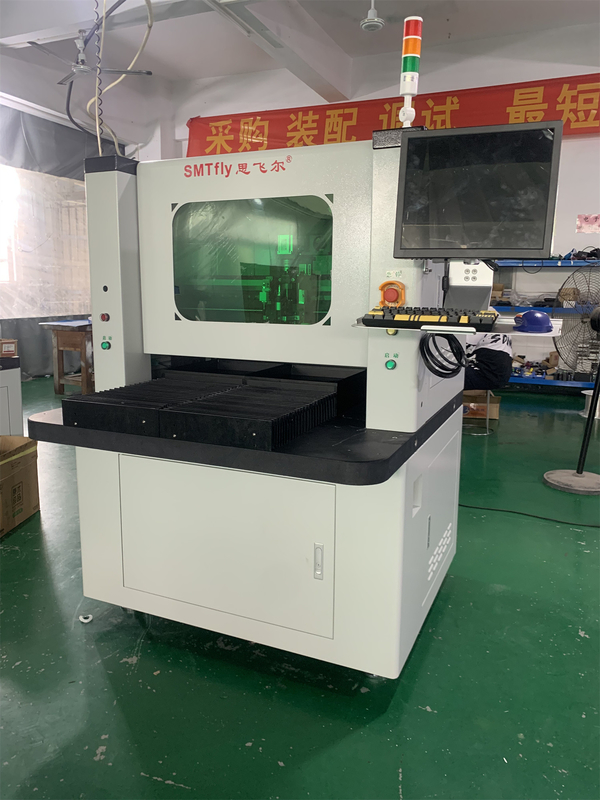

PCB Depaneling Router Machine is an advanced machine that is designed for depaneling printed circuit boards (PCB). It features a routing bit life time checking and alarm system to remind operators when it finish 120M cutting. The routing bit is designed to cut the first milling point with the first 2mm, the second milling point with the middle 2mm and the third milling point with the last 2mm, to increase its life time. The machine has a maximum workstation PCB thick of 5mm and a maximum workstation PCB size of 320*320mm. It offers a maximum cutting speed of 80mm/s. This PCB Depaneling Router Machine is a reliable and efficient choice for depaneling printed circuit boards.
| Name | Power |
|---|---|
| PCB Depaneling Machine,PCB Depaneling Router,PCB Depaneling Router Machine,PCB Router,PCB CNC Router | 2.0KW AC380V |
| Cutting speed(max.) | Overall Dimensions(W*D*H) |
| 80mm/s | 1370mm*1650mm*1450mm |
| Positioning Accuracy | Feature |
| 0.01mm | Has Routing Bit Life Time Checking And Alarm System To Remind Operator To Change Routing Bits When It Finish 120M Cutting. And Routing Bit First 2mm Cut The First Miling Point, Middle 2mm Cut The Second Milling Point, The Last 2mm Cut The Third Milling Point To Increase Its Life Time. |
| Workstation PCB fixation | Manipulator Motor type |
| Standard,specialization | JiaBao Series |
| Manipulator Positioning repeatability | Workstation PCB thick (max) |
| 0.001mm | 5mm |
The PCB Depaneling Machine from ChuangWei is a highly advanced printed circuit board router that is designed to provide precise cutting, routing and de-paneling of a variety of materials. It is capable of cutting and routing lines, arcs, circles, and U-curves with a thickness of 0.3-3.5mm and an overall height offset of 60-110mm. The machine can be used for both inline and offline programming, allowing you to easily edit your PCB designs. With a minimum order quantity of 1 set, this PCB CNC router machine is a great choice for any PCB manufacturer. Moreover, the product is CE certified and comes with a plywood case for packaging. You can purchase it at a negotiable price and the supply ability is 20 sets per month. Delivery time is usually 7 days and payment terms are T/T.
Brand Name: ChuangWei
Place of Origin: China
Certification: CE
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: plywood case
Delivery Time: 7 days
Payment Terms: T/T
Supply Ability: 20 sets per month
Power: 2.0KW AC380V
Positioning Accuracy: 0.01mm
Manipulator Axis working area(max): 830mm*580mm*50mm
Name: PCB Depaneling Machine, PCB Depaneling Router, PCB Depaneling Router Machine, PCB Router, PCB CNC Router
Workstation PCB loading/unloading: Manual
ChuangWei PCB Depaneling Machine is specially designed for the depaneling of printed circuit board (PCB). It is widely applied in the fields of electronics, automobile, home appliance and so on. The machine is equipped with 2.0KW AC380V power system, and its positioning accuracy is 0.01mm. It features manual loading/unloading PCB workstation, with manipulator axis working area up to 830*580*50mm.
Keywords: PCB CNC Router Machine, Printed Circuit Board Router, PCB Depaneling Machine
PCB Depaneling Machine is packaged and shipped in an easy-to-handle box that is designed to protect the product during shipping. The box is constructed of heavy-duty cardboard and has foam inserts to hold the product securely in place. All necessary hardware and tools are included in the box, as well as a user manual.
Before shipping, all products are inspected for quality assurance. The product is then carefully wrapped in bubble wrap to protect it during transit. The box is sealed with heavy-duty tape and labeled with the product name and shipping information.
The product is shipped via a reliable courier service. Tracking information is provided once the product has been shipped, and customers can expect to receive their product in a few days.
