Product Details:
Payment & Shipping Terms:
|
| Cutting Precision: | 0.1mm | Positioning Accuracy: | 0.01mm |
|---|---|---|---|
| Manipulator Positioning Repeatability: | 0.001mm | Prodcut Name: | Printed Circuit Board Router |
| Power: | 2.0KW AC380V | Manipulator Axis Working Area(max): | 830mm*580mm*50mm |
| Overall Dimensions(W*D*H): | 1370mm*1650mm*1450mm | Workstation PCB Size (max): | 320*320mm |
| High Light: | 650KG PCB Depaneling Machine,PCB Depaneling Machine with Manipulator,Printed Circuit Board Router with Manipulator |
||

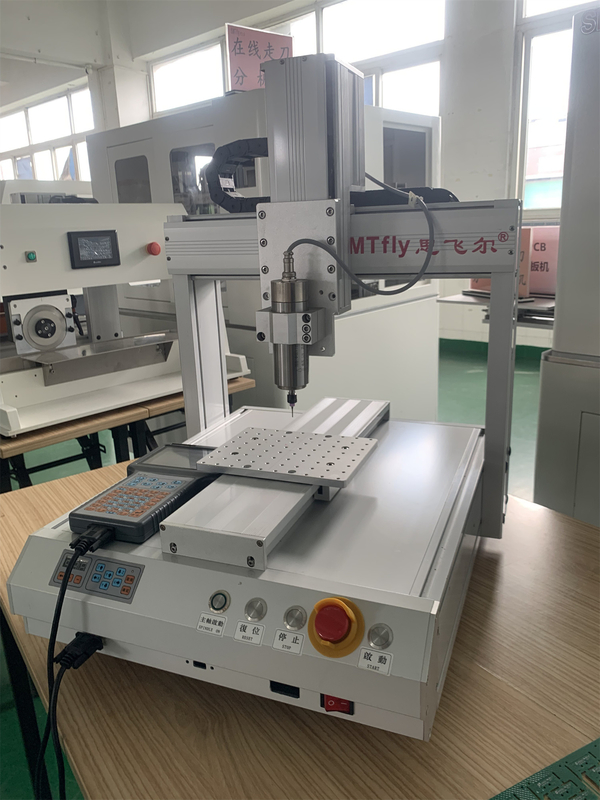

PCB Depaneling Machine is an advanced CNC router for printed circuit board (PCB) depaneling. It features a highly reliable and efficient design, allowing for accurate and precise cutting of PCBs into smaller, more manageable sections. The machine has an easy-to-use control system and is able to accurately edit lines, arcs, circles, and U-curves with utmost precision and repeatability of up to 0.001mm. It also offers specialized and standard PCB fixation solutions, as well as manual loading and unloading options. Additionally, the overall weight of the PCB Depaneling Machine is 650KG, making it highly portable and easy to transport. This machine is the perfect solution for PCB depaneling and provides a highly efficient and cost-effective alternative to manual PCB depaneling.
| Parameter | Specification |
|---|---|
| Cutting Precision | 0.1mm |
| Workstation PCB fixation | Standard,specialization |
| Cutting speed(max.) | 80mm/s |
| Workstation PCB size(max.) | 320*320mm |
| Feature | Has Routing Bit Life Time Checking And Alarm System To Remind Operator To Change Routing Bits When It Finish 120M Cutting. And Routing Bit First 2mm Cut The First Miling Point, Middle 2mm Cut The Second Milling Point, The Last 2mm Cut The Third Milling Point To Increase Its Life Time. |
| Overall Height offset | 60~110mm |
| PCB Thickness | 0.3-3.5mm |
| Positioning Accuracy | 0.01mm |
| Manipulator Positioning repeatability | 0.001mm |
| Product Name | Printed Circuit Board Router |
ChuangWei PCB Depaneling Router Machine, which is made in China and certified with CE, is the perfect solution for PCB depaneling needs. It comes with a minimum order quantity of 1 set and the price is negotiable. Packaging details include plywood case and delivery time is 7 days. Payment terms are T/T and the supply ability is 20 sets per month. It has two program edit modes, inline and offline, and the overall height offset is 60-110mm. The workstation PCB fixation can be standard or specialization. This PCB CNC Router has a routing bit life time checking and alarm system to remind operators to change routing bits when it finishes 120M cutting. The routing bit first 2mm cut the first miling point, middle 2mm cut the second miling point, and the last 2mm cut the third milling point to increase its life time. All in all, this Printed Circuit Board Router is suitable for various needs.
Customized PCB Depaneling Router Service
Brand Name: ChuangWei
Place of Origin: China
Certification: CE
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: plywood case
Delivery Time: 7 days
Payment Terms: T/T
Supply Ability: 20 sets per month
Workstation PCB thick (max): 5mm
Overall Weight: 650KG
Overall Height offset: 60~110mm
Product Name: Printed Circuit Board Router
Function edit: Line,arc,circula,U-curve
Are you looking for a high-quality PCB Depaneling Router Machine?
ChuangWei provides customized PCB Depaneling Router services that meet your specific requirements.
All our PCB Depaneling Router Machines have CE certification, and minimum order quantity is one set.
The packaging details are plywood case, the delivery time is 7 days, and the payment terms are T/T.
Our supply ability is 20 sets per month, and the maximum workstation PCB thick is 5mm.
The overall weight is 650KG, and the overall height offset is 60~110mm.
The product name is printed circuit board router, and its functions include line, arc, circle, and U-curve.
Price is negotiable.
Contact us now for more information!
The PCB Depaneling Machine is packaged in a cardboard box with the following components:
The box is then placed in a shipping carton with appropriate cushioning material to protect the contents.
The shipping carton is then sealed and labeled with the required shipping information.
