| Manipulator Axis Working Area(max): | 830mm*580mm*50mm | Manipulator Motor Type: | JiaBao Series |
|---|---|---|---|
| Manipulator Positioning Repeatability: | 0.001mm | Cutting Speed(max.): | 80mm/s |
| Overall Dimensions(W*D*H): | 1370mm*1650mm*1450mm | Cutting Precision: | 0.1mm |
| Overall Weight: | 650KG | PCB Thickness: | 0.3-3.5mm |
| High Light: | CE PCB Punch Depaneling Machine,80mm/s PCB Punch Depaneling Machine,Workstation Fixation PCB Punching Machine |
||

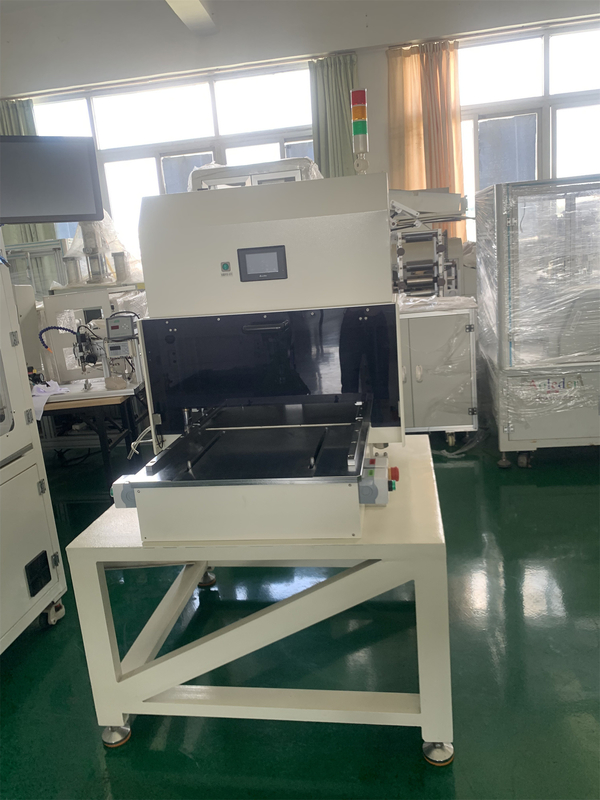

The PCB Depaneling Machine is a powerful CNC router that is ideal for a wide range of PCB depaneling applications. It is equipped with a special cutting tool and features a high precision cutting accuracy of 0.1mm to ensure smooth and accurate results. The cutting speed is up to 80mm/s and the PCB thickness range from 0.3-3.5mm. This machine also features a manipulator positioning repeatability of 0.001mm, providing users with precise control of the cutting process. The manual workstation allows for easy loading and unloading of PCBs, making it faster and more efficient. With its advanced features, the PCB Depaneling Machine is the perfect solution for any PCB depaneling needs.
X10 Zoom-in image provides a great advantage to programming. With the increased accuracy of point setting, it makes the programming process much easier.
TheTwo sliding table helps to reduce the tack time for better productivity by providing simultaneous in-and-out movement.
The AUTO MARK offset system is also a great feature to make your life easier. With the help of CCD imaging, it can check and simulate the path or routing before you even begin to cut it, thus reducing any unnecessary mistakes that may be caused.
As for the routing bit, it has a life time checking and alarm system to remind operators. The system will remind the operator when the bit has finished 120M of cutting, so that it can be replaced. In addition to that, the router bit is designed to cut the first milling point with the first 2mm, the second milling point in the middle 2mm, and the third milling point at the last 2mm, which increases its life time.
The CCD image can also check and simulate the path or routing, which helps reduce any unnecessary mistakes that may be made.
| Parameter | Description |
|---|---|
| Overall Dimensions(W*D*H) | 1370mm*1650mm*1450mm |
| Product Name | Printed Circuit Board Router |
| Manipulator Axis Working Area(Max) | 830mm*580mm*50mm |
| Spindle | KAVO |
| Feature | Has Routing Bit Life Time Checking And Alarm System To Remind Operator To Change Routing Bits When It Finish 120M Cutting. And Routing Bit First 2mm Cut The First Miling Point, Middle 2mm Cut The Second Milling Point, The Last 2mm Cut The Third Milling Point To Increase Its Life Time. |
| Manipulator Positioning Repeatability | 0.001mm |
| Overall Height Offset | 60~110mm |
| Workstation PCB Thick (Max) | 5mm |
| Workstation PCB Loading/Unloading | Manual |
| Overall Weight | 650KG |
ChuangWei PCB Depaneling Machine is a renowned product of China with a remarkable CE certification. The product stands out because of its cutting precision of 0.1mm and it is available with a minimum order quantity of 1 Set. It is powered by a 2.0KW AC380V motor and manipulator motor type of JiaBao Series. The PCB Depaneling Router is highly reliable and efficient for PCB fixation in standard or specialized workstation. The price of the product is negotiable and it is delivered in a plywood case within 7 days of payment via T/T. The Supply Ability of the product is 20 sets per month.
PCB Depaneling Machine is a perfect choice for the customers looking for high precision and reliability. The CNC Router is equipped with a powerful motor and JiaBao Series manipulator motor that ensures accuracy and smooth performance. The product is highly suitable for the PCB fixation in both standard and specialized workstations. Moreover, the product is available in a minimum order quantity of 1 Set and is available at a negotiable price. The delivery of the product is made within 7 days of payment via T/T and the Supply Ability of the product is 20 sets per month.
ChuangWei PCB Depaneling Router Machine is the perfect choice for the customers seeking high accuracy and reliability. The product is equipped with a powerful 2.0KW AC380V motor and JiaBao Series manipulator motor that ensures smooth performance. The product has a cutting precision of 0.1mm which makes it highly suitable for PCB fixation in both standard and specialized workstations. The product is available in a minimum order quantity of 1 Set and is available at a negotiable price. The product is delivered in a plywood case within 7 days of payment via T/T and the Supply Ability of the product is 20 sets per month.
ChuangWei PCB Depaneling Machine is a specialized machine for printed circuit board router, PCB CNC router and PCB depaneling machine. It ensures precision and accuracy with cutting precision 0.1mm and positioning accuracy 0.01mm. It is CE certified, with a minimum order quantity of 1 Set. It comes with a supply ability of 20 sets per month and a delivery time of 7 days. The manipulator axis working area is 830mm*580mm*50mm, and the spindle is KAVO. Packaging Details is plywood case. Payment Terms is T/T and the Price is Negotiable.
PCB Depaneling Machine Technical Support and Service
We offer technical support and service for our PCB Depaneling Machines. Our team of experts is available to answer any questions you may have about the product, its features, and its operation. We provide troubleshooting assistance and guidance for potential issues, as well as advice on how to optimize the machine's performance. Our technical support staff is available to answer any inquiries you may have and to provide support and assistance with the product.
We also provide maintenance and repair services for our PCB Depaneling Machines. Our technicians can inspect, diagnose, and repair your machine, ensuring that it is running at optimal performance. We also offer preventative maintenance services to help keep your machine running smoothly and efficiently.
Our experienced staff is committed to providing prompt, professional, and knowledgeable technical support and service for our PCB Depaneling Machines. If you have any questions or need assistance, please contact us and we will be happy to assist you.
Packaging and Shipping of PCB Depaneling Machine:
The PCB Depaneling Machine will be securely packed in a cardboard box for safe transportation. The box should be filled with cushioning materials to prevent damage to the product. The box should also be sealed with packing tape to prevent the product from shifting during transportation. The box should be labeled with the product name and other relevant details of the product. The box should be sent to the customer with a reliable shipping service. The customer should be notified of the shipment and provided with tracking information so that they can follow the progress of the shipment.
