| Function Edit: | Line,arc,circula,U-curve | Manipulator Motor Type: | JiaBao Series |
|---|---|---|---|
| Workstation PCB Fixation: | Standard,specialization | Cutting Speed(max.): | 80mm/s |
| Manipulator Positioning Repeatability: | 0.001mm | Prodcut Name: | Printed Circuit Board Router |
| Overall Height Offset: | 60~110mm | Workstation PCB Thick (max): | 5mm |
| High Light: | 0.1mm PCB Depaneling Router,High Precision PCB Depaneling Router,5mm PCB Depaneling Router |
||

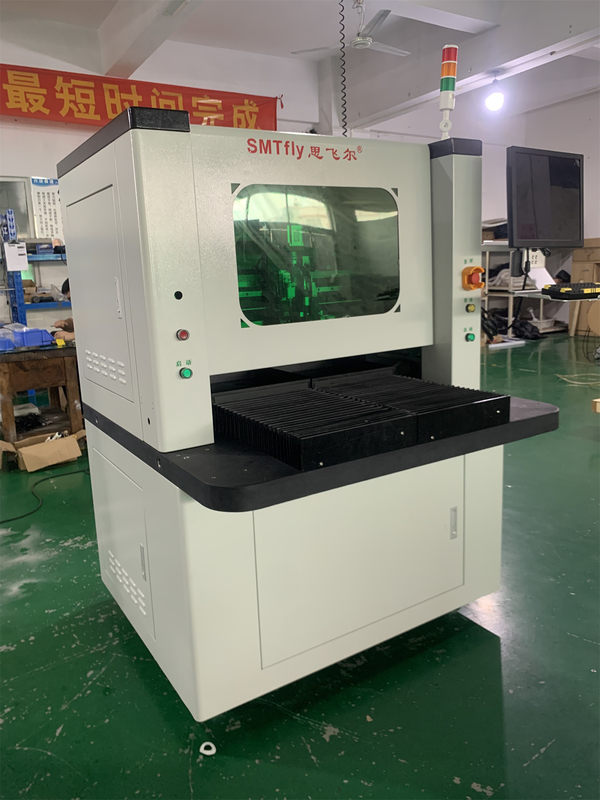

PCB Depaneling Router Machine is a professional machine for depaneling printed circuit boards (PCBs). It is a highly efficient machine with inline and offline programming modes. It has an overall dimension of 1370mm*1650mm*1450mm and the manipulator axis working area is up to 830mm*580mm*50mm. This machine can handle PCBs with thickness from 0.3mm to 3.5mm, and it can perform functions like line, arc, circular, and U-curve editing. It is a reliable and cost-effective PCB Router Machine, ideal for Printed Circuit Board Routers.
The X10 zoom-in image feature makes programming easier and increases the accuracy of point setting. Meanwhile, the two sliding tables provides simultaneous in-and-out movement which reduces the tack time for higher productivity. Further, the AUTO MARK offset system provides CCD images which check and simulates the path or routing to reduce mistakes in cutting.
Moreover, the machine comes with routing bit life time checking and alarm system which reminds the operator to change routing bits when it has finished 120M of cutting. The routing bit is designed in such a way so that the first 2mm cut the first miling point, the middle 2mm cut the second milling point and the last 2mm cut the third milling point, which increases the life time of the routing bit.
Lastly, the CCD image feature also checks and simulates the path or routing before cutting, further reducing unnecessary mistakes.
| Attribute | Value |
|---|---|
| Function | Line, arc, circular, U-curve |
| Overall Dimensions (W*D*H) | 1370mm*1650mm*1450mm |
| Product Name | Printed Circuit Board Router |
| Positioning Accuracy | 0.01mm |
| PCB Thickness | 0.3-3.5mm |
| Manipulator Positioning Repeatability | 0.001mm |
| Program Edit | Inline, Offline |
| Manipulator Motor Type | JiaBao Series |
| Feature | Has routing bit life time checking and alarm system to remind operator to change routing bits when it finish 120M cutting. And routing bit first 2mm cut the first milling point, middle 2mm cut the second milling point, the last 2mm cut the third milling point to increase its life time. |
| Workstation PCB Thick (max) | 5mm |
PCB Depaneling Router, also known as Printed Circuit Board Router Machine, is a reliable and precise cutting machine from China-based ChuangWei. It is CE certified and comes with a minimum order quantity of 1 set. This PCB Depaneling Machine offers an unbeatable price and is delivered within 7 days. With a supply capacity of 20 sets per month, it is the ideal choice for businesses and industrial production lines. The PCB Depaneling Router offers optimum performance with its standard and specialized Workstation PCB fixation. The PCB size is 320*320mm, with a maximum PCB thickness of 5mm. With a cutting Precision of 0.1mm, it is the perfect solution to achieve the highest quality results. The overall Dimensions of the PCB Depaneling Router is 1370mm*1650mm*1450mm, and it is packaged in a plywood case for protection and convenience. Payment terms are flexible and can be paid via T/T.
ChuangWei's PCB CNC Router, PCB Depaneling Router Machine and PCB Depaneling Router are perfect for your PCB depaneling needs. Our PCB depaneling machines have CE certification, a minimum order quantity of 1 set, and negotiable price. Delivery time is 7 days and payment terms are T/T. We can supply 20 sets per month. The Printed Circuit Board Router has routing bit life time checking and alarm system to remind operator to change routing bits when it finish 120M cutting. The routing bit first 2mm cut the first milling point, middle 2mm cut the second milling point, the last 2mm cut the third milling point to increase its life time. The workstation PCB size is max 320*320mm, spindle is KAVO, and cutting speed is max 80mm/s. All products will be packaged in a plywood case.
We are committed to providing reliable technical support and service for our customers who use our PCB Depaneling Machine. Our technical team is available 24/7 to assist with any issues you may have with the machine. We offer the following services:
If you need assistance with your PCB Depaneling Machine, please contact us. We are here to help!
Packaging and Shipping for PCB Depaneling Machine 1.The PCB Depaneling Machine will be packaged in a cardboard box with bubble wrap for protection. 2.The box will be labeled with the product name, model number, and serial number. 3.The box will be sealed with tape to prevent tampering. 4.The box will be shipped via an air freight service to ensure speedy delivery. 5.The shipping company will provide tracking information so that customers can monitor the progress of their shipment. 6.The customer will be responsible for any customs taxes or fees associated with the shipment.
