Product Details:
Payment & Shipping Terms:
|
| Prodcut Name: | Printed Circuit Board Router | Feature: | Has Routing Bit Life Time Checking And Alarm System To Remind Operator To Change Routing Bits When It Finish 120M Cutting. And Routing Bit First 2mm Cut The First Miling Point, Middle 2mm Cut The Second Milling Point, The Last 2mm Cut The Third Milling Poi |
|---|---|---|---|
| Workstation PCB Loading/unloading: | Manual | Workstation PCB Size (max): | 320*320mm |
| Name: | PCB Depaneling Machine,PCB Depaneling Router,PCB Depaneling Router Machine,PCB Router,PCB CNC Router | PCB Thickness: | 0.3-3.5mm |
| Overall Weight: | 650KG | Overall Dimensions(W*D*H): | 1370mm*1650mm*1450mm |
| High Light: | Manual Workstation PCB CNC Router,0.001mm PCB CNC Router,Manipulator Axis PCB Router |
||

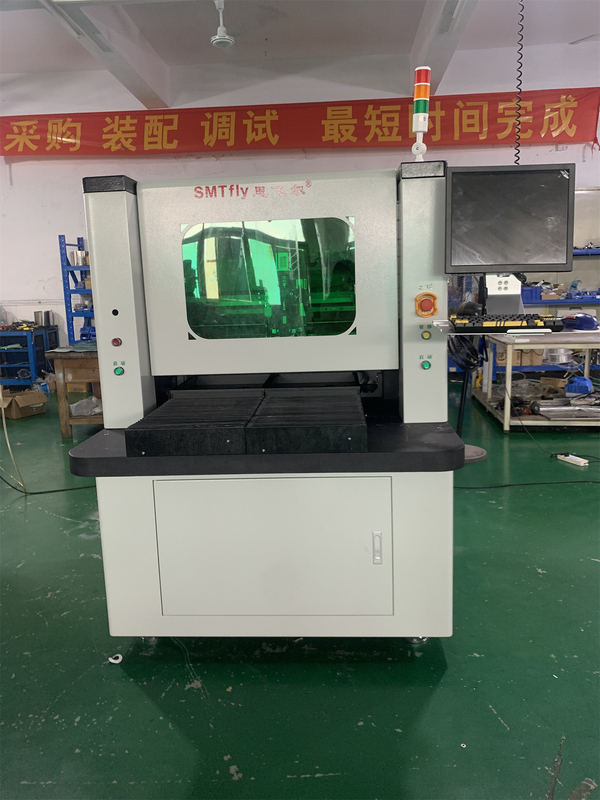

The PCB Depaneling Machine is a high-performance, CNC router which is specifically designed for cutting printed circuit boards. It provides precise and accurate positioning with an accuracy of 0.01mm, and features a routing bit life time checking and alarm system to remind the operator of when to change routing bits after 120m of cutting. It is also equipped with a unique routing bit system, which is designed to extend the life time of the bit by cutting the first 2mm from the first milling point, the middle 2mm from the second milling point, and the last 2mm from the third milling point. This machine offers manual loading and unloading of workstations, and can reach maximum cutting speeds of 80mm per second. Its overall height offset is adjustable from 60 to 110mm.
The X10 zoom-in image makes the programming process much easier and increases the accuracy of point setting.
In addition, two sliding tables are incorporated to enable simultaneous in-and-out movement thus drastically reducing tack time for higher productivity.
To cut down on mistakes during cutting, the AUTO MARK offset system and CCD image technology check and simulate the route before cutting, providing enhanced accuracy and reducing any unnecessary mistakes.
To prolong bit life, the router machine comes equipped with an alarm system to alert the operator when it finishes 120M cutting. Special cutting technology splits the Router bit into three parts, with the first 2mm cutting the first point, 2mm in the middle for the second and the last 2mm cutting the third to increase its life time.
| Name | Function |
|---|---|
| PCB Depaneling Machine | Line,arc,circula,U-curve |
| PCB Depaneling Router | Line,arc,circula,U-curve |
| PCB Depaneling Router Machine | Line,arc,circula,U-curve |
| PCB Router | Line,arc,circula,U-curve |
| PCB CNC Router | Line,arc,circula,U-curve |
| Name | Workstation PCB thick(max) | Workstation PCB size(max) | PCB Thickness | Cutting speed(max.) | Manipulator Motor type | Product Name | Overall Dimensions(W*D*H) | Power |
|---|---|---|---|---|---|---|---|---|
| PCB Depaneling Machine | 5mm | 320*320mm | 0.3-3.5mm | 80mm/s | JiaBao Series | Printed Circuit Board Router | 1370mm*1650mm*1450mm | 2.0KW AC380V |
| PCB Depaneling Router | 5mm | 320*320mm | 0.3-3.5mm | 80mm/s | JiaBao Series | Printed Circuit Board Router | 1370mm*1650mm*1450mm | 2.0KW AC380V |
| PCB Depaneling Router Machine | 5mm | 320*320mm | 0.3-3.5mm | 80mm/s | JiaBao Series | Printed Circuit Board Router | 1370mm*1650mm*1450mm | 2.0KW AC380V |
| PCB Router | 5mm | 320*320mm | 0.3-3.5mm | 80mm/s | JiaBao Series | Printed Circuit Board Router | 1370mm*1650mm*1450mm | 2.0KW AC380V |
| PCB CNC Router | 5mm | 320*320mm | 0.3-3.5mm | 80mm/s | JiaBao Series | Printed Circuit Board Router | 1370mm*1650mm*1450mm | 2.0KW AC380V |
Brand Name: ChuangWei
Place of Origin: China
Certification: CE
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: plywood case
Delivery Time: 7 days
Payment Terms: T/T
Supply Ability: 20 sets per month
Manipulator Motor type: JiaBao Series
Workstation PCB thick (max): 5mm
Program edit: Inline,offline
Spindle: KAVO
Feature: Has Routing Bit Life Time Checking And Alarm System To Remind Operator To Change Routing Bits When It Finish 120M Cutting. And Routing Bit First 2mm Cut The First Miling Point, Middle 2mm Cut The Second Milling Point, The Last 2mm Cut The Third Milling Point To Increase Its Life Time.
ChuangWei PCB Depaneling Router Machine is designed for printed circuit board cutting. It is widely used in PCB depaneling and routing. It is featured with high precision, fast speed and high efficiency. It is also equipped with routing bit life time checking and alarm system to remind operator to change routing bits when it finish 120M cutting. And routing bit first 2mm cut the first miling point, middle 2mm cut the second milling point, the last 2mm cut the third milling point to increase its life time. This PCB Depaneling Router Machine is highly praised by customers all over the world.
We provide technical support and services for our PCB Depaneling Machine. Our team of experts are available to help you get the most out of your machine and ensure the highest quality of cutting production.
If you have any questions or need any assistance, please don't hesitate to contact us. Our team is available to answer any of your questions and provide the best support possible.
The packaging and shipping of PCB Depaneling Machine is relatively simple. The package box is made of cardboard and is suitable for sea, air and land transportation. The package box is sealed with tape and placed in a wooden box for additional protection. The wooden box will also be sealed with tape. The wooden box will be labeled with the product name and model number.
