Product Details:
Payment & Shipping Terms:
|
| Cutting Thickn: | 0.3-3.5mm | Cutting Speed: | Due To Operator Skill Level |
|---|---|---|---|
| Warranty: | Free For One Year | Certification: | CE ISO |
| Type: | Pneumatic | Power: | 110/220V |
| High Light: | pcb depaneling equipment,pcb laser cutting machine |
||

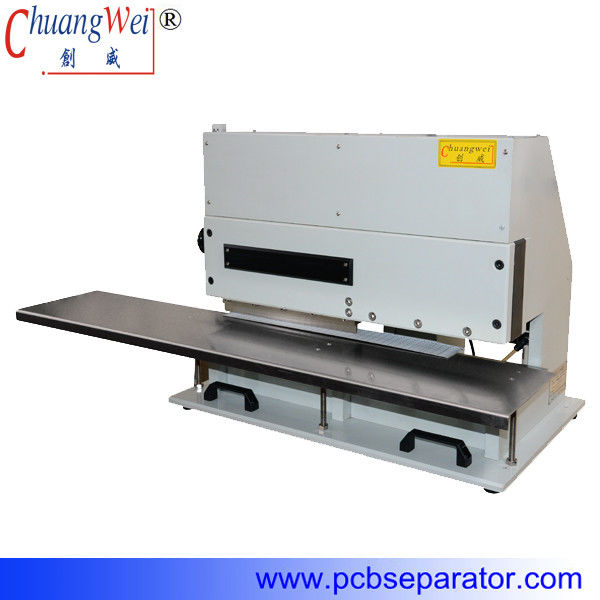

Electric PCB Depaneling Machine For FR4 / Aluminium Substrate CWVC-3
The most professional PCB shearing machine manufacturer in China.
V-CUT PCB shearing machine
1.Max. PCB shearing length is unlimted
2.Shearing PCB without bending and tension stress
3.Safety use, easy operation
4.Shearing process without vibrations
V-CUT PCB shearing machine features:
1.The machine was designed to shear pre-scored PCB carefully, without bending and tension stress.
2.Even sensitive SMD-Components like ceramic capacitors, will not be damaged by the shearing process, or thin board even to 0.3mm can be worked safely.
3.Shearing process without vibrations.
4.PCB shearing control method is by pneumatic-driven and electromagnetic valve.
5.PCB control operation is that operator stamps the foot pedal to shear PCB.
6.Highest components near the v groove of PCB can be up to 50mm.
7.Gap for insertion of PCB can be easy to adjust.
V-CUT PCB shearing machine specifications:
| Model | CWVC-3 |
| Max. PCB shearing length | unlimited |
| PCB shearing thickness | 0.3-3.5mm |
| Voltage and Power | 110V/220V -- 10W |
| Working air pressure | 0.5-0.7Mpa |
| PCB shearing speed | due to operator skilled level |
| PCB shearing machine size | 780x500x620mm |
| PCB shearing machine weight | 185Kg |
Why us
Engineers are available to be sent to freign countries to do machinery training and offer technical support
|
As largest manufactory in South China, we have 12 years experience on PCB separator machines and soldering machines. pcb router Our R&D team continuously upgrade the existing machines to meet the market development trend.
|
Robust frame construction and Japanese steel blades obtained good appraise and recognized by and oversea clients. We offer parts for replacement under warranty free of charge, clients only need to bear freight charge
|
All of us together are stronger and wiser than any one of us individually. To succeed, we must assume responsibility, cooperate with fellow associates and withdepartments, effectively comminicate with one another, foster enthusiam and participate in decision-making. To be seay reachable by customers and provide prompt replies to solve their problems and create value for customers
|
|
Our mission Ongoing PCB industry PCB separator technological innovation, to create greater value, allowing customers to success
|
|
Our Vision: Ongoing PCB industry PCB separator technological innovation, to create greater value, allowing customers to success
|
