Detailed Product Description
Double Welding Head Design: Applicable To Double-sided Welding Products Touch Screen Programming: Easy To Understand And Program
Work Stage: Left And Right Automatic Push And Pull Welding Time: 1-99.9S(Depends On Products)
Welding Precision: Pitch 0.2mm Start Mode: Pressed By Hands
Power Supply: AC220V±10%50HZ.2000W
High Light:

pcb welding machine

,

bonding machine

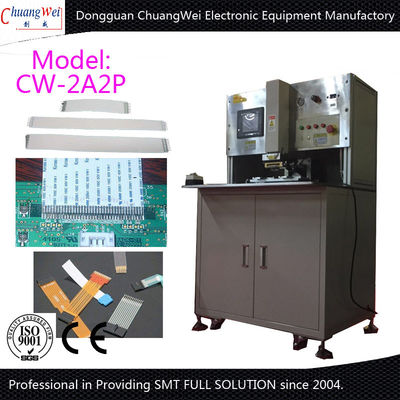

FFC FPC to PCB Bonding Machine HSC WelidingMachine,CW-2A2P Working Picture:



     Customized White Solder Fpc Ffc Soldering with Welding Head Size M Metal 100*3mm Hotbar Bonder for HSC 0    Customized White Solder Fpc Ffc Soldering with Welding Head Size M Metal 100*3mm Hotbar Bonder for HSC 1



FFC FPC to PCB Bonding Machine HSC WelidingMachine,CW-2A2P Simple introduction:



This device is designed for double - deck working mode of double welding head. The equipment adopts high density metal material, so the lifting temperature is fast and the service life is special. The equipment operation is easy to understand. It is special in welding connector and wire with single side and double sides.



FFC FPC to PCB Bonding Machine HSC WelidingMachine,CW-2A2P Specification:



1. Customized based on the connector,

2. Double jig welding,

3. Double- desk working mode,

4. Can achieve ultra-fine pitch welding,

5.Applicable to welding the cable and connection of communicating machine.

NO. Subject Parameters
1 Machine size L850×W650×H1320mm
2 Working size Max150x150mm
3 weight 98KG
4 working air pressure 0.5~0.80 Mpa
5 power supply AC220V±10%50HZ.2000W
6 Lifting temperature setting Five section
7 work environment 10~60℃,40%~95%
Customized White Solder Fpc Ffc Soldering with Welding Head Size M Metal 100*3mm Hotbar Bonder for HSC 2 8 Welding pressure 4~50N
9 Welding pressure error ±1N
10 Temperature setting RT∽500℃,±2℃
11 Heating rate 250℃/s
12 Welding time 1-99.9S
13 welding precision Pitch 0.2mm
14 Welding head size(Mmetal) Max 50*3mm
15 Welding head size(T metal) Max 100*3mm
16 Welding head flatness ±0.02mm
17 Pin distance range >0.2mm
18 Alignment mode Artificial alignment
19 Positioning fixture 2
20 Way of discharge Artificial pick and place
21 Start mode Pressed by hands
22 Heatingmethod Pulse heating, the rise timeis 1 ~ 2S
23 Work Stage Left and right automatic push and pull
24 Platform control Precision motor control, error <0.02mm



FFC FPC to PCB Boding Machine HSC Welding Equipment,CW-2A2P Function Module:



【Double welding head design】

Applicable to double-sided welding products



【Left and right platform design】

In the production, It weld with left and right cycle, saving time and improving efficiency

【The upper and lower welding heads are driven by the motor】

Up and down position is precise, the same accuracy when it repeats



【The left and right platform is driven by motor】

Left and right position is precise, the same accuracy when it repeats



【Touch screen programming】

Easy to understand and program, we can enter data location directly



Customized White Solder Fpc Ffc Soldering with Welding Head Size M Metal 100*3mm Hotbar Bonder for HSC 3
Customized White Solder Fpc Ffc Soldering with Welding Head Size M Metal 100*3mm Hotbar Bonder for HSC 4
Customized White Solder Fpc Ffc Soldering with Welding Head Size M Metal 100*3mm Hotbar Bonder for HSC 5
Customized White Solder Fpc Ffc Soldering with Welding Head Size M Metal 100*3mm Hotbar Bonder for HSC 6
