PCB Separator PCB Routing Machine With High Cutting Precision

China PCB Separator PCB Routing Machine With High Cutting Precision supplier
PCB Separator PCB Routing Machine With High Cutting Precision supplier PCB Separator PCB Routing Machine With High Cutting Precision supplier

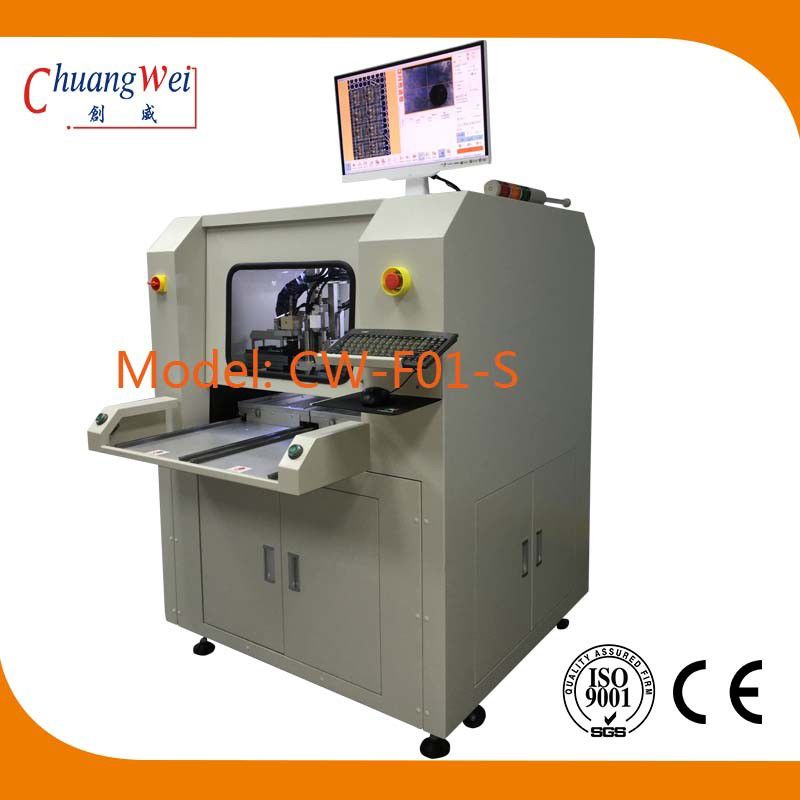

Large Image :  PCB Separator PCB Routing Machine With High Cutting Precision

Product Details:

Place of Origin: China
Brand Name: ChuangWei
Certification: CE
Model Number: CW-F01-S

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: plywood case
Delivery Time: 7 days
Payment Terms: T/T
Supply Ability: 20 sets per month
Contact Now
Detailed Product Description
Place Of Origin: China Weight: 600kgs
PCB Thickness: 0.3-3.5mm Spindle: Morning Star
Cutting Precision: 0.1mm Positioning Accuracy: 0.01
Warranty: 1 Year Service: Oversea Training
Description: PCB Routing Machine

 PCB Separator Manufacturer PCB Routing Machine with High Cutting Precision



1. Parts List



I. Hardware
SPINDLE Morning Star spindle
CCD Sony 520 line industrial cameras
LENS Computar EX2C
Screw TBI Precision ground ball screw imports
Guide HIWIN widening Imported linear guide rail
MOTOR JiaBao LCF Series
I/O CONTRONL CARD HFC PCI-9074
DRIVER CONTRONL CARD HFC PCI-9074
I/O CARD PCI-9074-64pcs/-38pcs
Static cleanup STATIC-ST401A Series
Computer (RMC-8401/6113LP4/300ATX/8651VNA/P4 2.8G 2CPU(S)/1G DDR/80G)
Machine interface AOC LCD17",Logitech mouse
2. software
Control system Windows XP Professional (Service3,v.3244)
Operation GUI English Windows XP
Program edit Inline
Vision system CCD AOTU offset
Control system F 1.2.88 version


2. Parameters

Overall
Dimensions(W*D*H) 1370mm*1650mm*1450mm
Weight 650KG
Height offset 60~110mm
Manipulator
Motor type JiaBao series
Positioning repeatability 0.001mm
Axis working area(max) 830mm*580mm*50mm
Work station
PCB fixation standard,specialization
PCB loading/unloading manual
PCB size (max) 420*360mm
PCB thick (max) 5mm
Fixturing
Rigidity fixturing Use client fixture
Fixturing fixation machinery
Spindle Motor
Power 150W
Spindle 60000rpm/min
Protect self/wind cooling
Change cutter Specialization
Routing capability
Cutting speed(max.) 80mm/s
Driving speed(max.) 2500mm/s
Precision of cutting 0.01mm
Vacuum System
Vacuum power 3.5KW AC 380V
Vacuum plumb
Utilities
Power 2.0KW AC380V
Air supply 4-6KG/cm2
Programming
Program edit Inline
Function edit Line,arc,circula,U-curve
Program storage HDD
Vision system SONE colour CCD
milling cutter offset AUTO
Vacuum setup AUTO
Operation Monitors
Iindicator Iindicator Machine state
tool check Automatic detection tool life, the use of time testing
Motor protect Have overheating, overload, low voltage protection function
motor over loading check Have Overload, the line is normal, low voltage protection function
Tool usable time Automatic detection tool life,
Data statistic Separate board model, separating count, diverse counting methods
Error record Software automatically records all alarms memory of machines
III. Accuracy
Axis precision 0.001mm
Cutting precision 0.1mm
IV. Safety
Working area protect With four sealed protection
Door sensor Front and rear safety door micro-switch sensor (optional)
Exigency stop button


3. Photos:


PCB Separator PCB Routing Machine With High Cutting Precision



4. Feature:



1. Using double slide into place device, reduce the cutting waiting times, increase production capacity.

2. Avoid artificial flap caused by the cracking of tin and part damage and other issues.

3. Avoid using blunt or fold, produced by mechanical stress.

4. Suitable for the finished plate arc and line cutting.

5. Suitable for small pieces of the final cutting, base plate of a mobile phone, PDA, PC interface card and so on.
