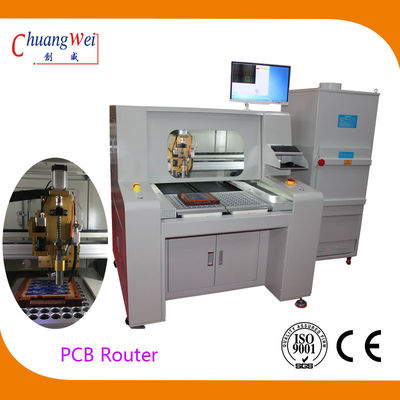

PCB Depaneling Router Two Work Tables PCB Depanelizer Machine

PCB Depaneling Router Two Work Tables PCB Depanelizer Machine
PCB Depaneling Router Two Work Tables PCB Depanelizer Machine

Large Image :  PCB Depaneling Router Two Work Tables PCB Depanelizer Machine

Product Details:

Place of Origin: Dongguang China
Brand Name: chuangwei
Certification: CE ISO
Model Number: CW-F04

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: each set be packed in carton boxes
Delivery Time: 1-3 days after payment confirm
Payment Terms: T/T, L/C,paypal
Supply Ability: 300 sets per month
Contact Now
Detailed Product Description
Color: White Vacuum Cleaner: Upper Or Lower(optional)
Routing Bit: 0.8/1.2/1.5/1.8/2.0mm PCB Size: 450*350mm
PCB Material: FR1, FR4, MCPCB Description: PCB Router
High Light:

1.2mm PCB Router

,

Stress Free PCB Depanelizer

,

Two Work Tables PCB Depanelizer

Stress Free Depanelization PCB Router with Automatic Alignment Compensation,CW-F04 Key Features

  • Solution for stress free depanelization
  • Fixture-based highly efficient dust vacuum system
  • Clean and precise depanelization for densely populated PCBs
  • Advanced image-processing software offers point-and-click operation for programming router paths
  • Automatic alignment compensation by CCD camera
  • User-friendly operation
  • Extended bit life by automatic router bit depth adjustment
  • Improved tact time
  • Low maintenance required
  • Reasonable price
  • Calibration free linear robot

PCB Depaneling Router Two Work Tables PCB Depanelizer Machine 0

Specification:


Model CW-F04
Standard working area 450*350mm
Power 220V, 4.2KW
Manipulator Repeatability ±0.02mm
Resolution ±0.01mm
Board Positioning Dual workstation with nest fixture or pin fixture
Panel Location Located by tooling holes or edges of PCB
Loading Manual
Unloading Manual
Panel Size 450*350mm
Panel Thickness 0.5-3.5mm
Spindle motor 0.5kW Morning Star Spindle
Tool Change Manual
Dust filtration system 3KW Vacuum Cleaner
Vision system High resolution CCD video camera
Programming Vision assisted point to point manual teaching
Editing Function Dry run vision assisted / test run mode
Machine weight 500kgs
Machine dimension 113*140*108cm
