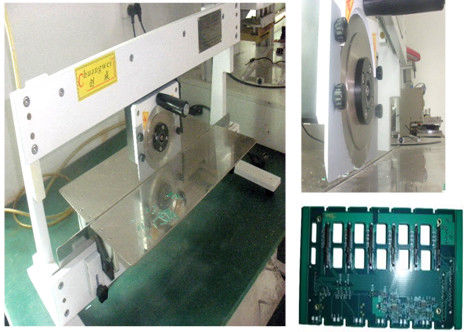

Linear Circular Blades Pcb Depaneling Equipment Manual Driven

China Linear Circular Blades Pcb Depaneling Equipment Manual Driven supplier

Large Image :  Linear Circular Blades Pcb Depaneling Equipment Manual Driven

Product Details:

Place of Origin: Dongguang china
Brand Name: chuangwei
Certification: CE ISO9001
Model Number: CWV-1M

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: plywood case
Delivery Time: 1-3 days after payment confirm
Payment Terms: T/T, L/C, Western Union,paypal
Supply Ability: 300 sets/month
Contact Now
Detailed Product Description
Blade Material: Use Japanese High Speed Steel Depaneling Speed: Based On Operator Skill Level
Power: 110/220V Blades: Linear And Round
Type: Manual Driven Warranty: One Year Free



Linear Circular Blades Pcb Depaneling Equipment Manual Driven





Specification:



Model

CWV-1M460

Max. PCB singulation length

460mm

PCB  singulation  Thickness

0.6-3.5mm

PCB  singulation speed control

by hand

PCB  singulation machine size

787x400x436mm

PCB  singulation machine weight

30Kg



Model

CWV-1M720

Max. PCB  singulation length

720mm

PCB singulation  thickness

0.6-3.5mm

PCB  singulation speed control

by hand

PCB  singulation machine  size

1027x400x436mm

PCB  singulation machine  weight

45kg





Linear Circular Blades Pcb Depaneling Equipment Manual Driven





Feature:



1. Round knife, manually cutting against lower linear knife, for reduced stress

2. Separate pre-scored PCB assembly without stress on either PCB or component

3. One touch programming of cut length with digital display

4. Separating speed is adjusted by a rotary knob

5. Handle Intermittent scoring or cut-outs

6. Board with projected component can be cut precisely

7. Large stainless steel platform on both side of cutting blade prevents board wobble and table height and angle are adjustable

8. Optional PCB conveyor belt to remove finished board

9. Clearance between circular and linear blades are adjustable to fit different groove depth and compensates for blade wear out



Competitive advantage:



1. CWV-1M Pcb depanelizer original manufacturers, price concessions

2. Day technical support services

3. Limit the handling of complaints, half an hour back to customers

4. Depanel Experts, the provision of professional PCB sub-programme
