Product Details:
Payment & Shipping Terms:
|
| Overall Height Offset: | 60~110mm | Overall Dimensions(W*D*H): | 1370mm*1650mm*1450mm |
|---|---|---|---|
| Spindle: | KAVO | Workstation PCB Fixation: | Standard,specialization |
| Positioning Accuracy: | 0.01mm | Manipulator Positioning Repeatability: | 0.001mm |
| Workstation PCB Loading/unloading: | Manual | Program Edit: | Inline,offline |
| High Light: | High precision PCB Depanelizer,PCB Depanelizer with Manipulator Axis,Large Manipulator PCB Depaneling Machine |
||

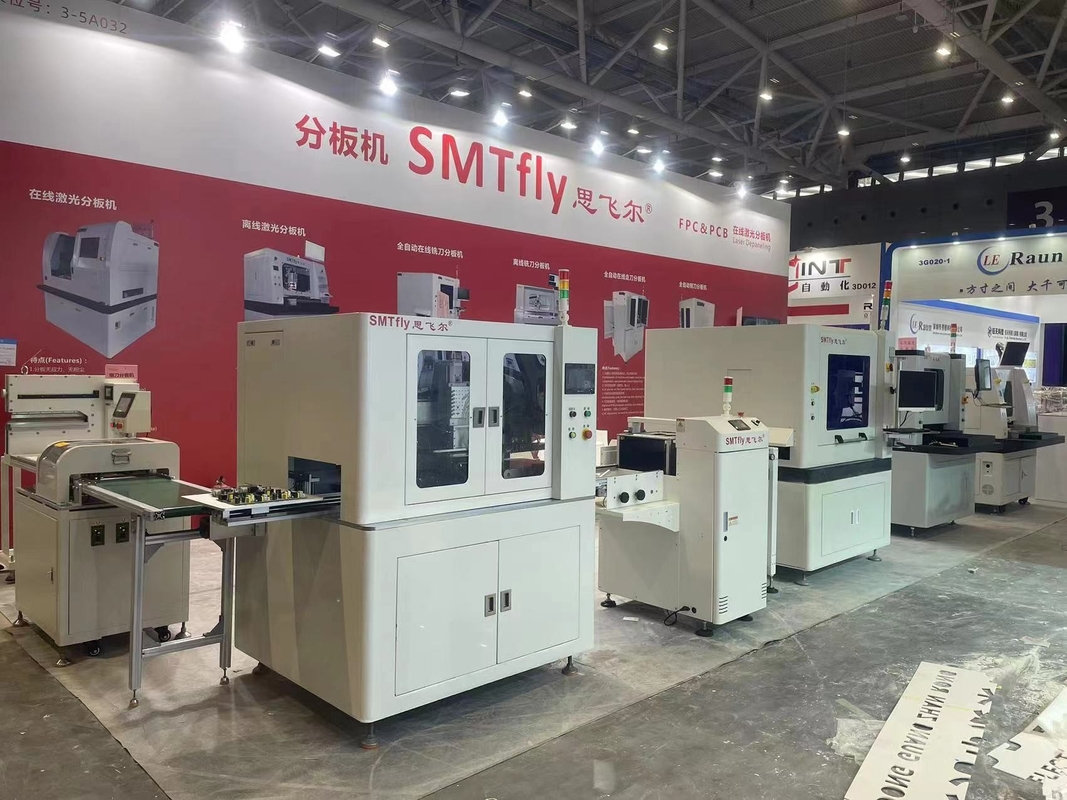

The PCB Depaneling Machine, also known as PCB Depaneling Router, PCB Depaneling Router Machine, PCB Router, or PCB CNC Router, is a cutting-edge device specifically designed for separating Printed Circuit Boards (PCB). With its advanced technology and excellent features, this machine offers an efficient and precise solution for PCB separation.
The PCB Depaneling Machine is a must-have equipment for any PCB manufacturing facility. It is designed to separate PCBs from a larger panel, allowing for easy and efficient handling of individual circuit boards. This machine is suitable for PCBs with a thickness range of 0.3-3.5mm, making it versatile and adaptable to various PCB sizes and types.
The PCB Depaneling Machine is an essential tool for any PCB manufacturing facility. Its advanced features, precise cutting, and efficient performance make it an ideal choice for separating PCBs from larger panels. With this machine, you can save time, increase productivity, and produce high-quality PCBs. So, if you want to streamline your PCB separation process, the PCB Depaneling Machine is the perfect solution for you.
| PCB Milling Cutter Machine | PCB Depaneling Router Machine |
|---|---|
| Workstation | Manipulator Axis working area(max): 830mm*580mm*50mm |
| PCB thick (max) | 5mm |
| PCB Thickness | 0.3-3.5mm |
| Program edit | Inline,offline |
| Overall Weight | 650KG |
| Spindle | KAVO |
| Feature | Has Routing Bit Life Time Checking And Alarm System To Remind Operator To Change Routing Bits When It Finish 120M Cutting. And Routing Bit First 2mm Cut The First Miling Point, Middle 2mm Cut The Second Milling Point, The Last 2mm Cut The Third Milling Point To Increase Its Life Time. |
| Function edit | Line,arc,circular,U-curve |
| Cutting speed (max.) | 80mm/s |
| Positioning Accuracy | 0.01mm |
The PCB Depaneling Machine, also known as Printed Circuit Board Router, is a revolutionary product designed and developed by ChuangWei in China. With CE certification, this machine is highly efficient and precise in cutting PCBs, making it a preferred choice for manufacturers worldwide.
Whether it's a small-scale production or a large-scale assembly line, this machine can be used in various industries such as electronics, automotive, aerospace, medical, and more. It is suitable for cutting PCBs of different materials, shapes, and sizes, making it a versatile and essential tool in any manufacturing process.
The machine can be used in a variety of scenarios, such as PCB assembly factories, research and development centers, and prototype production units. Its compact size and easy operation make it a perfect fit for any workspace.
This PCB Depaneling Machine is equipped with advanced technology and features that make it stand out in the market. Its precision cutting and high efficiency are unparalleled, making it a must-have for any manufacturing process. With a durable and sturdy design, it ensures long-lasting operation and requires minimal maintenance.
The machine is also equipped with a routing bit life time checking and alarm system, which reminds the operator to change routing bits after every 120 meters of cutting. This increases the life span of the routing bits and reduces downtime, resulting in cost savings for the manufacturer.
Moreover, the routing bit is designed to cut the first, second, and third milling points in intervals of 2mm, further increasing its life time. This feature, combined with its safety measures, makes it an ideal choice for any production line.
The PCB Depaneling Machine by ChuangWei is not just a product; it's a game-changer in the world of PCB cutting. Its advanced technology, easy operation, and safe operation make it a valuable asset for any business. Invest in this machine today and experience a new level of efficiency and precision in your production process.
Brand Name: ChuangWei
Place of Origin: China
Certification: CE
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: plywood case
Delivery Time: 7 days
Payment Terms: T/T
Supply Ability: 20 sets per month
Overall Dimensions(W*D*H): 1370mm*1650mm*1450mm
Function edit: Line,arc,circular,U-curve
Cutting speed(max.): 80mm/s
PCB Thickness: 0.3-3.5mm
Overall Height offset: 60~110mm
Key Words: PCB Depaneling Machine, PCB CNC Router Machine, Printed Circuit Board Router, PCB Separator, PCB Cutting Machine
The PCB Depaneling Machine will be packaged in a sturdy cardboard box with foam padding to protect it during shipping. The dimensions of the box will be tailored to fit the machine and prevent any movement within the box. The box will also be marked with fragile labels to ensure careful handling during transit.
Inside the box, the machine will be securely wrapped in bubble wrap and surrounded by additional foam padding to provide extra protection against any potential impact or vibration during shipping.
The box will also include an instruction manual, power cord, and any necessary accessories or tools for assembly and operation.
For shipping, we will use a reputable courier service to ensure safe and timely delivery. The machine will be shipped in accordance with the customer's preferred shipping method and any special requests will be accommodated to the best of our ability.
Upon receiving the machine, the customer is advised to carefully inspect the packaging for any signs of damage. In the unlikely event of any damage during shipping, please contact our customer service team immediately for assistance.
A: The brand name of this product is ChuangWei.
A: This product is manufactured in China.
A: Yes, this product is CE certified.
A: The minimum order quantity for this product is 1 set.
A: Yes, the price for this product is negotiable.
A: This product is packaged in plywood cases.
A: The delivery time for this product is 7 days.
A: The payment terms for this product are T/T (Telegraphic Transfer).
A: The supply ability for this product is 20 sets per month.
Contact Person: Mr. Alan
Tel: 86-13922521978
Fax: 86-769-82784046
