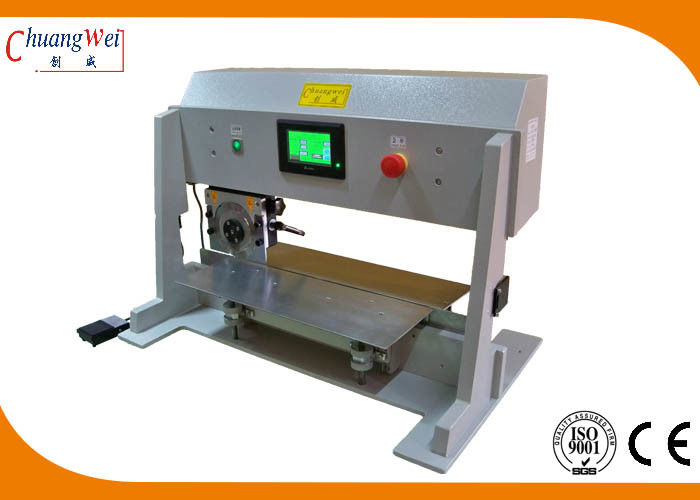

Optional Speed PCB Depaneling Machine With Lcd Display And Safe Sensor

Optional Speed PCB Depaneling Machine With Lcd Display And Safe Sensor
Optional Speed PCB Depaneling Machine With Lcd Display And Safe Sensor Optional Speed PCB Depaneling Machine With Lcd Display And Safe Sensor Optional Speed PCB Depaneling Machine With Lcd Display And Safe Sensor

Large Image :  Optional Speed PCB Depaneling Machine With Lcd Display And Safe Sensor

Product Details:

Place of Origin: China
Brand Name: Chuangwei PCB Shearing Machine
Certification: CE certificate
Model Number: CWV-1A PCB Shearing Machine

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: plywood case
Delivery Time: 3 work days after receive the payment
Payment Terms: T/T, Western Union, L/C, MoneyGram
Supply Ability: 800 sets / year
Detailed Product Description
Material For The Blades: High Speed Steel Cutting Length: 460 Mm
Certificate: CE Certificate And GMC Shipping Way: Option
Warranty: Free For One Year System: Electronic Autmatic Type
High Light:

pcb laser cutting machine

,

laser pcb depaneling machine

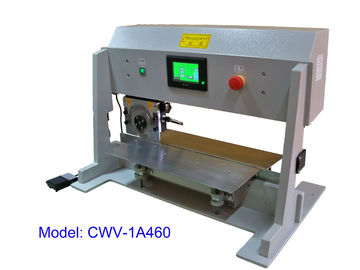

Four Optional Speed PCB Depaneling Machine With Lcd Display And Safe Sensor CWV-1A460

pcb separator specification :



Pcb Separation Machine size 77*51*45CM
Max. pcb cutting length 460mm
cutting speed 100/200/300/500mm/s
cutting thickness 0.6-3.5mm
Pcb Separation Machine weight 90 kg



Optional Speed PCB Depaneling Machine With Lcd Display And Safe Sensor 0



Pcb Separator Features CWV-1A460.pdf :



After soldering the plate of connecting pieces , it often hurts lines or breaks the electronic parts when breaking . This machine cuts with feed mode to reduce stress drastically , prevent the solder joint and parts from cracking and improve the productivity and quality .

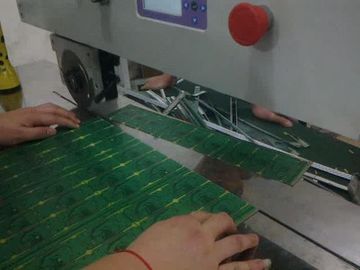

With circle knife above and anvil blade below , when the board flow to the anvil blade , shift the switch , and the anvil blade move laterally tto he set point , then the PCB board is cut off with smooth incision and no burrs .
The forward and stop point can be set according to the plate length when feeding , the stop point for artificial setting .
The tailgate depth range : unlimited . The largest plate cutting width : unlimited , the maximum cutting length : 500mm , the plate thickness : 0.2-5.0mm . The  thickness between V groove : 0.25-2.0mm .
The upper and lower knives is made of imported high-speed steel material , which are durable and can be regrinded .
The machine can be in supporting use of a complete set of conveyor belt , which is convenient for the cut PCB to be send out automatically .
The feed distance of the knife wheel is from 0 to 500mm ( the tool length can be customized ) . The height of the knife wheel is fine-tuning from 0 to 2mm so that it is suitable for PCB of various kinds of thickness and the depth of V-CUT  groove . The height of work station is regulable from 0 to 50mm .

The accumulated cutting performance is displayed for the purpose of scheduling preventive maintenance of the blade .



Why us



1.Engineers available to service machinery oversea.

Engineers are available to be sent to freign countries to do machinery training and offer technical support.


2.Mature technique & forerunner to process makes high quality machinery.


As largest manufactory in South China, we have 12 years experience on PCB separator machines and soldering machines. pcb router machine


Our R&D team continuously upgrade the existing machines to meet the market development trend.


3.Effective customer service. pcb router machine


All of us together are stronger and wiser than any one of us individually. To succeed, we must assume responsibility, cooperate with fellow associates and withdepartments, effectively comminicate with one another, foster enthusiam and participate in decision-making. To be seay reachable by customers and provide prompt replies to solve their problems and create value for customers.


4.One year warranty for the machines except accessories. b router machine


Robust frame construction and Japanese steel blades obtained good appraise and recognized by and oversea clients. We offer parts for replacement under warranty free of charge, clients only need to bear freight charge.


Our mission:


Ongoing PCB industry PCB separator technological innovation, to create greater value, allowing customers to success


Our Vision:


PCB industry to become the world's leading solution providers PCB separator. pcb router machine




CE Approval



Optional Speed PCB Depaneling Machine With Lcd Display And Safe Sensor 1
