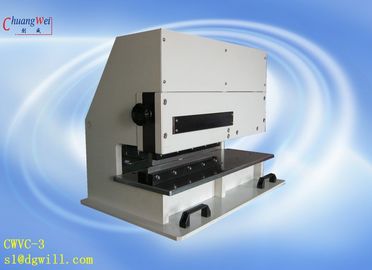

Guillotine Type Pcb Router Cutting Machine Without Microstrees

Guillotine Type Pcb Router Cutting Machine Without Microstrees

Large Image :  Guillotine Type Pcb Router Cutting Machine Without Microstrees

Product Details:

Place of Origin: China
Brand Name: Chuangwei pcb separation
Certification: Ce certificate
Model Number: CWVC-3 pcb separation

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: plywood case
Delivery Time: 3-5 work days
Payment Terms: Western Union, T/T, L/C, Western Union
Supply Ability: 80 sets / month
Detailed Product Description
Blades Material: High Speed Steel Cutting Length: Unlimited
Blades Type: Two Linear Blades Type: Pneumatic Driven
Warranty: 1 Year Shipping Way: FOB / EXW
High Light:

pcb cutter

,

depaneling machine

Guillotine Type Pcb Router Cutting Machine Without Microstrees





Specification :



Model     CWVC-3
The Longest Minimize:    unlimited
 Machine Size:  780mmx500mmx620mm
Minimize thickness:  0.3-3.5mm
Machine Weight:  185Kg
Blades length   356 mm





Advantages:


1. The cutting rate is one segmentation for one second, controlled by pneumatic pedal switch.
2. The starting of the cutting set is for passive, so that the cutting tangent and position is under secure control. With little stress when cutting, there will no solder crack.
3. With cutting of nonroller (circular knife, straight knife ) type, there is no dust, no motor drive, and no carbon powder pollution.
4. With no-rubbing type cutting, there is no metal residue.
5. The blade can be used 600000/times without power supply, avoiding the loss and change of electrical products.
6. The machine uses 5-7kg air compressor without specific cutting place, and it is maintained by wiping its appearance with the anti-rust oil .




Features :


1 . Separates boards up to 3.5mm thick
2 . Shears boards safely with parts as close as 0.5mm to the
 score line,including ceramic capacitors
3 . Operator foolproof! Panels cannot be inserted into the
 knives except on the score line
4 . Handles high components up to70mm
5 . Bow waves that can occur with round knives are avoided
6 . Easy adjusting of distance between knives
