Automatic Board Separating PCB Depaneling Equipment CE Approved

China Automatic Board Separating PCB Depaneling Equipment CE Approved supplier

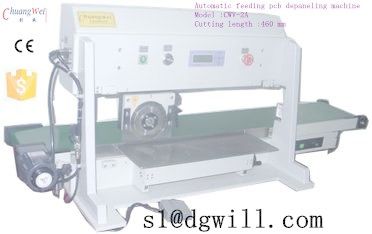

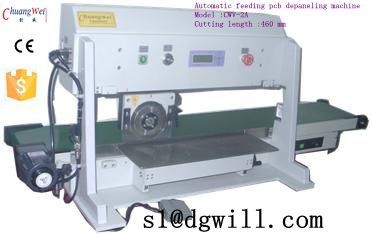

Large Image :  Automatic Board Separating PCB Depaneling Equipment CE Approved

Product Details:

Place of Origin: China
Brand Name: Chuangwei
Certification: Ce Certificate
Model Number: CWV-2A

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: plywood case
Delivery Time: 3-5 days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 80 sets / month
Contact Now
Detailed Product Description
Shpping Way: FOB / EXW Warranty: Free For One Year
Material: High Speed Steel Use: Cutting Fr4 ,PCBA, Led Alum Board,etc
System: Automatic Type Cutting Length: 460mm

Automatic Board Separating PCB Depaneling Equipment CE Approved





pcb separating specification :



pcb separating machine size 880mm X 460mm X 560mm
pcb cutting length 460 mm
pcb separating machine weight 185 kg
pcb cutting thickness 0.6-3.5 mm
pcb cutting speed 100 / 200 / 300 / 500 mm /s





Features :



1 . Separate pre-scored PCB assembly without stress on either PCB or component
2. One touch programming of cut length with digital display
3. Separating speed is adjusted by a rotary knob
4. Handle Intermittent scoring or cut-outs
5 . Board with projected component can be cut precisely
6. Large stainless steel platform on both side of cutting lade prevents board wobble and table height and
 angle are adjustable
7 . Optional PCB conveyor belt to remove finished board
8. Clearance between circular and linear blades are adjustable to fit different groove depth and compensates for blade wear out
9. three eletric eye
