Product Details:
Payment & Shipping Terms:
|
| Cutting Speed(max.): | 80mm/s | Overall Weight: | 650KG |
|---|---|---|---|
| Workstation PCB Size (max): | 320*320mm | Workstation PCB Thick (max): | 5mm |
| Overall Dimensions(W*D*H): | 1370mm*1650mm*1450mm | Feature: | Has Routing Bit Life Time Checking And Alarm System To Remind Operator To Change Routing Bits When It Finish 120M Cutting. And Routing Bit First 2mm Cut The First Miling Point, Middle 2mm Cut The Second Milling Point, The Last 2mm Cut The Third Milling Poi |
| Overall Height Offset: | 60~110mm | Name: | PCB Depaneling Machine,PCB Depaneling Router,PCB Depaneling Router Machine,PCB Router,PCB CNC Router |
| High Light: | AC380V PCB Depaneling Machine,U-curve PCB Depaneling Machine,PCB Depaneling Machine 2.0KW |
||

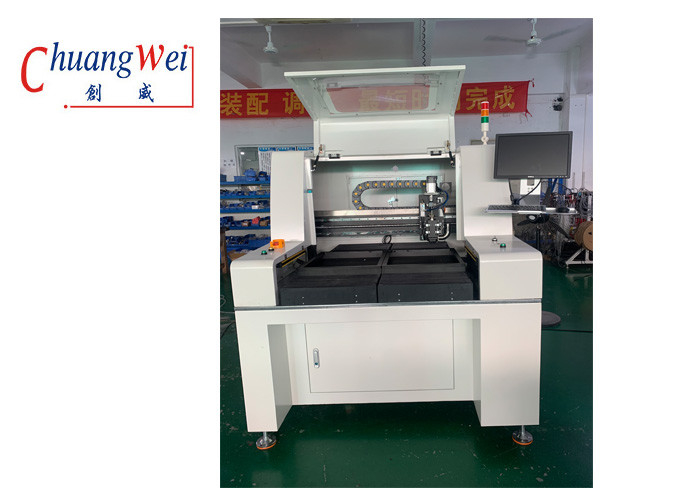

The PCB Depaneling Machine is an efficient and precise CNC Router designed for automated PCB depaneling. It is equipped with a powerful and high-speed spindle motor and a special milling cutter for quick and accurate cutting. The workstation allows for standard and specialized PCB fixation, with a maximum cutting speed of 80mm/s and a maximum PCB size of 320x320mm. The overall weight of the PCB Depaneling Router is 650KG, making it a reliable and durable piece of machinery. The machine is also commonly referred to as the PCB Depaneling Router, PCB Router or PCB Milling Cutter Machine. The PCB Depaneling Machine is the perfect solution for your electronic depaneling needs.
| Parameter | Description |
|---|---|
| Workstation PCB loading/unloading | Manual |
| Overall Dimensions(W*D*H) | 1370mm*1650mm*1450mm |
| Positioning Accuracy | 0.01mm |
| Manipulator Axis working area(max) | 830mm*580mm*50mm |
| Feature | Has Routing Bit Life Time Checking And Alarm System To Remind Operator To Change Routing Bits When It Finish 120M Cutting. And Routing Bit First 2mm Cut The First Miling Point, Middle 2mm Cut The Second Milling Point, The Last 2mm Cut The Third Milling Point To Increase Its Life Time. |
| Name | PCB Depaneling Machine, PCB Depaneling Router, PCB Depaneling Router Machine, PCB Router, PCB CNC Router |
| PCB Thickness | 0.3-3.5mm |
| Overall Weight | 650KG |
| Function edit | Line,arc,circula,U-curve |
| Overall Height offset | 60~110mm |
The PCB Depaneling Router Machine from ChuangWei, made in China, is certified by CE. It comes with a Minimum Order Quantity of 1 Set and is Negotiable in terms of price. It is packed in a plywood case and ships in 7 days. The Payment Terms is T/T and the Supply Ability is 20 sets per month. The Workstation PCB loading/unloading is Manual, with Program edit capabilities both Inline and Offline. It is equipped with Spindle from KAVO, with an Overall Weight of 650KG and a cutting Precision of 0.1mm.
ChuangWei Printed Circuit Board Router, PCB Depaneling Machine, PCB Depaneling Machine is CE certified and able to depanel PCB thickness between 0.3mm and 3.5mm. Overall Height offset is adjustable from 60mm to 110mm. It has a power of 2.0KW AC380V and overall dimensions of 1370mm*1650mm*1450mm. The minimum order quantity is 1 set and the price is negotiable. Delivery Time is 7 days, and the payment terms are T/T. The package is plywood case and supply ability is 20 sets per month.
The PCB Depaneling Machine will be securely packaged and shipped with the following steps:
