| Feature: | Has Routing Bit Life Time Checking And Alarm System To Remind Operator To Change Routing Bits When It Finish 120M Cutting. And Routing Bit First 2mm Cut The First Miling Point, Middle 2mm Cut The Second Milling Point, The Last 2mm Cut The Third Milling Poi | Cutting Precision: | 0.1mm |
|---|---|---|---|
| Overall Dimensions(W*D*H): | 1370mm*1650mm*1450mm | Power: | 2.0KW AC380V |
| Workstation PCB Size (max): | 320*320mm | Spindle: | KAVO |
| Workstation PCB Fixation: | Standard,specialization | Workstation PCB Thick (max): | 5mm |
| High Light: | 110mm Height PCB Router Machine,PCB Router Machine with Manipulator Axis |
||

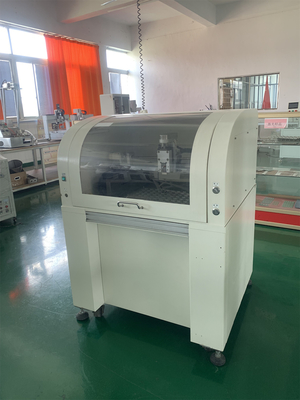

PCB Depaneling Machine is a special CNC router designed for the PCB depaneling process. It is a PCB milling cutter machine used to cut the PCBs into single units for further processing. It is equipped with a cutting speed of up to 80mm/s, and can be operated in both inline and offline mode. It is also adjustable in overall height with the offset of 60~110mm, and its manipulator axis working area can reach up to 830mm*580mm*50mm. With the power of 2.0KW AC380V, it offers high performance and stability, making it an ideal choice for PCB depaneling.
| Parameter | Value |
|---|---|
| Overall Dimensions (W*D*H) | 1370mm*1650mm*1450mm |
| Power | 2.0KW AC380V |
| Manipulator Positioning Repeatability | 0.001mm |
| Program Edit | Inline, Offline |
| Workstation PCB Fixation | Standard, Specialization |
| Name | PCB Depaneling Machine, PCB Depaneling Router, PCB Depaneling Router Machine, PCB Router, PCB CNC Router |
| Spindle | KAVO |
| Manipulator Motor Type | JiaBao Series |
| Function Edit | Line, Arc, Circula, U-Curve |
| Cutting Speed (Max.) | 80mm/s |
ChuangWei PCB Depaneling Machine is a printed circuit board router with CE certification, made in China. It is designed for PCB depaneling and can be used in various applications, such as PCB cutting, PCB routing, PCB drilling, PCB milling, PCB engraving and other PCB operations. It has a minimum order quantity of one set and price is negotiable. The packaging is plywood case and delivery time is within 7 days. It accepts payment by T/T and has a supply ability of 20 sets per month. The PCB thickness is 0.3-3.5mm and overall weight is 650KG. It has a workstation PCB size of 320*320mm and manipulator motor type is JiaBao Series. The workstation PCB loading/unloading is manual.
ChuangWei PCB Depaneling Machine is highly reliable and easy to use. It is widely used for PCB depaneling in the electronics industry, and is an ideal choice for PCB cutting, routing, drilling, milling, engraving and other PCB operations. It is also suitable for PCB depaneling in various industries, such as automotive, aerospace, medical, telecommunications and consumer electronics. This PCB Depaneling Machine is a great choice for anyone looking for a reliable and efficient PCB router.
We provide PCB Depaneling Machine, PCB CNC Router, PCB Router Machine, Manipulator Positioning repeatability, Cutting Precision, Program edit and Overall Weight.
Packaging and Shipping for the PCB Depaneling Machine:
