Product Details:
Payment & Shipping Terms:
|
| Workstation PCB Fixation: | Standard,specialization | Manipulator Positioning Repeatability: | 0.001mm |
|---|---|---|---|
| Cutting Speed(max.): | 80mm/s | Overall Dimensions(W*D*H): | 1370mm*1650mm*1450mm |
| Spindle: | KAVO | Workstation PCB Thick (max): | 5mm |
| Overall Height Offset: | 60~110mm | Positioning Accuracy: | 0.01mm |
| High Light: | Manual PCB Depaneling Router Machine,0.01mm Accuracy PCB Depaneling Router Machine |
||

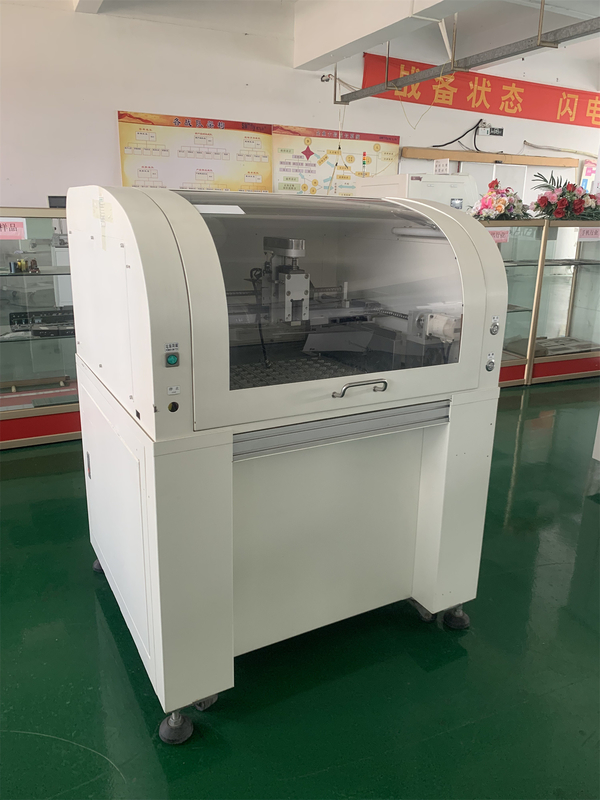

PCB Depaneling Machine is a powerful, precise and cost-effective CNC router for Printed Circuit Board (PCB) depaneling. It is equipped with a powerful 2.0KW AC380V motor, which provides high-speed and efficient PCB depaneling operation. The machine is designed with precise positioning accuracy of 0.01mm, and is capable of working with PCBs of up to 5mm thick. It offers both inline and offline program edit, making it easy for users to create and edit programs for the PCB depaneling operation. It is also equipped with manual loading/unloading function for PCBs, allowing for quick and efficient PCB depaneling process. It is an ideal solution for PCB manufacturers, especially those who require high precision PCB depaneling routers. This PCB Depaneling Machine is perfect for applications such as PCB router machine, PCB milling cutter machine and PCB depaneling router machine.
| Product Feature | Details |
|---|---|
| Cutting Precision | 0.1mm |
| Workstation PCB size (max) | 320*320mm |
| PCB Thickness | 0.3-3.5mm |
| Cutting speed(max.) | 80mm/s |
| Power | 2.0KW AC380V |
| Manipulator Axis working area(max) | 830mm*580mm*50mm |
| Feature | Has Routing Bit Life Time Checking And Alarm System To Remind Operator To Change Routing Bits When It Finish 120M Cutting. And Routing Bit First 2mm Cut The First Miling Point, Middle 2mm Cut The Second Milling Point, The Last 2mm Cut The Third Milling Point To Increase Its Life Time. |
| Spindle | KAVO |
| Program edit | Inline,offline |
| Function edit | Line,arc,circula,U-curve |
| Specialized for | PCB Router Machine, PCB CNC Router , PCB CNC Router Machine |
ChuangWei's PCB Depaneling Machine is a reliable, precision machine for depaneling of printed circuit boards, with CE certification, and it is designed in China. The minimum order quantity is 1 set, and the price is negotiable. The packaging details are plywood cases. The delivery time is 7 days. The payment terms are T/T. The supply ability is 20 sets per month. The cutting speed can reach up to 80mm/s. The PCB thickness can be 0.3-3.5mm. It can be used for line, arc, circular, and U-curve cutting. The overall height offset is 60~110mm. The manipulator axis working area can be up to 830mm*580mm*50mm. The PCB milling cutter machine and the PCB depaneling router machine are the perfect choice for PCB depaneling.
ChuangWei offers a complete customization service for PCB Depaneling Machine, which is ideal for milling and routing printed circuit boards (PCB). Our machine is certified with CE and has a minimum order quantity of 1 set. It is packed with plywood case for delivery and the delivery time is within 7 days. Payment Terms are T/T and 20 sets can be supplied per month. The overall dimensions of the machine are 1370mm*1650mm*1450mm. It is suitable for PCB thickness between 0.3-3.5mm and the offset of the overall height is between 60~110mm. The spindle is KAVO and the manipulator motor type is JiaBao Series.
Our PCB Depaneling Machine is the perfect solution for PCB milling and routing. It is an efficient and cost-effective solution for producing PCB with precision. Our machine provides maximum performance, with minimum maintenance. It is reliable and easy to use. With our customization service, you can get exactly what you need for your PCB milling and routing needs.
At ChuangWei, we are committed to providing you with the best PCB Milling Cutter Machine, Printed Circuit Board Router and PCB Milling Cutter Machine. We guarantee that our customized service will provide you with the best results for your PCB milling and routing needs.
PCB Depaneling Machine should be well packed to protect it from any kind of damage and ensure its safe shipment. The machine should be packed in a cardboard box, with bubble wrap and foam padding inside the box. The box should be closed securely with packing tape. The machine should also be labeled with caution signs and a shipping label.
The machine should be shipped using a reliable shipping carrier, such as FedEx or UPS, with tracking and insurance. The shipping package should include a packing slip with the customer's contact information, order information, and any other necessary information. The package should also include an instruction manual and warranty information.
A: The name of the PCB Depaneling Machine is ChuangWei.
A: The PCB Depaneling Machine is made in China.
A: Yes, the PCB Depaneling Machine has a CE certification.
A: The minimum order quantity is one set.
A: The price of the PCB Depaneling Machine is negotiable.
