Product Details:
Payment & Shipping Terms:
|
| Workstation PCB Loading/unloading: | Manual | Workstation PCB Size (max): | 320*320mm |
|---|---|---|---|
| Workstation PCB Thick (max): | 5mm | Program Edit: | Inline,offline |
| Function Edit: | Line,arc,circula,U-curve | Power: | 2.0KW AC380V |
| Overall Weight: | 650KG | Spindle: | KAVO |
| High Light: | Single Platform PCB Milling Cutter Machine,320*320mm PCB Milling Cutter Machine |
||

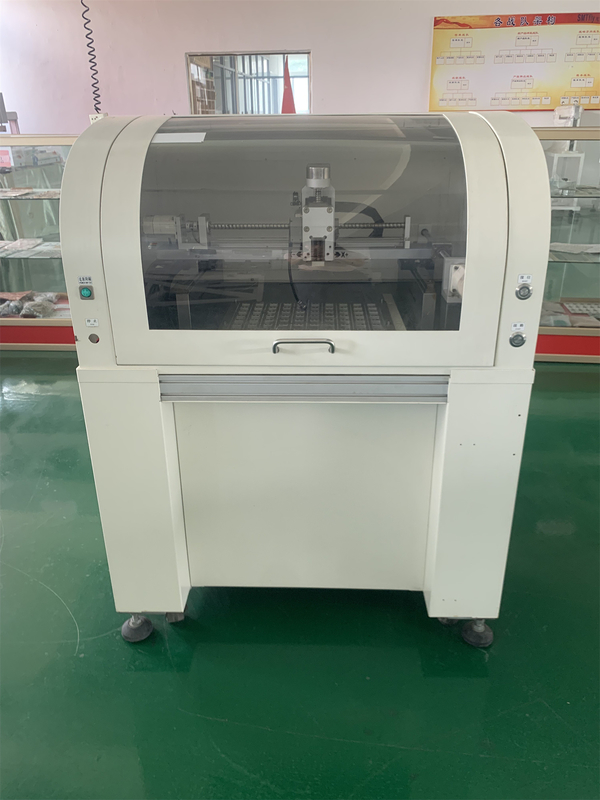

PCB Depaneling Machine is a CNC router machine which is designed for routing and depaneling printed circuit boards (PCBs). It is equipped with a KAVO spindle, standard and specialised workstation PCB fixation, and a manipulator with an axis working area of 830mm*580mm*50mm, allowing for a maximum PCB thick of 5mm. The overall dimensions of this machine are 1370mm*1650mm*1450mm, making it perfect for cutting and separating components from the PCB quickly and accurately. This machine is ideal for industries requiring PCB depaneling services, such as electronics, medical, automotive, and aerospace.
| Parameters | Values |
|---|---|
| Manipulator Motor type | JiaBao Series |
| Workstation PCB size (max) | 320*320mm |
| Spindle | KAVO |
| Overall Height offset | 60~110mm |
| Positioning Accuracy | 0.01mm |
| PCB Thickness | 0.3-3.5mm |
| Overall Weight | 650KG |
| Program edit | Inline,offline |
| Overall Dimensions(W*D*H) | 1370mm*1650mm*1450mm |
| cutting Precision | 0.1mm |
ChuangWei PCB Depaneling Machine, made in China and certified with CE, is a highly efficient and precise tool for separating printed circuit boards (PCBs). Designed with a quality routing bit life time checking and alarm system, the machine can remind operators to replace routing bits when it finishes 120m cutting. Its routing bit is designed with three milling points which can increase its lifetime. The workstation PCB thick (max) is 5mm, the cutting precision is 0.1mm, and the manipulator positioning repeatability is 0.001mm. The PCB thickness of this machine ranges from 0.3-3.5mm. The minimum order quantity is one set and the price is negotiable. The packaging is plywood case and the delivery time is 7 days. The payment terms are T/T and the supply ability is 20 sets per month.
ChuangWei PCB Depaneling Machine is the perfect choice for customers who are looking for a high-quality PCB router machine, CNC router, or PCB router machine for sale. It is an ideal tool for separating PCBs quickly and accurately. It is also capable of providing users with a reliable routing bit life time checking and alarm system, as well as milling points that can increase its lifetime.
ChuangWei PCB Depaneling Machine is a reliable solution for quick and accurate PCB routing. It is certified with CE and minimum order quantity is 1 set. The price is negotiable and the packaging is plywood case. The delivery time is 7 days and payment terms are T/T. Supply ability is up to 20 sets per month.
This PCB Router Machine is designed with routing bit life time checking and alarm system to remind operator to change routing bits when it finishes 120M cutting. It also features routing bit first 2mm cut the first miling point, middle 2mm cut the second milling point, the last 2mm cut the third milling point to increase its life time.
The workstation PCB fixation is standard and specialization. Positioning accuracy is 0.01mm and PCB thickness is 0.3-3.5mm. The overall weight of the Printed Circuit Board Router is 650kg.
The PCB Depaneling Machine is packaged and shipped in a cardboard box. The size of the box is determined by the size of the machine and will be calculated by the manufacturer. All machine components will be secured within the cardboard box to prevent any damage during transport.
All packages will include detailed instructions for unpacking and installation. Additionally, the manufacturer will provide a tracking number for all packages, so customers can easily track their order.
