Product Details:
Payment & Shipping Terms:
|
| Positioning Accuracy: | 0.01mm | Manipulator Positioning Repeatability: | 0.001mm |
|---|---|---|---|
| Cutting Speed(max.): | 80mm/s | Workstation PCB Size (max): | 320*320mm |
| Workstation PCB Thick (max): | 5mm | Overall Dimensions(W*D*H): | 1370mm*1650mm*1450mm |
| Manipulator Axis Working Area(max): | 830mm*580mm*50mm | Name: | PCB Depaneling Machine,PCB Depaneling Router,PCB Depaneling Router Machine,PCB Router,PCB CNC Router |
| High Light: | Manual Workstation PCB CNC Router,Manipulator Motor PCB CNC Router,KAVO Spindle PCB CNC Router |
||

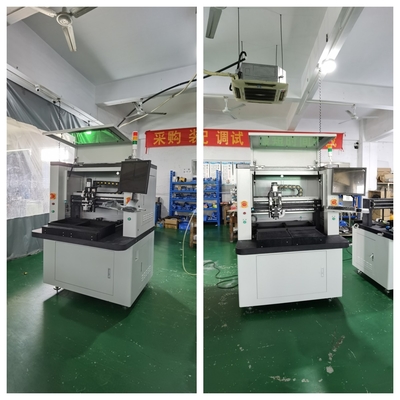

PCB Depaneling Machine is designed for quickly and accurately separating the individual components from printed circuit boards (PCBs) without damaging the components or the board. This machine allows for quick and efficient operation with its high-performance cutting speed of up to 80mm/s. The manipulator positioning repeatability of the machine is 0.001mm, ensuring precise depaneling results. It also features two workstation PCB fixation options, standard and specialization, to provide greater flexibility and customization. The machine is powered by 2.0KW AC380V and has a total weight of 650KG. The PCB Depaneling Machine is an ideal choice for individuals and businesses that are in need of a reliable and efficient depaneling machine.
| Parameter | Value |
|---|---|
| Program edit | Inline, offline |
| Cutting speed (Max.) | 80 mm/s |
| Name | PCB Depaneling Machine, PCB Depaneling Router, PCB Depaneling Router Machine, PCB Router, PCB CNC Router |
| Function edit | Line, arc, circular, U-curve |
| Overall Dimensions (W*D*H) | 1370 mm*1650 mm*1450 mm |
| Workstation PCB fixation | Standard, specialization |
| Workstation PCB loading/unloading | Manual |
| Power | 2.0 KW AC380V |
| Manipulator Positioning repeatability | 0.001 mm |
| Cutting Precision | 0.1 mm |
ChuangWei's PCB Depaneling Machine is widely used in a variety of applications. It has been CE certified and is available at a competitive price. With a minimum order quantity of only 1 Set, delivery time of 7 days and payment terms of T/T, it is highly reliable and can be supplied up to 20 sets per month. The workstation PCB loading/unloading is manual, while power is 2.0KW AC380V. The manipulator axis working area(max) is 830mm*580mm*50mm and the positioning accuracy is 0.01mm. The packaging is done in a sturdy plywood case for safe transportation. This PCB Depaneling Machine, also known as PCB Depaneling Router, PCB Depaneling Router Machine, PCB Router, and PCB CNC Router, is a must-have for any industry that needs efficient and accurate depaneling of printed circuit boards.
Packaging and Shipping of PCB Depaneling Machine:
The PCB Depaneling Machine is packaged in a sturdy cardboard box with a polystyrene foam insert to ensure that the product is secure and protected during the shipping process. The box is labeled with the product name, model number, and other pertinent information. The product will then be shipped via a reliable courier service.
