| Workstation PCB Loading/unloading: | Manual | Power: | 2.0KW AC380V |
|---|---|---|---|
| Workstation PCB Thick (max): | 5mm | Overall Weight: | 650KG |
| Function Edit: | Line,arc,circula,U-curve | Cutting Precision: | 0.1mm |
| Name: | PCB Depaneling Machine,PCB Depaneling Router,PCB Depaneling Router Machine,PCB Router,PCB CNC Router | Manipulator Positioning Repeatability: | 0.001mm |
| High Light: | AC380V PCB Depaneling Router,2.0KW PCB Depaneling Router,Manual Workstation PCB Depaneling Router |
||

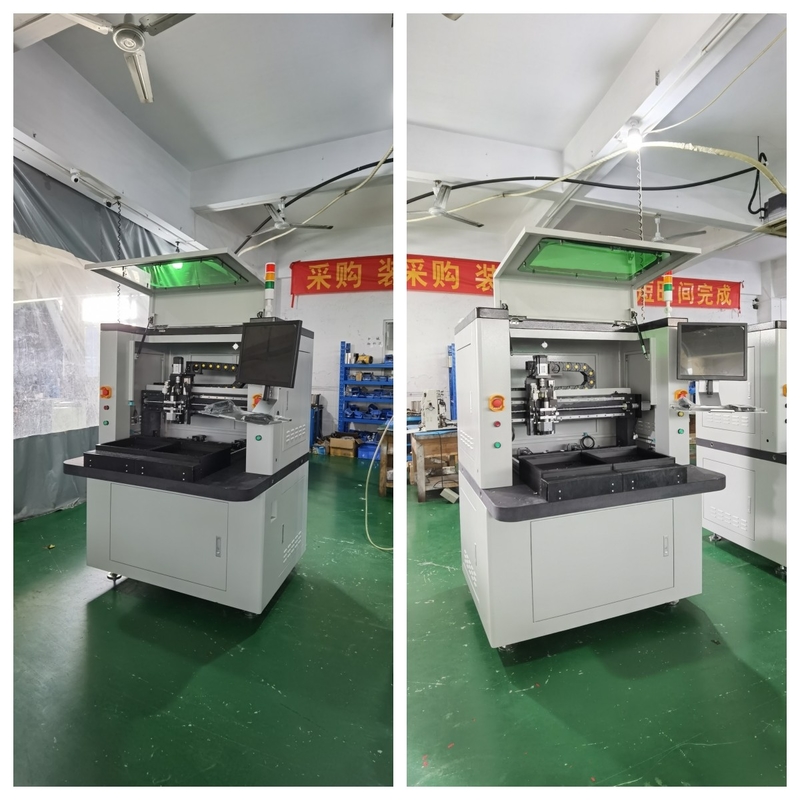

PCB Depaneling Machine is a precise and powerful CNC router for PCB depaneling. It adopts a manipulator with high positioning repeatability up to 0.001mm and JiaBao series motor. It has a maximum working area of 830mm*580mm*50mm, with standard and specialized PCB fixation options. This machine offers a variety of functions such as line, arc, circular, and U-curve editing. It is the perfect choice for efficient and accurate PCB depaneling.
| Parameter | Value |
|---|---|
| Positioning Accuracy | 0.01mm |
| Power | 2.0KW AC380V |
| Function edit | Line,arc,circula,U-curve |
| Overall Dimensions(W*D*H) | 1370mm*1650mm*1450mm |
| Feature | Has Routing Bit Life Time Checking And Alarm System To Remind Operator To Change Routing Bits When It Finish 120M Cutting. And Routing Bit First 2mm Cut The First Miling Point, Middle 2mm Cut The Second Milling Point, The Last 2mm Cut The Third Milling Point To Increase Its Life Time. |
| Overall Height offset | 60~110mm |
| Cutting speed(max.) | 80mm/s |
| Workstation PCB size (max) | 320*320mm |
| Spindle | KAVO |
| Program edit | Inline,offline |
ChuangWei PCB Depaneling Machine is a reliable and powerful CNC router machine, which is designed for PCB depaneling. It is certified with CE, and the minimum order quantity is 1 set. It has a competitive price and the packaging details are plywood case. The delivery time is 7 days and the payment terms are T/T. The supply ability is 20 sets per month. It has a high precision positioning accuracy of 0.01mm and the positioning repeatability is 0.001mm. The workstation PCB fixation can be standard or customization. The manipulator axis working area can reach 830mm*580mm*50mm, and the overall height offset is between 60-110mm. This machine is designed to meet the specific needs of customers in the PCB industry, and is a perfect choice for PCB depaneling.
PCB Depaneling Machine
The PCB Depaneling Machine is packaged using a foam-lined cardboard box to ensure a safe and secure shipment.
Once packaged, the PCB Depaneling Machine is shipped using a reliable courier service. If required, the shipment can be tracked using the tracking number provided by the courier.
If the PCB Depaneling Machine is being shipped internationally, it may be subject to customs clearance procedures, which can cause delays beyond our original delivery estimates.
A: The brand name of this PCB Depaneling Machine is ChuangWei.
A: This PCB Depaneling Machine is manufactured in China.
A: This PCB Depaneling Machine is certified with CE.
A: The minimum order quantity of this PCB Depaneling Machine is 1 Set.
A: The price of this PCB Depaneling Machine is Negotiable. Please contact us for more information.
