Product Details:
Payment & Shipping Terms:
|
| PCB Thickness: | 0.3-3.5mm | Workstation PCB Size (max): | 320*320mm |
|---|---|---|---|
| Manipulator Positioning Repeatability: | 0.001mm | Prodcut Name: | Printed Circuit Board Router |
| Feature: | Has Routing Bit Life Time Checking And Alarm System To Remind Operator To Change Routing Bits When It Finish 120M Cutting. And Routing Bit First 2mm Cut The First Miling Point, Middle 2mm Cut The Second Milling Point, The Last 2mm Cut The Third Milling Poi | Power: | 2.0KW AC380V |
| Program Edit: | Inline,offline | Workstation PCB Fixation: | Standard,specialization |
| High Light: | CNC Router Machine For PCB Cutting,3.5mm PCB CNC Router Machine,80mm/S CNC Router Machine |
||

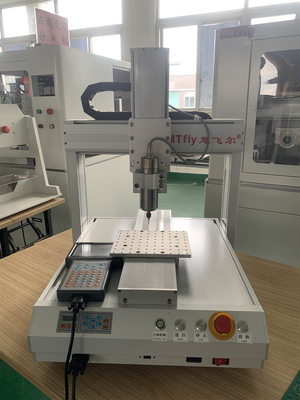

The PCB Depaneling Machine is a powerful CNC router machine designed for depaneling and routing printed circuit boards (PCB). The machine offers an exceptional positioning accuracy of 0.01mm, making it ideal for precise and accurate routing of PCBs. The workstation PCB fixation can be either standard or specialized, depending on the needs of the user. The machine can handle PCBs up to 5mm thick.
The PCB Depaneling Machine is equipped with a routing bit life time checking and alarm system to remind the operator to change routing bits when it finishes 120M cutting. Furthermore, the routing bit performs a first 2mm cut on the first milling point, a middle 2mm cut on the second milling point, and the last 2mm cut on the third milling point to increase life time.
Overall, the PCB Depaneling Machine is an ideal solution for those looking for a reliable and efficient CNC router machine for PCB depaneling and routing. It offers tremendous accuracy, convenience and reliability, making it an excellent choice for CNC routing applications.
| Parameter | Numerical Value |
|---|---|
| Overall Dimensions (W*D*H) | 1370mm*1650mm*1450mm |
| Workstation PCB Thick (max) | 5mm |
| Name | PCB Depaneling Machine, PCB Depaneling Router, PCB Depaneling Router Machine, PCB Router, PCB CNC Router |
| PCB Thickness | 0.3-3.5mm |
| Feature | Has Routing Bit Life Time Checking And Alarm System To Remind Operator To Change Routing Bits When It Finish 120M Cutting. And Routing Bit First 2mm Cut The First Miling Point, Middle 2mm Cut The Second Milling Point, The Last 2mm Cut The Third Milling Point To Increase Its Life Time. |
| Power | 2.0KW AC380V |
| Program edit | Inline,offline |
| Prodcut Name | Printed Circuit Board Router |
| Overall Weight | 650KG |
| Workstation PCB loading/unloading | Manual |
ChuangWei PCB Depaneling Machine is a professional industrial grade router machine for PCB depaneling. With CE certification and backed by reliable quality assurance, it's the ideal solution for your PCB depaneling needs. It's designed for fast, accurate and reliable depaneling of printed circuit boards with a maximum size of 320*320mm, and it can depanel boards with thicknesses ranging from 0.3mm to 3.5mm. It features a standard workstation PCB fixation and positioning accuracy of 0.01mm, with cutting precision of 0.1mm, making it perfect for your industry-grade requirements. With a minimum order quantity of 1 set, you can get it at a negotiable price, with delivery time of 7 days and payment terms of T/T. We are also capable of supplying up to 20 sets of PCB Depaneling Router Machine per month, ensuring that no matter how big your project is, we have got you covered.
ChuangWei PCB Depaneling Router Machine is the perfect solution for all your PCBA Depaneling Machine needs, so don't wait anymore and order yours today!
ChuangWei offers custom service for PCB Depaneling Machine with following features:
ChuangWei specializes in the production of PCB Depaneling Machine, Printed Circuit Board Router and PCB Depaneling Router, which offers cutting precision up to 0.1mm, manual loading and unloading, inline and offline program edit, height offset up to 110mm, and 2.0KW AC380V power. CE certification, 1 set minimum order quantity, negotiable price, plywood case packaging, 7 days delivery time, T/T payment terms, and 20 sets per month supply ability are all available.
Packaging and Shipping of PCB Depaneling Machine
Our PCB Depaneling Machine is carefully packaged in a durable, custom-made cardboard box to ensure it arrives in perfect condition. The box is sealed with bubble wrap and sufficient cushioning material to provide protection during transit. The box is then further secured with strong tape to ensure that the package is not opened during shipment.
We offer a variety of shipping options based on the customer's needs and budget. All of our shipments are tracked and insured to ensure safe delivery.
