Product Details:
Payment & Shipping Terms:
|
| Workstation PCB Size (max): | 320*320mm | Positioning Accuracy: | 0.01mm |
|---|---|---|---|
| Workstation PCB Thick (max): | 5mm | Manipulator Axis Working Area(max): | 830mm*580mm*50mm |
| Workstation PCB Fixation: | Standard,specialization | Program Edit: | Inline,offline |
| Cutting Speed(max.): | 80mm/s | Prodcut Name: | Printed Circuit Board Router |
| High Light: | Desktop PCB Router Machine,AC380V PCB Router Machine,2.0KW Printed Circuit Board Router |
||

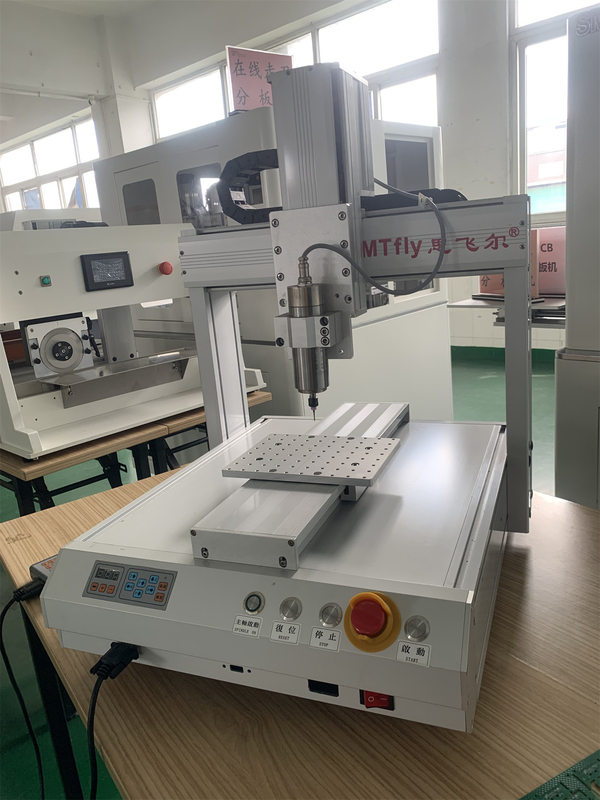

PCB Router Machine, also known as PCB Depaneling Machine or Printed Circuit Board Router Machine, is a highly reliable and fast router for PCBs. It has an outstanding positioning accuracy of 0.01mm and can handle PCBs of thickness from 0.3-3.5mm. It has an overall dimension of 1370mm*1650mm*1450mm. This machine comes with two program editing modes, Inline and offline, and supports different functions of line, arc, circular and U-curve. With so many features, PCB Router Machine is an ideal choice for quickly and efficiently depaneling PCBs.
| Name | PCB Depaneling Machine, PCB CNC Router, PCB CNC Router Machine, PCB Router |
|---|---|
| Workstation PCB size (max) | 320*320mm |
| Program edit | Inline,offline |
| PCB Thickness | 0.3-3.5mm |
| Manipulator Positioning repeatability | 0.001mm |
| Workstation PCB thick (max) | 5mm |
| Positioning Accuracy | 0.01mm |
| Overall Weight | 650KG |
| Feature | Has Routing Bit Life Time Checking And Alarm System To Remind Operator To Change Routing Bits When It Finish 120M Cutting. And Routing Bit First 2mm Cut The First Miling Point, Middle 2mm Cut The Second Milling Point, The Last 2mm Cut The Third Milling Point To Increase Its Life Time. |
| Cutting Precision | 0.1mm |
The PCB Depaneling Machine by ChuangWei is a printed circuit board router designed to quickly and accurately cut boards and other components with precision of up to 0.1mm. This machine is CE certified and can be ordered with a minimum of one set. The router is able to cut lines, arcs, circles, and U-curves, and can do so at a maximum speed of 80mm/s. Delivery of the machine is within 7 days and payment is accepted through T/T. The router comes with a plywood case and can be supplied up to 20 sets per month. This PCB Depaneling Router is perfect for any application or scene that requires rapid and precise PCB depaneling.
Customized PCB Depaneling Machine Service
ChuangWei is a professional PCB Depaneling Machine manufacturer with CE certification. We offer customized service with minimum order quantity of 1 set. The price is negotiable. It is packed in plywood case and will be delivered within 7 days after payment. We can supply up to 20 sets per month. The workstation PCB size can reach up to 320*320mm. PCB loading/unloading is manual and the manipulator positioning repeatability is 0.001mm. The manipulator axis working area can reach 830mm*580mm*50mm.
Our PCB Depaneling Machine is also known as PCB CNC Router which is widely used in the production of PCB boards. It is an ideal PCB depaneling tool for both small and medium production runs. The PCB Depaneling Router has high accuracy and fast speed which makes it become the most cost-effective and reliable tool for your PCB Depaneling needs.
All PCB Depaneling Machines are safely packed with sturdy wooden boxes, foam boards, and plastic bags. Additional protection will be added if necessary. The machines are shipped via air, sea, or ground transportation.
Once the orders are placed, we will use the most efficient and cost-effective way to ship the machines. We will also provide tracking numbers and other details about the shipment so you can track the progress.
We also provide insurance if requested by the customers. We take full responsibility of any damage caused during transportation.
