Product Details:
Payment & Shipping Terms:
|
| Overall Dimensions(W*D*H): | 1370mm*1650mm*1450mm | Manipulator Positioning Repeatability: | 0.001mm |
|---|---|---|---|
| Positioning Accuracy: | 0.01mm | Cutting Speed(max.): | 80mm/s |
| Function Edit: | Line,arc,circula,U-curve | Manipulator Axis Working Area(max): | 830mm*580mm*50mm |
| Manipulator Motor Type: | JiaBao Series | Prodcut Name: | Printed Circuit Board Router |
| High Light: | 0.01mm Accuracy PCB Depaneling Machine,PCB Depaneling PCB Punching Machine,3.5mm Thick PCB Punching Machine |
||

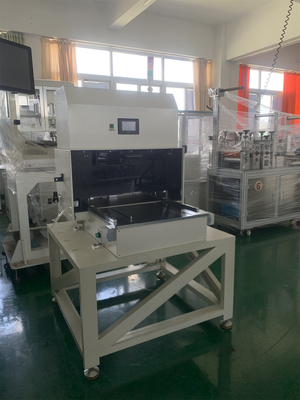

PCB Depaneling Machine is an advanced CNC router specially designed for PCB depaneling. It is widely used in the electronic industry for cutting and depaneling PCBs with a thickness of 0.3-3.5mm and a maximum size of 320*320mm. It features a powerful 2.0KW AC380V motor, a manipulator motor type of JiaBao series, and a function edit including line, arc, circular, and U-curve. This PCB depaneling router machine is highly efficient and accurate for cutting, depaneling, drilling, milling, and engraving on the PCBs, and it is a perfect choice for PCB depaneling.
X10 zoom-in image makes programming easier and increase the accuracy of point setting, allowing users to complete their task with little effort. Moreover, the two sliding table allows an in-and-out movement simultaneously, which cut down the track time and increase the productivity.
The AUTO MARK offset system helps to simulate and check the path or routing before the actual cutting take place, thus reducing any unnecessary mistakes that might arise. Furthermore, there is an alarm system to alert the operator when the routing bit lifetimes finish 120M of cutting. The routing bit first 2mm is used to cut the first milling point, the middle 2mm to cut the second milling point, and the last 2mm to cut the third milling point, in order to maximize its usage.
The CCD image from the AUTO MARK offset system is used to check and simulate the path or routing to reduce any unnecessary mistake before cutting, thus further reducing any potential damage to the end product.
| Parameter | Value |
|---|---|
| Workstation PCB size (max) | 320*320mm |
| Overall Dimensions(W*D*H) | 1370mm*1650mm*1450mm |
| PCB Thickness | 0.3-3.5mm |
| Product Name | Printed Circuit Board Router |
| Workstation PCB thick (max) | 5mm |
| Overall Height offset | 60~110mm |
| Spindle | KAVO |
| Function edit | Line,arc,circula,U-curve |
| Workstation PCB loading/unloading | Manual |
| Name | PCB Depaneling Machine,PCB Depaneling Router,PCB Depaneling Router Machine,PCB Router,PCB CNC Router |
ChuangWei is a renowned manufacturer of Printed Circuit Board Router, also known as PCB Router Machine, which is a kind of PCB Depaneling Machine used to cut through the PCB board quickly and accurately. With CE Certification, the minimum order quantity of this machine is 1 set, and the price is negotiable. The package is plywood case, and the delivery time is 7 days. The payment terms are T/T, and the supply ability is 20 sets per month. The spindle is KAVO, and the workstation PCB size is 320*320mm. The power is 2.0KW AC380V, and the workstation PCB loading/unloading is manual. As a professional PCB Router Machine Manufacturer and PCB Router Machine Supplier, ChuangWei is your best choice for your PCB Depaneling Machine needs.
ChuangWei offers customized PCB Depaneling Router with CE standard, providing you with precision and reliability. It features:
ChuangWei's PCB Depaneling Machines are the perfect solution for any PCB depaneling needs. With the highest quality components and cutting-edge technology, you can be sure that your PCB Depaneling Router is the best choice for your production needs.
PCB Depaneling Machine technical support and service is available to customers to help them address any issues with the product. We provide a variety of services, including troubleshooting, installation, maintenance, and repair. Our knowledgeable and experienced technicians are available to provide assistance over the phone, via email, or on-site. We also offer preventative maintenance plans to help keep the product in optimal condition and reduce the risk of problems.
The packaging and shipping of a PCB Depaneling Machine is quite simple. It is packaged in a cardboard box with adequate padding to protect it from being damaged during shipping. The box is then sealed and labeled with the product information. The box is then shipped to its destination, typically via a courier or freight service.
