| Workstation PCB Fixation: | Standard,specialization | Overall Dimensions(W*D*H): | 1370mm*1650mm*1450mm |
|---|---|---|---|
| Name: | PCB Depaneling Machine,PCB Depaneling Router,PCB Depaneling Router Machine,PCB Router,PCB CNC Router | Overall Weight: | 650KG |
| Function Edit: | Line,arc,circula,U-curve | Power: | 2.0KW AC380V |
| Manipulator Axis Working Area(max): | 830mm*580mm*50mm | PCB Thickness: | 0.3-3.5mm |
| High Light: | PCB Punch Depaneling Machine,AC380V PCB Punch Depaneling Machine,Manipulator Axis PCB Punching Machine |
||

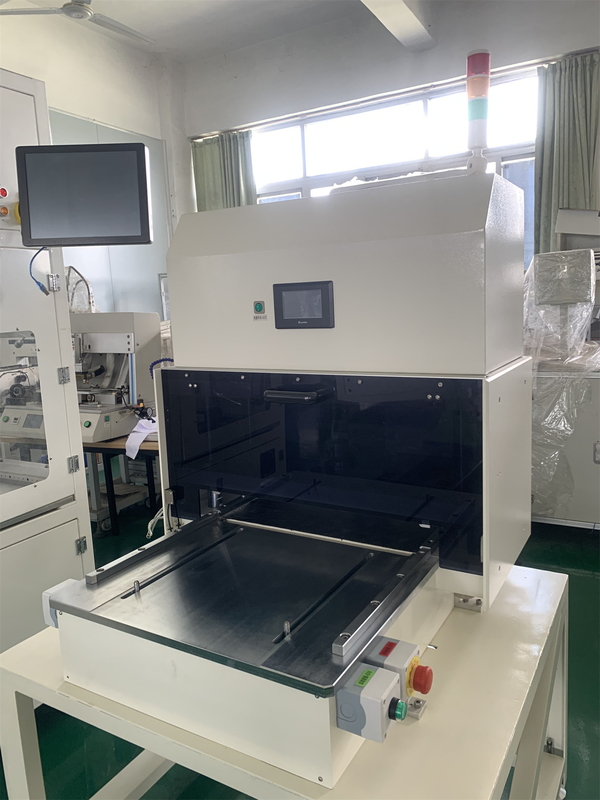

The PCB Depaneling Machine is an ideal tool for printed circuit board routing. It is designed to provide a fast, accurate, and safe means of separating individual circuit boards from their panel. With an overall height offset of 60-110mm, this machine is capable of handling a PCB thickness up to 5mm and a PCB size of 320 x 320mm. With its manual loading/unloading of PCBs, the PCB Depaneling Router is an efficient machine for PCB depaneling. It is also known as a Printed Circuit Board Router or a PCB Router and is perfect for any manufacturing plant.
X10 zoom-in image allows for easily programming, plus the accuracy of point setting is enhanced. This is achieved in two ways:
First, two sliding tables provide seamless in-and-out movement to reduce tack time and improve productivity.
Second, an AUTO MARK offset system is present. Through CCD imaging, the pattern or routing is able to be checked and simulated to avert any unnecessary mistakes prior to cutting.
Moreover, there is a routing bit life time checking and alarm system which notifies the operator when 120M cutting is complete, alerting them to switch the routing bit. The first two millimetres cut the first milling point, while the middle two millimetres cut the second milling point. And the last two millimetres cut the third milling point, in order to increase the life time of the routing bit.
| Parameter | Specification |
|---|---|
| Cutting Precision | 0.1mm |
| Positioning Accuracy | 0.01mm |
| Feature | Has Routing Bit Life Time Checking And Alarm System To Remind Operator To Change Routing Bits When It Finish 120M Cutting. And Routing Bit First 2mm Cut The First Miling Point, Middle 2mm Cut The Second Milling Point, The Last 2mm Cut The Third Milling Point To Increase Its Life Time. |
| Manipulator Axis Working Area(Max) | 830mm*580mm*50mm |
| Overall Dimensions(W*D*H) | 1370mm*1650mm*1450mm |
| Power | 2.0KW AC380V |
| Workstation PCB size (max) | 320*320mm |
| Manipulator Motor type | JiaBao Series |
| Overall Weight | 650KG |
| Manipulator Positioning Repeatability | 0.001mm |
PCB Depaneling Machine, also known as PCB CNC Router, Printed Circuit Board Router, and PCB CNC Router Machine, is manufactured by ChuangWei, a China-based company. It has obtained CE certification and has a minimum order quantity of 1 set. The price is negotiable and it is packed in a plywood case for delivery. Delivery time is 7 days and payment terms are T/T. The supply ability is 20 sets per month. The overall dimensions (W*D*H) are 1370mm*1650mm*1450mm, and the overall weight is 650KG. In addition, the spindle is KAVO and the workstation PCB fixation is both standard and specialization. PCB Depaneling Machine is suitable for industrial processes such as depaneling, routing, and milling in the production of printed circuit boards.
Brand Name: ChuangWei
Place of Origin: China
Certification: CE
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: plywood case
Delivery Time: 7 days
Payment Terms: T/T
Supply Ability: 20 sets per month
Workstation PCB fixation: Standard,specialization
Spindle: KAVO
Power: 2.0KW AC380V
Feature: Has Routing Bit Life Time Checking And Alarm System To Remind Operator To Change Routing Bits When It Finish 120M Cutting. And Routing Bit First 2mm Cut The First Miling Point, Middle 2mm Cut The Second Milling Point, The Last 2mm Cut The Third Milling Point To Increase Its Life Time.
Program edit: Inline,offline
We provide technical support and service for PCB Depaneling Machines. Our experienced and professional technical team is available to provide assistance with machine installation, operation, and maintenance. We also provide repair and replacement services for defective PCB Depaneling Machine components.
We also offer a range of other services, including:
We strive to provide the best technical support and service for our customers. Our goal is to keep your PCB Depaneling Machine running smoothly and efficiently, so you can get the most out of your investment.
Packaging and Shipping for PCB Depaneling Machine
Packaging:
The PCB Depaneling Machine will be packaged in a box or carton, with foam padding or other protective material to avoid damage during shipping. The box should also be labeled with the product description and serial number.
Shipping:
The PCB Depaneling Machine will be shipped via air or sea freight. The delivery time will depend on the destination, and the cost of shipping will be determined by the weight of the shipment.
