Product Details:
Payment & Shipping Terms:
|
| PCB Thickness: | 0.3-3.5mm | Manipulator Motor Type: | JiaBao Series |
|---|---|---|---|
| Overall Height Offset: | 60~110mm | Program Edit: | Inline,offline |
| Cutting Speed(max.): | 80mm/s | Feature: | Has Routing Bit Life Time Checking And Alarm System To Remind Operator To Change Routing Bits When It Finish 120M Cutting. And Routing Bit First 2mm Cut The First Miling Point, Middle 2mm Cut The Second Milling Point, The Last 2mm Cut The Third Milling Poi |
| Positioning Accuracy: | 0.01mm | Power: | 2.0KW AC380V |
| High Light: | Offline PCB CNC Router,650KG PCB CNC Router,Manual Loading Unloading PCB CNC Router |
||

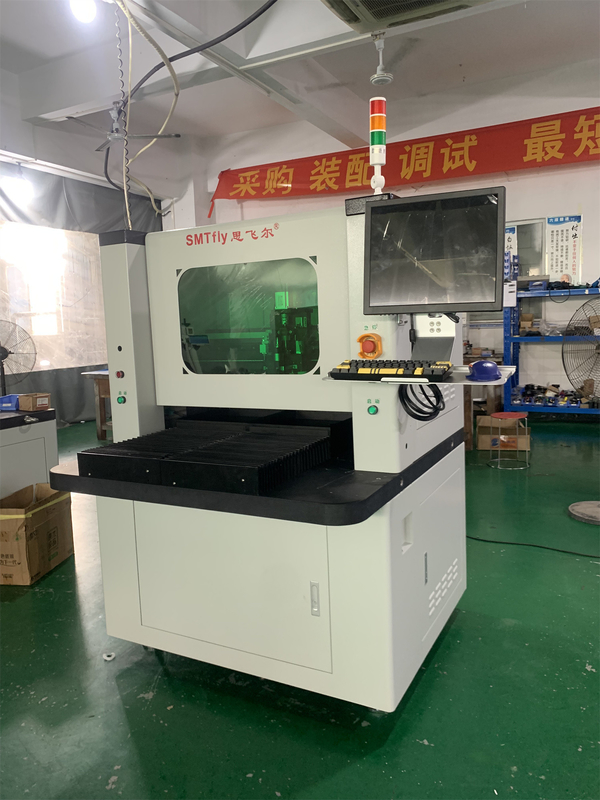

This PCB Depaneling Router Machine is used for various PCB depaneling processes, such as line, arc, circle, and U-curve. It is equipped with a KAVO spindle and a JiaBao Series manipulator motor, ensuring superior cutting precision of 0.1mm.
The PCB Depaneling Router Machine is designed for PCB depaneling applications and is ideal for companies looking for a reliable and cost-effective solution for their PCB depaneling needs. It is equipped with a KAVO spindle and a JiaBao Series manipulator motor, offering superior cutting precision of 0.1mm.
This PCB Depaneling Router Machine is a powerful and versatile tool for PCB depaneling applications. It is suitable for companies looking for a reliable and cost-effective solution for their PCB depaneling needs. The machine is equipped with a KAVO spindle and a JiaBao Series manipulator motor, providing superior cutting precision of 0.1mm.
The PCB Depaneling Router Machine is an excellent choice for PCB depaneling applications. It is equipped with a KAVO spindle and a JiaBao Series manipulator motor, delivering superior cutting precision of 0.1mm. The machine is also cost-effective and reliable, making it an ideal solution for companies seeking a dependable and cost-effective PCB depaneling solution.
Equipped with X10 zoom-in image, programming has never been easier and more accurate. Not to mention the two sliding tables that allow simultaneously in-and-out movement, which helps to reduce tacking time and increases productivity.
Moreover, this machine features AUTO MARK offset system with CCD image. This allows the users to check and simulate the path or routing before cutting, minimizing or even eliminating unnecessary mistakes.
In addition, this machine is capable of monitoring the life time of routing bits, and warns the operators when it finishes 120M cutting. Furthermore, the routing bits are divided into three parts, with the first 2mm cutting the first miling point, the middle 2mm cutting the second milling point, and the last 2mm cutting the third milling point – this helps to increase its life time.
| Parameter | Value |
|---|---|
| Product Name | Printed Circuit Board Router |
| Cutting Precision | 0.1mm |
| Feature | Has Routing Bit Life Time Checking And Alarm System To Remind Operator To Change Routing Bits When It Finish 120M Cutting. And Routing Bit First 2mm Cut The First Miling Point, Middle 2mm Cut The Second Milling Point, The Last 2mm Cut The Third Milling Point To Increase Its Life Time. |
| Positioning Accuracy | 0.01mm |
| Workstation PCB loading/unloading | Manual |
| Overall Height offset | 60~110mm |
| Manipulator Motor type | JiaBao Series |
| Manipulator Positioning repeatability | 0.001mm |
| Overall Weight | 650KG |
| Overall Dimensions(W*D*H) | 1370mm*1650mm*1450mm |
ChuangWei's PCB Depaneling Machine is a powerful and accurate CNC router machine for PCB depaneling. It is certified with CE and has a minimum order quantity of 1 set. The price is negotiable and it comes with a plywood case. It can deliver within 7 days with T/T payment terms. The supply ability is 20 sets per month. It has a manual workstation PCB loading/unloading and a cutting precision of 0.1mm. Moreover, it has a routing bit life time checking and alarm system to remind the operator to change the routing bits when it finishes 120m cutting. It also has a routing bit first 2mm cut the first milling point, middle 2mm cut the second milling point, and last 2mm cut the third milling point to increase its lifetime. The workstation PCB thick (max) is 5mm and the cutting speed (max.) is 80mm/s.
Brand Name: ChuangWei
Place of Origin: China
Certification: CE
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: plywood case
Delivery Time: 7 days
Payment Terms: T/T
Supply Ability: 20 sets per month
ChuangWei offers high quality PCB Depaneling Router Machine and Printed Circuit Board Router to meet your requirements.
Our technical support and service team is dedicated to providing customers with the best possible service for their PCB Depaneling Machine. We are committed to maintaining the highest level of quality, dependability and customer satisfaction.
We provide full support for all our PCB Depaneling Machines, including troubleshooting, repair, maintenance and installation. Our team is available 24/7 to answer any questions or concerns you may have about the product. We also provide training and guidance to ensure that you can get the most out of your PCB Depaneling Machine.
Our technical support and service team is always available to assist you. Whether you need help troubleshooting, require additional parts, or have a general question about the product, we are here to help. We will do our best to ensure that you are satisfied with your purchase.
Packaging and Shipping for PCB Depaneling Machine:
The PCB Depaneling Machine will be securely packaged and shipped in appropriately sized cardboard boxes. The boxes will include additional padding and protection for the product to ensure that it arrives in excellent condition. The product will also be shipped with an instruction manual and all necessary cables.
