Product Details:
Payment & Shipping Terms:
|
| Extraordinary Cut Quality Holding Tolerances: | As Small As 50 Microns | Control System: | Software Controlled |
|---|---|---|---|
| Cutting Material: | Various Material | Name: | Laser Depaneling Machine |
| Cutting Edge: | Smooth Edge | Cutting Depth: | High Depth |
| Laser Scanning Speed: | 2500mm/s Max High Speed | Max. Working Area (X X Y X Z): | 300x300x11 Mm, 400mmX300mm(Customizable) |
| High Light: | High Precision PCB Separator Machine,High Depth PCB Separator Machine,Tolerances 50 Microns PCB Depanelizer |
||

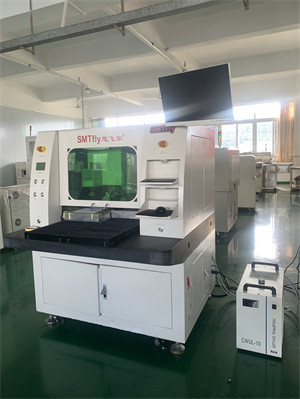

Laser Depaneling Machine is designed for precise, high-speed depaneling of various materials. It is equipped with Optowave laser and offers a maximum working area of 300x300x11 mm and 400mmX300mm (Customizable). With cutting accuracy of ± 25 μm (1 Mil), it can be used for depaneling FR4/FPC with amazing precision. It is an ideal choice for PCB cutter machine, PCB depaneling machine and PCB board cutting machine.
| Parameters | Details |
|---|---|
| Laser Depaneling Machine | PCB Depanelizer, PCB Cutter Machine |
| Laser Power | 10W / 12W / 15W / 18W 30KHz |
| Voltage | 220V 380V |
| Cutting Area | Large Area |
| Advantages | Auto Vision Positioning / Excellent Cut Finish |
| Cutting Depth | High Depth |
| Cutting Material | Various Material |
| Function | Depaneling FR4 / FPC |
| Laser Scanning Speed | 2500mm/s Max High Speed |
| Cutting Edge | Smooth Edge |
| Extraordinary Cut Quality Holding Tolerances | As Small As 50 Microns |
Chuangwei Laser Depaneling Machine is a high quality pcb depaneling equipment with CE Certificate for various material. It features laser scanning speed up to 2500mm/s and extraordinary cut quality holding tolerances as small as 50 microns, which ensures smooth edge for maximum working area of 300x300x11 mm and 400mmX300mm(customizable). The price is negotiable and each set is packed in plywood case. With a production capacity of 260 sets per month, it can be delivered within 10 days after payment by T/T, Western Union, or L/C. It is the perfect choice for pcb board cutting machine and pcb panel cutting machine.
The Laser Depaneling Machine will be packaged and shipped in a cardboard box, with the following items included:
The package will be shipped via a reliable courier service and will be tracked and insured for the full value of the product.
A1: Laser Depaneling Machine is a cutting machine made by Chuangwei, a brand from China. It is certified with CE Certificate and is able to cut different types of materials with high accuracy.
A2: The minimum order quantity is one set.
A3: Yes, the price is negotiable.
A4: Each set is packed in a plywood case.
A5: The delivery time is 10 days. Payment terms include T/T, Western Union, and L/C. We can supply 260 sets per month.
