| Function: | Depaneling FR4 / FPC | Voltage: | 220V 380V |
|---|---|---|---|
| Laser Scanning Speed: | 2500mm/s Max High Speed | Cutting Area: | Large Area |
| Cutting Depth: | High Depth | Cutting Material: | Various Material |
| Cutting Edge: | Smooth Edge | Extraordinary Cut Quality Holding Tolerances: | As Small As 50 Microns |
| High Light: | Industrial Laser Depaneling Machine,FR4 Laser Depaneling Machine,FPC Laser Depaneling Machine |
||

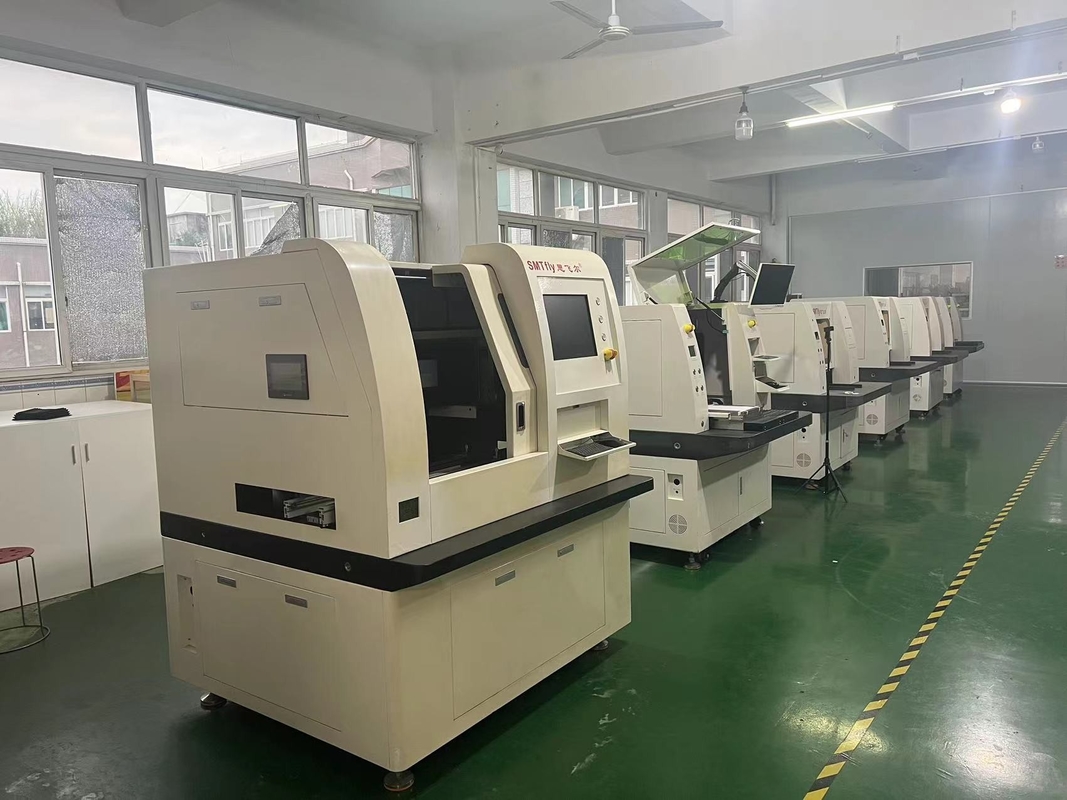

Laser Depaneling Machine is a high-end laser cutting machine for precise and fast cutting of various materials. It is a powerful tool in the PCB industry. The laser depaneling machine uses a laser beam to cut through the materials and create a smooth edge. With its large cutting area, laser scanning speed of up to 2500mm/s, and friendly operating environment, the laser depaneling machine provides a fast and reliable online or offline PCB laser depaneling solution. It is suitable for laser pcb depaneling, laser pcb routing, and laser pcb depaneling. The laser depaneling machine is an ideal solution for the quick and efficient production of PCBs.
| Parameter | Specification |
|---|---|
| Laser Scanning Speed | 2500mm/s Max High Speed |
| Laser Power | 10W / 12W / 15W / 18W 30KHz |
| Laser Wavelength | 355nm |
| Laser | Optowave |
| Control System | Software Controlled |
| Voltage | 220V 380V |
| Cutting Material | Various Material |
| Cutting Accuracy | High Accuracy, ± 25 μm (1 Mil) |
| Cutting Area | Large Area |
| Function | Depaneling FR4 / FPC |
| Application | Online or Offline PCB Laser Depaneling Machine |
Chuangwei, a professional manufacturer in China, provides high-quality laser depaneling machines with CE Certificate. One set of the machine is available for order with a minimum order quantity. The price is negotiable and packaging is plywood case. The delivery time is 10 days, and it supports payment terms such as T/T, Western Union, and L/C. The supply ability of the machine is 260 sets per month.
The laser depaneling machine features depaneling FR4/FPC with high safety protection. It has a maximum scanning speed of 2500mm/s, and it can cut large area with high depth.
Brand Name: Chuangwei
Place of Origin: China
Certification: CE Certificate
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: each set be packed in plywood case
Delivery Time: 10 days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 260 sets per month
Chuangwei Laser Depaneling Machine is an ideal online or offline PCB laser depaneling machine, pcb depaneling machine, pcb depaneling equipment with high accuracy, great cutting finish and large cutting area.
The Laser Depaneling Machine is securely housed in a protective shipping container to ensure safety during transit. The safety shipping container is designed to protect against impacts, dust, and moisture. A selection of cushioning materials are used to further protect the machine, including foam, bubble wrap, and other materials. Additional protective elements can also be added to the container, such as air bags or corner fittings.
The container is then sealed and marked with a unique barcode or shipping label. This label contains information about the shipment, such as its destination and tracking number. The package is then ready for shipment, either by air, ground, or sea.
A1: The Brand Name of this Laser Depaneling Machine is Chuangwei, which comes from China and has CE Certificate.
A2: The Minimum Order Quantity of this Laser Depaneling Machine is 1 Set.
A3: The Price of this Laser Depaneling Machine is Negotiable.
A4: This Laser Depaneling Machine will be packed in plywood case and delivered in 10 days.
A5: The Payment Terms of this Laser Depaneling Machine are T/T, Western Union, L/C, and it can supply 260 sets per month.
