Product Details:
Payment & Shipping Terms:
|
| Cutting Depth: | High Depth | Laser: | Optowave |
|---|---|---|---|
| Laser Scanning Speed: | 2500mm/s Max High Speed | Cutting Accuracy: | High Accuracy,± 25 μm (1 Mil) |
| Function: | Depaneling FR4 / FPC | Extraordinary Cut Quality Holding Tolerances: | As Small As 50 Microns |
| Cutting Area: | Large Area | Advantages: | Auto Vision Positioning / Excellent Cut Finish |
| High Light: | High Safety PCB Separator Machine,Auto Vision Positioning PCB Separator Machine,Auto Vision Positioning PCB Depanelizer |
||

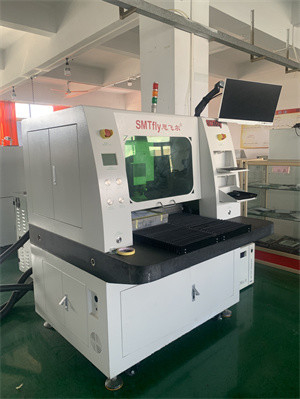

The Laser Depaneling Machine is a cutting-edge laser pcb depaneling machine that offers both online and offline capabilities for efficient depaneling of printed circuit boards. With a maximum working area of 300x300x11mm or 400mmX300mm (customizable), it is ideal for small-to-medium-sized PCBs. It is equipped with a powerful laser ranging in power from 10W to 18W and running at 30KHz to deliver fast and accurate laser scanning speed of up to 2500mm/s. The Laser Depaneling Machine is also designed with an intuitive control system and a user-friendly operating environment, making it the perfect choice for any PCB depaneling application.
| Parameters | Value |
|---|---|
| Laser Scanning Speed | 2500mm/s Max High Speed |
| Cutting Area | Large Area |
| Control System | Software Controlled |
| Laser Wavelength | 355nm |
| Safety Protection | High Safety Protection |
| Max. working area (X x Y x Z) | 300x300x11 Mm, 400mmX300mm(Customizable) |
| Laser | Optowave |
| Voltage | 220V 380V |
| Extraordinary cut quality holding tolerances | As Small As 50 Microns |
| Cutting Edge | Smooth Edge |
Chuangwei Laser Depaneling Machine is a specialized pcb laser cutting machine used to separate components on pcb boards. It is an ideal pcb depaneling equipment for cutting, routing, and separating material to produce precise results with minimal dust and debris. The pcb separator machine is equipped with a software-controlled system and can accurately cut through a variety of materials, including aluminum, copper, and composite materials. The laser depaneling machine is CE certified and has a minimum order quantity of one set, with a negotiable price. The machine is supplied in a plywood case and can be delivered within 10 days. Terms of payment include T/T, Western Union, and L/C. With a monthly production capacity of 260 sets, the pcb router runs in a friendly environment and has a maximum working area of 300x300x11mm and 400mmX300mm (customizable). The voltage for the machine is 220V 380V.
Chuangwei Laser Depaneling Machine is a professional pcb depaneling equipment, it can be used for online or offline PCB laser depaneling machine. This Laser Depaneling Machine has good cutting accuracy with minimum tolerance of ± 25 μm (1 Mil). It has a laser wavelength of 355 nm and can cut even as small as 50 Microns. It has friendly operating environment and can work continuously with high efficiency. There is no dust or pollution in the operating environment.
The Laser Depaneling Machine is securely packaged in a shock-proof box with molded foam inserts to protect the machine during shipping.
The box is then wrapped in stretch wrap and sealed with a security seal. The shipping label is applied directly to the box to ensure that the package is tracked throughout the delivery process.
The package is then loaded onto the appropriate truck or freight carrier and shipped to its final destination.
