Product Details:
Payment & Shipping Terms:
|
| Cutting Accuracy: | High Accuracy,± 25 μm (1 Mil) | Cutting Depth: | High Depth |
|---|---|---|---|
| Max. Working Area (X X Y X Z): | 300x300x11 Mm, 400mmX300mm(Customizable) | Safety Protection: | High Safety Protection |
| Cutting Area: | Large Area | Control System: | Software-controlled |
| Laser Wavelength: | 355nm | Voltage: | AC 110V/220V |
| High Light: | 355nm PCB Depanelizer,Optowave Laser PCB Depanelizer,AC 110V Laser Depaneling Machine |
||

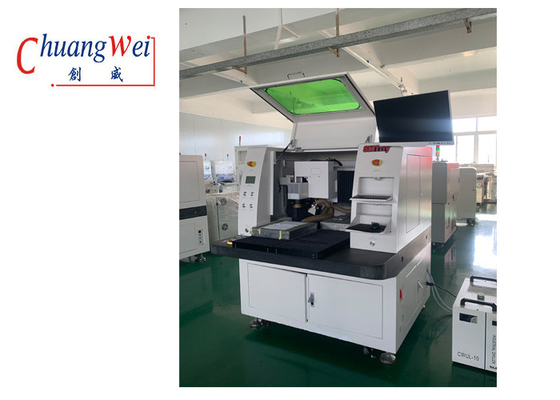

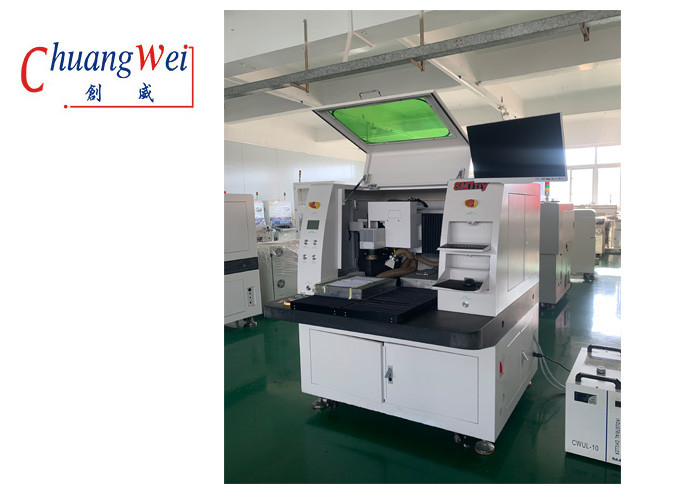

Laser Depaneling Machine is a perfect solution for pcb cutting, separation and depaneling. It is designed with software-controlled system, which can provide smooth edge cutting with high accuracy up to ± 25 μm (1 Mil). The large cutting area and high safety protection make the machine suitable for various PCB depaneling applications. With the laser depaneling machine, you can easily and safely cut and separate PCB boards with high accuracy, without any other additional tools. It is the ideal choice for PCB cutting, separation and depaneling.
| Parameter | Value |
|---|---|
| Type | Laser Depaneling Machine |
| Function | Depaneling FR4/FPC |
| Laser Power | 10W/12W/15W/18W@30KHz |
| Laser Scanning Speed | 2500mm/s (max) High Speed |
| Laser | Optowave |
| Cutting Accuracy | High Accuracy, ± 25 μm (1 Mil) |
| Cutting Area | Large Area |
| Max. working area (X x Y x Z) | 300x300x11 Mm, 400mmX300mm(Customizable) |
| Operating Environment | Friendly Environment |
| Control System | Software-controlled |
The Chuangwei Laser Depaneling Machine is a highly reliable and efficient solution for depaneling FR4/FPC boards. With its high accuracy cutting of ± 25 μm (1 Mil) and high safety protection, the machine is capable of achieving fast and precise results. It is a great choice for PCB assembly and production lines and is ideal for those who need to cut their boards quickly and accurately. The machine comes with CE Certificate, and has a minimum order quantity of 1 set. The price is negotiable and each set is packed in a plywood case for delivery within 10 days. Payment terms are flexible and include T/T, Western Union, and L/C. Our factory can offer up to 260 sets per month.
The Laser Depaneling Machine serves a wide range of applications and is suitable to be used as a pcb cutter machine, pcb separator machine, and pcb laser cutting machine. It is also great for other kinds of circuit boards and is suitable for both small and large scale production. With its high accuracy and safety protection, the machine can be used in various industries, such as electronics, automotive, aerospace engineering, and medical equipment.
Brand Name: Chuangwei
Place of Origin: China
Certification: CE Certificate
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: each set be packed in plywood case
Delivery Time: 10 days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 260 sets per month
Name: Laser Depaneling Machine
Operating Environment: Friendly Environment
Cutting Material: Various Material
Control System: Software-controlled
Laser Wavelength: 355nm
Chuangwei provides the best customized Laser Depaneling Machine available on the market. Our online and offline PCB laser depaneling machine offers an unparalleled combination of performance, reliability, and efficiency. Our pcb laser cutting machine is designed with the latest software-controlled technology and a friendly environment. Our Laser Depaneling Machine can cut through various materials with ease and precision with its laser wavelength of 355nm.
Packaging and Shipping for Laser Depaneling Machine:
The Laser Depaneling Machine will be packaged in a cardboard box with foam inserts for protection during shipping. The box will be securely sealed with tape to prevent any damage to the product during transit. After the product is packaged, it will be shipped via a reliable courier service.
