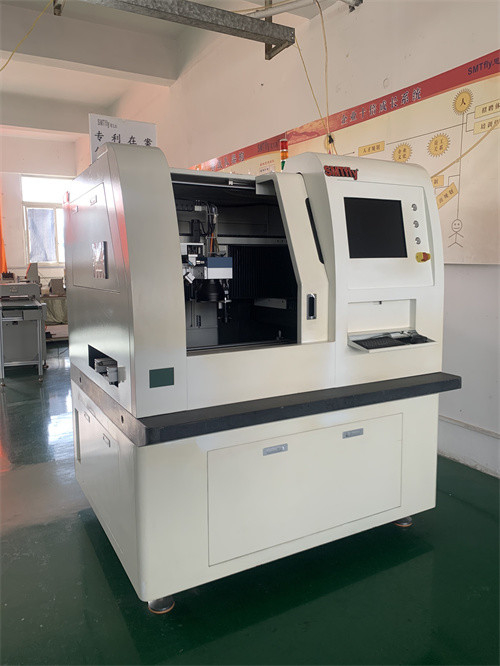

High Accuracy Cutting Laser PCB Depaneling Machine For FR4 / FPC

Product Description:

The Laser Depaneling Machine is a specialized pcb depanelizer and pcb cutter machine designed for friendly operating environment. It is capable of providing high accuracy cutting performance with ± 25 μm (1 Mil) precision and smooth cutting edge. The maximum working area (X x Y x Z) is 300x300x11 Mm, 400mmX300mm(Customizable). The laser power of this machine is 10W/12W/15W/18W@30KHz.

Features:

• Product Name: Laser Depaneling Machine
• Laser Wavelength: 355nm
• Cutting Area: Large Area
• Voltage: AC 110V/220V
• Name: Laser Depaneling Machine
• Operating Environment: Friendly Environment
• PCB Cutter Machine: Yes

Technical Parameters:

Applications:

Chuangwei Laser Depaneling Machine is a PCB board cutting machine specially designed for the depaneling of electronic components. It offers high accuracy, ± 25 μm (1 Mil) cutting accuracy, and is the preferred solution for PCB depaneling. The Max. working area (X x Y x Z) is 300x300x11 Mm, 400mmX300mm, and customizable according to customer needs. It is powered by Optowave laser and features high safety protection. The control system is software-controlled for easy operation. It is CE certified, and comes with a minimum order quantity of 1 set. The price is negotiable and the delivery time is 10 days. Payment terms include T/T, Western Union and L/C. It is packed in a plywood case, and the supply ability is 260 sets per month.

Customization:

We offer a Laser Depaneling Machine customized service with the following features:

• Brand Name: Chuangwei
• Place of Origin: China
• Certification: CE Certificate
• Minimum Order Quantity: 1 Set
• Price: Negotiable
• Packaging Details: each set be packed in plywood case
• Delivery Time: 10 days
• Payment Terms: T/T, Western Union, L/C
• Supply Ability: 260 sets per month
• Type: Laser Depaneling Machine
• Laser: Optowave
• Function: Depaneling FR4/FPC
• Laser Power: 10W/12W/15W/18W@30KHz
• Operating Environment: Friendly Environment
• PCB Depaneling Machine: Suitable for PCB depaneling
• PCB Depanelizer: Used for cutting and separating the PCB boards
• PCB Laser Cutting Machine: Capable of cutting various types of PCBs

Support and Services:

Technical support and service for Laser Depaneling Machine include:

• Phone and online support to address any technical issues
• Software updates for bug fixes and new features
• Onsite maintenance and repairs
• Regular maintenance checks to ensure optimum performance
• Training and educational resources

Packing and Shipping:

The Laser Depaneling Machine should be packaged and shipped safely to ensure its protection from any potential damage during the transit.

• The Laser Depaneling Machine should be placed in a strong cardboard box.
• The box should be filled with bubble wrap or any other cushioning material to protect the machine from getting damaged during the shipping.
• The box should be securely closed with adhesive tape.

• The Laser Depaneling Machine should be shipped with a reliable courier.
• The package should be insured in case of any damage during the transit.
• The package should be tracked to ensure its delivery.
