Product Details:
Payment & Shipping Terms:
|
| Max. Working Area (X X Y X Z): | 300x300x11 Mm, 400mmX300mm(Customizable) | Name: | Laser Depaneling Machine |
|---|---|---|---|
| Laser: | Optowave | Cutting Area: | Large Area |
| Cutting Material: | Various Material | Cutting Depth: | High Depth |
| Function: | Depaneling FR4/FPC | Safety Protection: | High Safety Protection |
| High Light: | 10W Laser Depaneling Machine,Depaneling FPC Laser Cutting Machine,Depaneling FR4 Laser Cutting Machine |
||

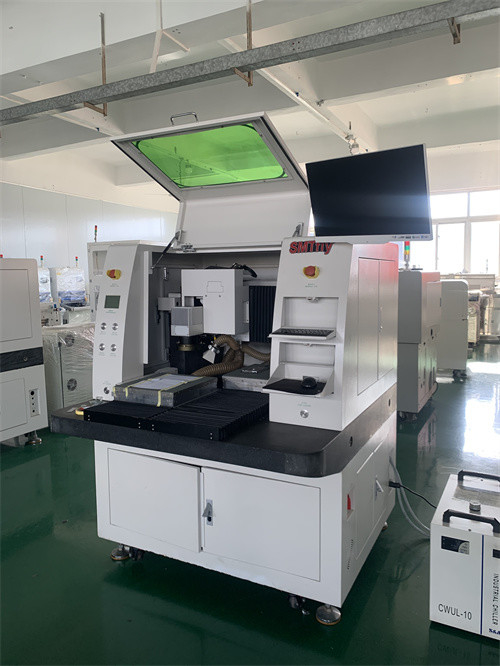

The Laser Depaneling Machine is a high-precision, efficient and cost-effective PCB laser cutting machine. It is specially designed for PCB depaneling applications and can achieve a cutting accuracy of ±25μm (1 Mil). It is equipped with a laser with a wavelength of 355nm and a maximum power of 10W/12W/15W/18W@30KHz. The cutting area of the machine is large and the maximum working area (X x Y x Z) is 300x300x11 Mm, 400mmX300mm(Customizable). It is highly cost-effective and enables smooth, accurate and fast cutting of printed circuit board (PCB). The Laser Depaneling Machine provides the highest quality of laser cutting for PCBs and is ideal for a wide range of PCB laser cutting applications including PCB laser cutting, laser pcb depaneling and pcb laser cutting machine.
| Technical Parameters | Value |
|---|---|
| Max. Working Area (X x Y x Z) | 300x300x11 Mm, 400mmX300mm(Customizable) |
| Laser | Optowave |
| Laser Power | 10W/12W/15W/18W@30KHz |
| Control System | Software-controlled |
| Voltage | AC 110V/220V |
| Cutting Accuracy | High Accuracy,± 25 μm (1 Mil) |
| Cutting Area | Large Area |
| Cutting Depth | High Depth |
| Cutting Material | Various Material |
| Function | Depaneling FR4/FPC |
Chuangwei's Laser Depaneling Machine is a pcb cutter machine which uses a pcb laser cutting machine to cut pcb board. It has a high cutting depth and smooth cutting edge, which is suitable for any environment. Its origin is in China and it is certified by CE Certificate. The minimum order quantity is 1 Set and the price is negotiable. For packaging, each set is packed in a plywood case. The delivery time is 10 days and payment terms are T/T, Western Union, and L/C. The optical wave used is Optowave and the supply ability is 260 sets per month.
Our Laser Depaneling Machine is a perfect solution for quickly and accurately separating PCBs from each other without damaging the components. The machine is widely used for separating PCBs from FR4/FPC, and it has a very high accuracy. It adopts a laser beam to cut and separate the boards, which is fast and accurate. The machine is equipped with Optowave laser and voltage is AC 110V/220V. The max. working area is 300x300x11 Mm, 400mmX300mm(Customizable).
Our Laser Depaneling Machine comes with a range of technical support and services to ensure optimal efficiency and reliability of the machine.
Laser Depaneling Machine Packaging and Shipping:
The Laser Depaneling Machine is packed in a reinforced cardboard box and secured with foam material. Each corner of the box is labeled with an arrow indicating the right direction of opening. The box should be handled with care and should not be dropped or subjected to shocks.
Prior to shipping, the box is sealed with a security tape to ensure that the contents remain safe and secure. The box is then placed in a larger shipping box and shipped with a reliable courier or freight service.
