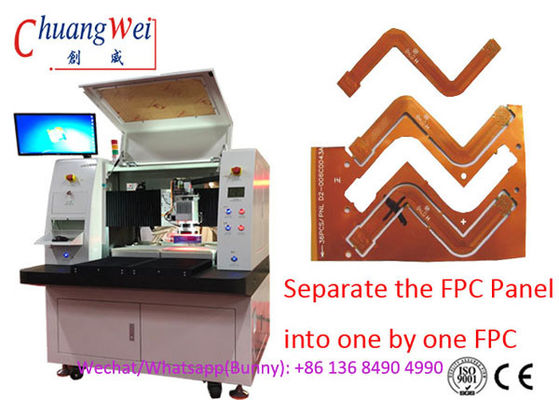

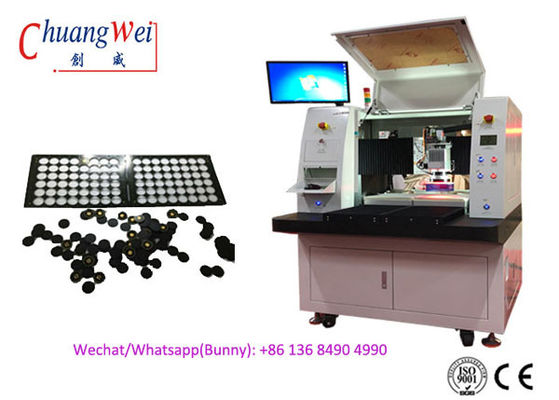

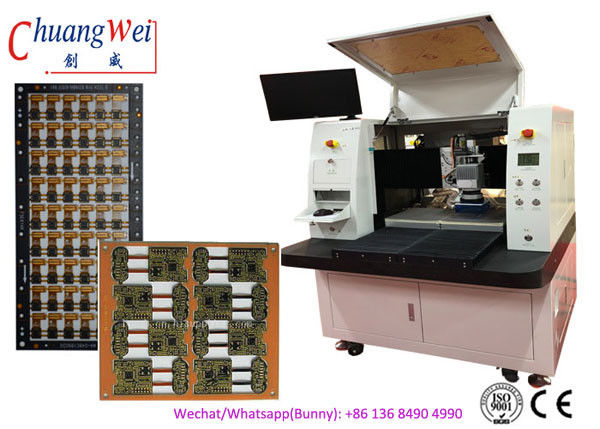

FPC Laser Cutting PCB Depaneling Machine without Cutting Stress 17W UV

FPC Laser Cutting PCB Depaneling Machine without Cutting Stress 17W UV
FPC Laser Cutting PCB Depaneling Machine without Cutting Stress 17W UV

Large Image :  FPC Laser Cutting PCB Depaneling Machine without Cutting Stress 17W UV

Product Details:

Place of Origin: China
Brand Name: Chuangwei
Certification: CE
Model Number: CWVC-6

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: plywood case
Delivery Time: 1-3 work days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 260 sets per month
Contact Now
Detailed Product Description
Name: Laser Depaneling Machine Weight: 850kgs
Shipping: FOB / EXW Laser: USA Brand Optowave
Power: 220V 380v Laser Power: 10W/12W/15W/17W@30KHz
High Light:

desiccant dry cabinets

,

dry storage cabinets

FPC Laser Cutting PCB Depaneling Machine without Cutting Stress 17W UV

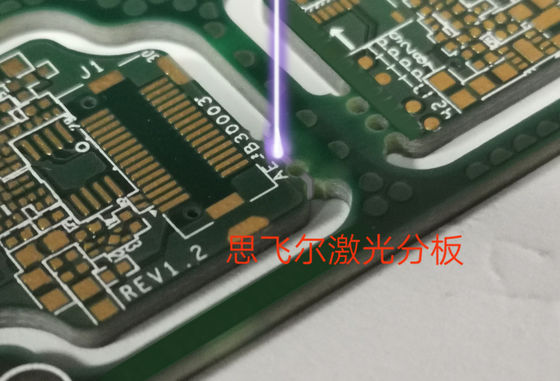

It is a Laser depaneling equipment, based on the Optowave laser source, capable of performing clean and safe cut without generating dust nor mechanical stress on the electronic components. LASER depanelling is the best way to perform extremely fast depaneling processes (up to 70% saving on cutting time obtained with traditional methods) and flexible cutting.



FPC Laser Cutting PCB Depaneling Machine without Cutting Stress 17W UV Specification



Laser Q-Switched diode-pumped all solid-state UV laser
Laser Wavelength 355nm
Laser Power 10W/12W/15W/17W@30KHz
Positioning Precision of Worktable of Linear Motor ±2μm
Repetition Precision of Worktable of Linear Motor ±1μm
Effective Working Field 460mmX460mm(Customizable)
Laser Scanning Speed 2500mm/s (max)
Galvanometer Working Field Per One Process 40mmх40mm



FPC Laser Cutting PCB Depaneling Machine without Cutting Stress 17W UV 0

More information welcome to contact us:



Email:sales@smtfly.com

Wechat/Whatsapp/Linked in: +86 13684904990
