PCB Depaneling with Different Cutting Fixtures Operated in Y-direction

PCB Depaneling with Different Cutting Fixtures Operated in Y-direction
PCB Depaneling with Different Cutting Fixtures Operated in Y-direction PCB Depaneling with Different Cutting Fixtures Operated in Y-direction

Large Image :  PCB Depaneling with Different Cutting Fixtures Operated in Y-direction

Product Details:

Place of Origin: Dongguan China
Brand Name: Chuangwei
Certification: CE ISO
Model Number: CW-F04

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: each set be packed in carton boxes
Delivery Time: 1-3 days after payment confirm
Payment Terms: T/T, L/C,paypal
Supply Ability: 300 sets per month
Detailed Product Description
Color: White Vacuum Cleaner: Upper Or Lower(optional)
Routing Bit: 0.8/1.2/1.5/1.8/2.0mm PCB Size: 450*350mm
PCB Material: FR1, FR4, MCPCB Description: PCB Router
High Light:

pcb shear cutter

,

metal cutter machine

PCB Depaneling with Different Cutting Fixtures Operated in Y-direction

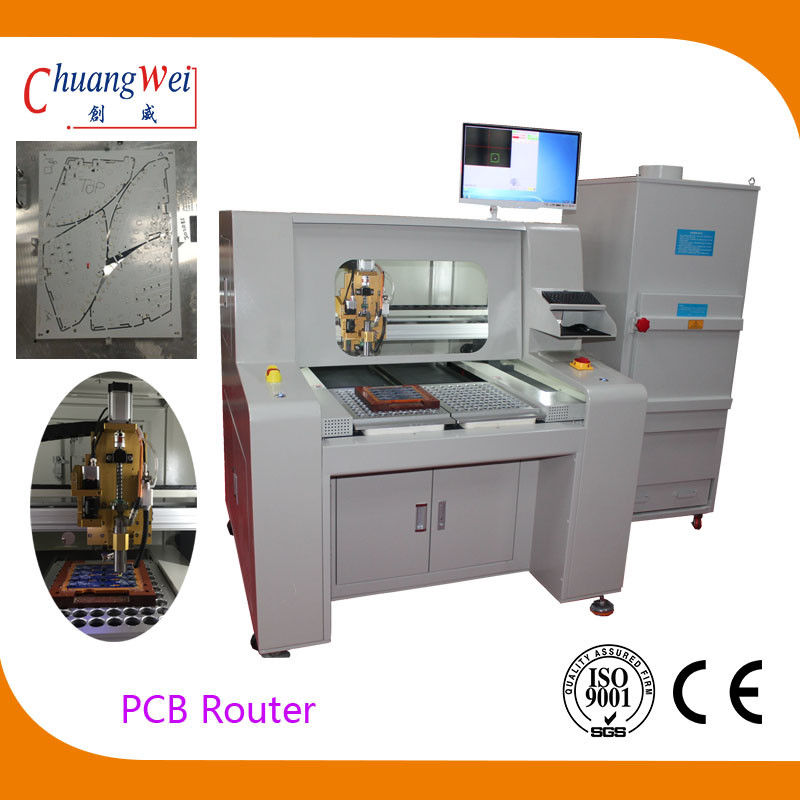

The depaneling process of this model is operated only in Y-direction. Can be equipped with differing cutting fixtures. It should be noted here, that the PCB panel is processed in Routing Spindle.



The routing spindle is mounted onto a Y- linear-axis system which cuts the panel in the Y-direction. The stopper will allows automatic processing of different sized PCBs.


Specification:


I. Hardware
SPINDLE KAVO spindle(Model:4051)
CCD Sony 520 line industrial cameras
LENS Computar EX2C
Screw TBI Precision ground ball screw imports
Guide HIWIN widening Imported linear guide rail
MOTOR JiaBao LCF Series
I/O CONTRONL CARD HFC PCI-9074
DRIVER CONTRONL CARD HFC PCI-9074
I/O CARD PCI-9074-64pcs/-38pcs
Static cleanup STATIC-ST401A Series
Computer (RMC-8401/6113LP4/300ATX/8651VNA/P4 2.8G 2CPU(S)/1G DDR/80G)
Machine interface AOC LCD17",Logitech mouse
2. software
Control system Windows XP Professional (Service3,v.3244)
Operation GUI English Windows XP
Program edit Inline
Vision system CCD AOTU offset
Control system F 1.2.88 version



Overall
Dimensions(W*D*H) 1280mm*1450mm*1480mm
Weight 750KG
Height offset 60~110mm
Manipulator
Motor type JiaBao series
Positioning repeatability 0.001mm
Axis working area(max) 890mm*560mm*50mm
Work station
PCB fixation standard,specialization
PCB loading/unloading manual
PCB size (max) 450*350mm
PCB thick (max) 5mm
Fixturing
Rigidity fixturing Customized make fixture
Fixturing fixation machinery
Spindle Motor
Power 150W
Spindle 60000rpm/min
Protect self/wind cooling
Change cutter Specialization
Routing capability
Cutting speed(max.) 80mm/s
Driving speed(max.) 2500mm/s
Precision of cutting 0.01mm
Vacuum System
Vacuum power 3.5KW AC 380V
Vacuum plumb
Utilities
Power 2.0KW AC380V
Air supply 4-6KG/cm2
Programming
Program edit Inline
Function edit Line,arc,circula,U-curve
Program storage HDD
Vision system SONE colour CCD
milling cutter offset AUTO
Vacuum setup AUTO
Operation Monitors
Iindicator Iindicator Machine state
tool check Automatic detection tool life, the use of time testing
Motor protect Have overheating, overload, low voltage protection function
motor over loading check Have Overload, the line is normal, low voltage protection function
Tool usable time Automatic detection tool life,
Data statistic Separate board model, separating count, diverse counting methods
Error record Software automatically records all alarms memory of machines
III. Accuracy
Axis precision 0.001mm
Cutting precision 0.1mm
IV. Safety
Working area protect With four sealed protection
Door sensor Front and rear safety door micro-switch sensor (optional)
Exigency stop button



Features:



1. Twin working table are alternately cutting, it is possible loading and takeoff PCB work during another table cutting.

2. Special cutting result that low-stress, hi-accuracy, hi-quality with router bit

3. Alternately-cut different program

4. User friendly drastically improved display function by use of touch panel

5. Reduced running cost with the function of Z axis height multistage-auto-changeover by router bit life(count cutting sheet or distance) management

PCB Depaneling with Different Cutting Fixtures Operated in Y-direction 0

6. It correspond with large size PCB(550mmx450mm by changing for large main base)

7. Prevent product failure by detection of router bit drops and broken

8. Easily create cutting program even there is no PCB CAD data with the use of TEACHING CAMERA(Option)
