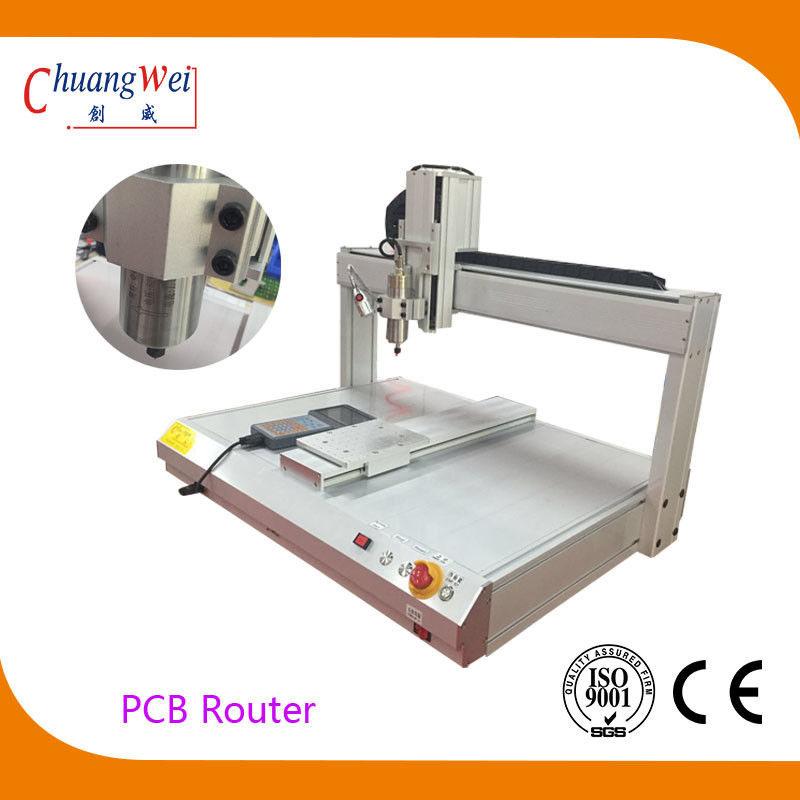

Desktop Printed Circuit Board Router PCB Board Separation 650mm X 450mm

Desktop Printed Circuit Board Router PCB Board Separation 650mm X 450mm
Desktop Printed Circuit Board Router PCB Board Separation 650mm X 450mm Desktop Printed Circuit Board Router PCB Board Separation 650mm X 450mm

Large Image :  Desktop Printed Circuit Board Router PCB Board Separation 650mm X 450mm

Product Details:

Place of Origin: China
Brand Name: ChuangWei
Certification: CE
Model Number: CWD-3A

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: plywood case
Delivery Time: 7 days
Supply Ability: 100 Sets/Month
Detailed Product Description
Color: White Program: Teaching Box
PCB Max Size: 650*450mm(Could Be Customized Made) PCB Thickness: 0.6-3.5mm
Spindle: China Name: PCB Depanel
High Light:

PCB Cutting Shear

,

pcb depaneling machine

Desktop Printed Circuit Board Router PCB Board Separation 650mm X 450mm





ChuangWei offers a wide choice of PCB routers including 2 desktop models that are available for 650*450mm panels. Universal fixtures & custom fixtures are available to meet customers' requirements. Only loosen 2 screws for a new fixture set-up, and no risk of an operator making the wrong set-up.



Specification:

Motor drive system

Servo / stepper motor

Spindle speed

50000r/s

Cutting performance

500mm/s

Drive system repeatability

±0.02mm

Cutting speed Resolution

±0.01mm

Configuration

X,Y,Z 3 axis Max 100mm/S(depends on PCB material and cutting quality)

Repeatability

<0.1mm

PCB positioning fixture load/unload

Manual

PCB thickness

0.4-4mm

Working area

650*450mm

Spindle motor power

0.5KW

Spindle motor speed

50000r/m

Spindle motor cooling

Air-cooled

Machine dimension

980*580*615mm

Weight

135KG

Security settings

emergency stop switch



Features:

● Desktop single bench cutting machine, Speeds of up to 100mm/s,
positioning speed 500mm/s
● Cut continuouslwithout interrution durinloadinand y p g g
unloading
● High quality shaft system allows the system to quickly ramp,
reduce the period of time, Improve productivity, maintaining high
precision
● Use high-quality hardware to ensure high rigidity and high
performance All screws are protected from dust and dirt from entering
to improve the life and performance of the shaft
● Use high-quality hardware to ensure high rigidity and high performance

CE Certification:

Desktop Printed Circuit Board Router PCB Board Separation 650mm X 450mm 0
