Inline PCB Separators With Automatic Tool Changer & Automatic Production Mode

China Dongguan Chuangwei Electronic Equipment Manufactory certification
China Dongguan Chuangwei Electronic Equipment Manufactory certification
The router works fine. I would like to special thanks to you one more time for your support!

—— Ahmet

I was set up your machine one week ago. İt’s good working. Thank you for all.

—— Erdem

The machine operates well, we will purchase it again

—— Jon

The machine works very well, now we train all workers.

—— Michal

I'm Online Chat Now

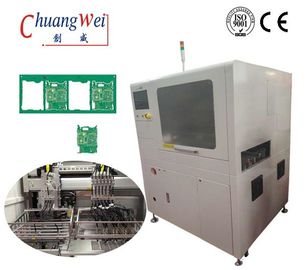

Inline PCB Separators With Automatic Tool Changer & Automatic Production Mode

small.img.alt small.img.alt

Large Image :  Inline PCB Separators With Automatic Tool Changer & Automatic Production Mode

Product Details:

Place of Origin: China
Brand Name: ChuangWei
Certification: CE
Model Number: CW-F03

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: plywood case
Delivery Time: 7-10 working days
Supply Ability: 200sets/year
Detailed Product Description
Color: White PCB Material: FPC, FR4
PCB Size: 350*350mm(max) Spindle: KAVO
Size: 1000*1200*1533mm ESD Safe: Yes
Cutting Accuracy: ±0.5mm Cutting Speed: 1-200mm/s
Break Blade Check: Yes Transmission Speed: 1500mm/s(max)/adjustable

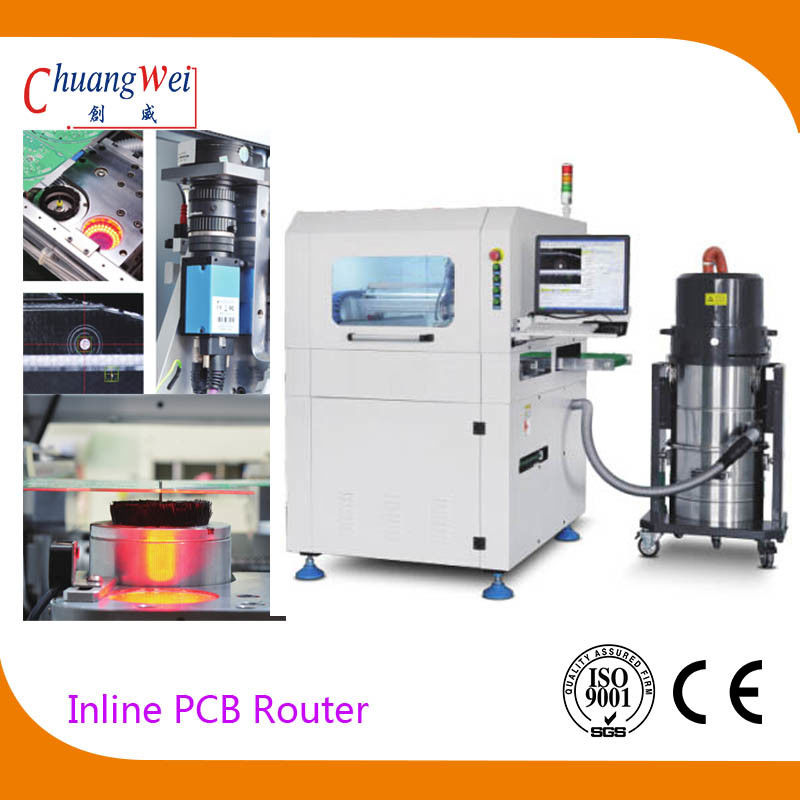

Transmission Height: 900±50mm Description: Inline PCB Router
High Light:

PCB depaneling


PCB separators


PCB Separators With Automatic Tool Changer

Inline PCB Separators with Automatic Tool Changer & Automatic Production Mode Advantages:


Super Vision System


A precise machine visual system which consists of German imagining industrial camera, Moritex Lens and measurement-level light source; it

supports all functions of machine calibration, compensation and positioning, featuring highstablility and anti-disturbance capacity.


Automatic tool changer

The standard tool changer supports three kinds of 3.175mm tools, each of which has a top loading Capacity of 10 ones. It is combined with precise clamping system and lifting system; three axes -X1,Y1 and Z1 of the cutting mechanism can realize tool changing.


High reliability cutting system

Germany KAVO high-speed principal axis with a top speed of 60000 rotates, featuring ESD static voltage monitoring and the functions of cutting stress feedback and automatic tool changing.


ESD ATPD panel forwarding system


Panel forwarding solution 1: the cut PCB will be delivered by clamping system to belt transmission line, and then sent by ESD transmission line via machine into assembling line, or be picked up and loaded into product case by customized manipulator solution.

Panel forwrding solution 2: use batch panel forwarding unit ARM-1 dismantle belt transmission line from machine, insert panel forwarding unit from behind the machine, and directly load the panel into blister box in ARM-1 via clamping system. The solution is featured By simplicity and convenience.


High reliability PCB gripper system


A perfect solution without jig cutting; A PCB clamping size scope of 2mm, the pick up device can realize repid loading/uploading, featuring high stability and low cost.






Machine Size



Approx 1900kgs

Max PCB Size


PCB Thickness


Transmission height


Transmission direction

Left -> Right

Transmission speed


Feeding plate type

Section-type transportation guide rail

Rail width adjustment


Communication signal of upper and lower computers


PCB Positioning

Upper and lower guide rail clamping

Picking system

360°rotary clamping system; 2 groups of vacuum suction nozzles at most, 4 groups of ESD belt transportation/batch panel forwarding units at most

Cutting spindl/speed

Germany KAVO, 60,000rpm/min

Cooling type

Air compression

ESD monitoring


Automatic tool change


Cutting stress feedback


Break blade check


Cutting speed


Cutting accuracy


Repeat positioning accuracy


Coordinate moving speed


Out plate type

ESD belt transportation/batch panel forwarding unit

Waste collection type

Out off the track

Procedure programming

GERBER drawing import/Editing program through visual system

Air supply


Power supply

AC380V±5%, 50/60Hz, 3KW
