| Description: | UV PCB Laser Cutting Machine | Color: | White |
|---|---|---|---|
| Laser Power: | 12/15W(optional) | Type: | UV |
| Working Size: | 460*460 Mm | Size: | 1480mm*1360mm *1412 Mm |
| Precision: | ±20 μm | Laser Brand: | USA Or Germany |
| Laser Wavelength: | 355nm | Laser Scanning Speed: | 2500mm/s (max) |
| High Light: | PCB depaneling,PCB Cutting Shear,15W UV PCB Laser Cutting Machine |
||

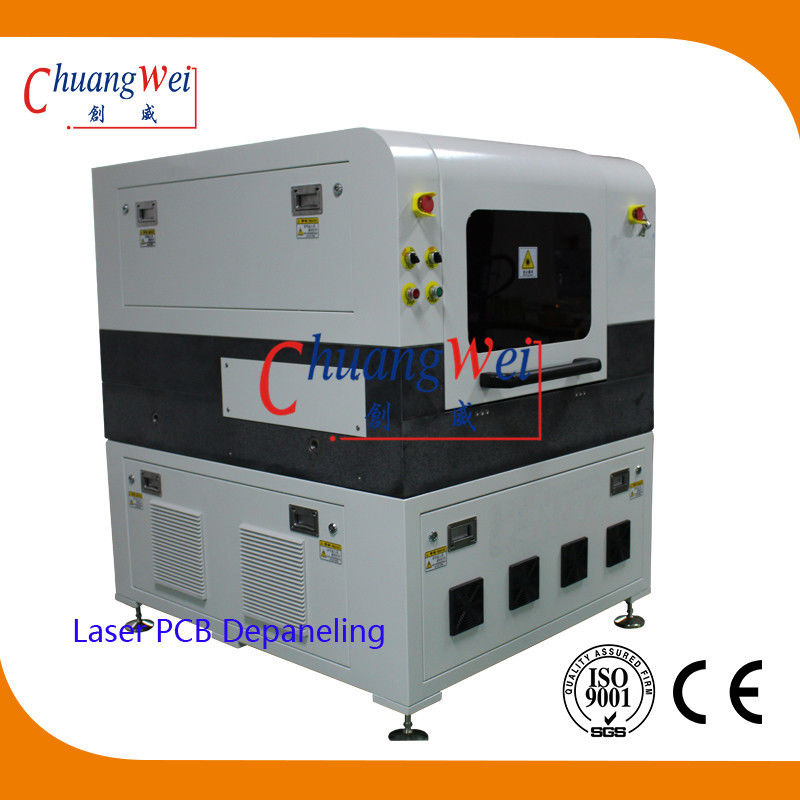

15W UV PCB Laser Cutting Machine for Flex PCB Board FPC Panel
UV PCB Laser Cutting Machine Application
FPC and some relative materials;
FPC/PCB/ Rigid-Flex PCB cutting, Camera module cutting;
UV PCB Laser Cutting Machine Parameter
| Parameter | ||
|
Technical parameters |
Main body of laser | 1480mm*1360mm*1412 mm |
| Weight of machine | 1500Kg | |
| Power | AC220 V | |
| Laser | 355 nm | |
| Laser |
Optowave 10W(US) |
|
| Material | ≤1.2 mm | |
| Precisio | ±20 μm | |
| Platfor | ±2 μm | |
| Platform | ±2 μm | |
| Working area | 600*450 mm | |
| Maximum | 3 KW | |
| Vibrating | CTI(US) | |
| Power | AC220 V | |
| Diameter | 20±5 μm | |
| Ambient | 20±2 ℃ | |
| Ambient | ＜60 % | |
| The Machine | Marble | |
UV PCB Laser Cutting Machine Features
1. Neat and smooth edge, no burr or overflow
2. More quick and easy, shorten the delivery time
3. High quality ,no distortion,surface clean& uniformity;
4. Gathering the CNC tech,laser tech,software tech…High accuracy,High speed
UV PCB Laser Cutting Machine Detailed Photo
UV PCB Laser Cutting Machine Advantages
High precision CCD automatic positioning, automatic focusing. Fast and accurate positioning, save time and no worries.
Friendly interface,Simple operation, easy to use, free application; Small size, Save more space; rigorous security design;
Reduce energy consumption, Cost savings.
Cost-effective, fast cutting speed, stable performance
