Product Details:
Payment & Shipping Terms:
|
| Type: | Laser Cutting | Laser Power: | 10W |
|---|---|---|---|
| Color: | White | Warranty: | 1 Year |
| Advantage: | Oversea Installation And Training Is Available | Samples: | Available For Trial Cutting |
| Cutting Stress: | No | Laser Pcb Depaneling: | Could Be Customized Make |
| High Light: | PCB Cutting Shear,PCB separators,No Pressure PCB Depaneling Machine |
||

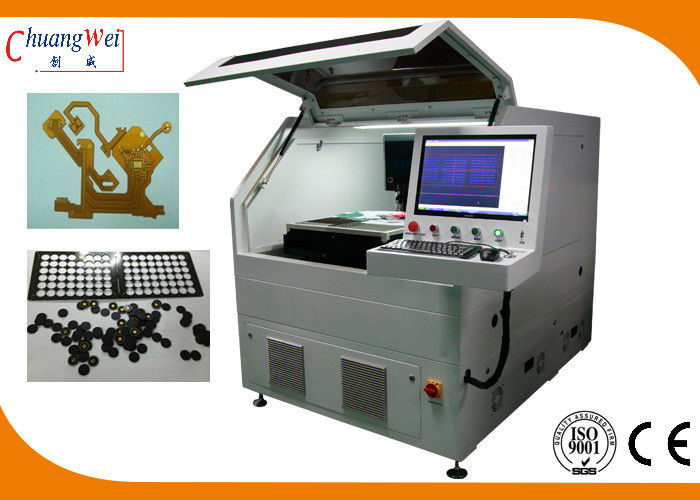

PCB Depaneling Laser Cut Circuit Board with No Pressure for LED Lighting Feature:
1. High precision CCD automatic positioning, automatic focusing. Fast and accurate positioning, save time and no worries.
2. Friendly interface,Simple operation, easy to use, free application; Small size, Save more space; rigorous security design;
3. Reduce energy consumption, Cost savings.
4. Cost-effective, fast cutting speed, stable performance
PCB Depaneling Laser Cut Circuit Board,CWVC-5S Specification:
| Parameter | ||
|
Technical parameters |
Main body of laser | 1480mm*1360mm*1412 mm |
| Weight of the | 1500Kg | |
| Power | AC220 V | |
| Laser | 355 nm | |
| Laser |
Optowave 10W(US) |
|
| Material | ≤1.2 mm | |
| Precisio | ±20 μm | |
| Platfor | ±2 μm | |
| Platform | ±2 μm | |
| Working area | 600*450 mm | |
| Maximum | 3 KW | |
| Vibrating | CTI(US) | |
| Power | AC220 V | |
| Diameter | 20±5 μm | |
| Ambient | 20±2 ℃ | |
| Ambient | ＜60 % | |
| The Machine | Marble | |
PCB Depaneling Laser Cut Circuit Board
PCB Depaneling Laser Cut Circuit Board Machine Principle
PCB Depaneling Laser Cut Circuit Board Machine Application:
FPC and some relative materials;
FPC/PCB/ Rigid-Flex PCB cutting, Camera module cutting;
Our Service:
# 1 day delivery
# 24 hours fast response
# Largest manufactory in South China
# 100% responsible for quality
# 18 years experience
# Oversea installation and training is available
