Laser PCB Separator Machine for FPC / PCB / Rigid Flex PCB Cutting

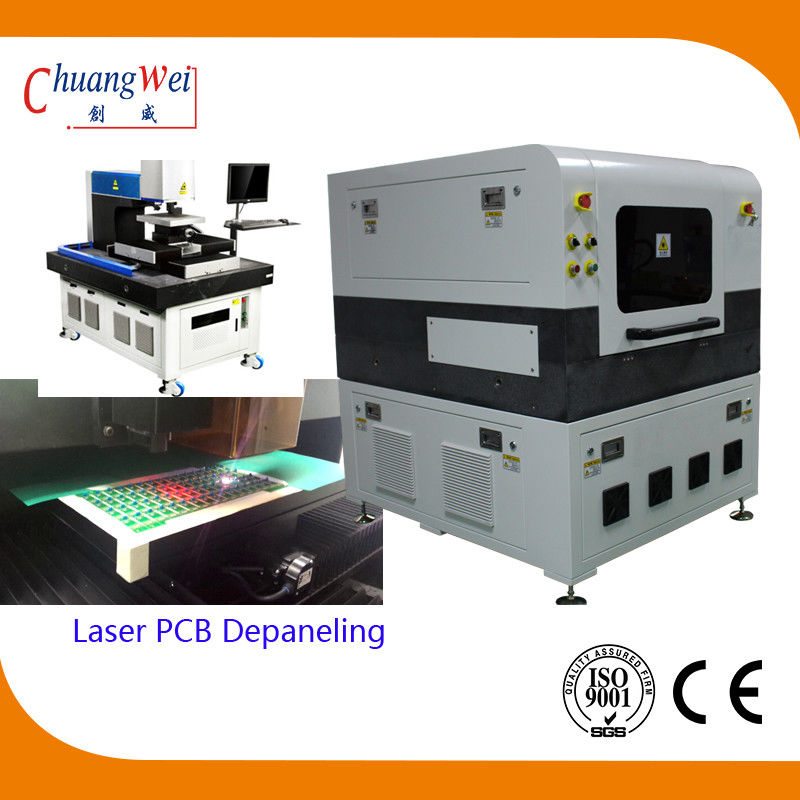

Large Image : Laser PCB Separator Machine for FPC / PCB / Rigid Flex PCB Cutting

Product Details:

Place of Origin:	China
Brand Name:	Chuangwei PCB Depaneling Machine
Certification:	CE ROHS
Model Number:	CWVC-5L

Payment & Shipping Terms:

Minimum Order Quantity:	1Set
Price:	Negotiable
Packaging Details:	each set be packed in plywood case
Delivery Time:	1-3 work days
Payment Terms:	T/T, Western Union, L/C
Supply Ability:	260 sets per month

Contact Now

Detailed Product Description

Power(W)::	10/12/15/17W	PCB Size:	600*460mm(max)
Cutting Stress:	0	Laser Scanning Speed:	2500mm/s (max)
Name:	Laser PCB Separator	Warranty:	2 Years
High Light:	medical Drying Cabinet , dry storage cabinets

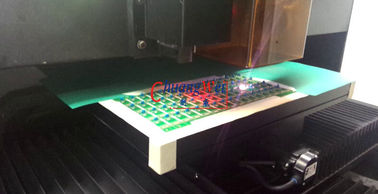

Laser PCB Separator Machine for FPC/PCB/ Rigid-Flex PCB cutting

1. Description:

Neat and smooth edge, no burr or overflow

Wide application range, including FPC exterior cutting, profile cutting, drilling, opening window for covering, etc.

Laser wavelength: 355nm

Rated power: 10W/12W/15W/18W@30KHz

Galvanometer working field Per One Process: 40 × 40mm

Power consumption for the hole machine: 2KW

2. Features

More quick and easy, shorten the delivery time;

High quality ,no distortion,surface clean& uniformity;

Gathering the CNC tech,laser tech,software tech…High accuracy,High speed;

3.Cutting Application

FPC and some relative materials;

FPC/PCB/ Rigid-Flex PCB cutting, Camera module cutting;

4.Specification

Laser	Q-Switched diode-pumped all solid-state UV laser
Laser Wavelength	355nm
Laser Power	10W/12W/15W/18W@30KHz
Positioning Precision of Worktable of Linear Motor	±2μm
Repetition Precision of Worktable of Linear Motor	±1μm
Effective Working Field	400mmX300mm(Customizable)
Laser Scanning Speed	2500mm/s (max)
Galvanometer Working Field Per One Process	40mmх40mm
