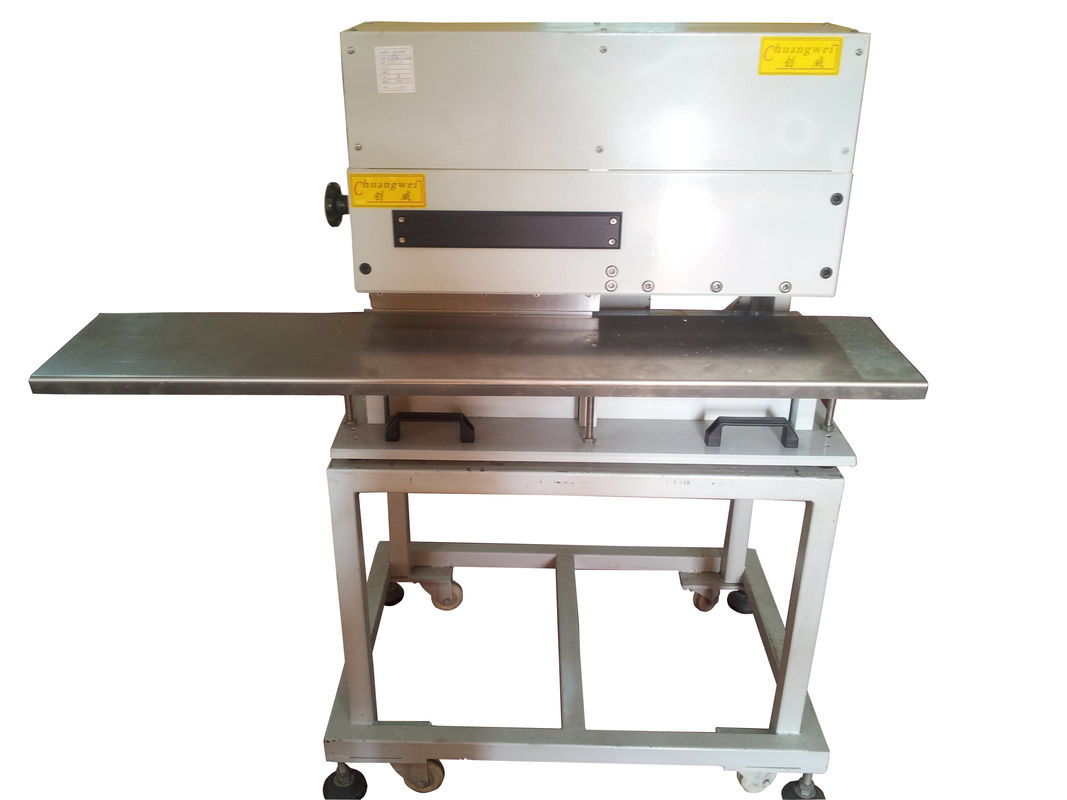

Pneumatic PCB Separator MCPCB Depanelizer High Speed Steel CE

Pneumatic PCB Separator  MCPCB Depanelizer High Speed Steel CE

Large Image :  Pneumatic PCB Separator MCPCB Depanelizer High Speed Steel CE

Product Details:

Place of Origin: China
Brand Name: Chuangwei pcb separator machine
Certification: CE
Model Number: CWVC-3 pcb separator machine

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: plywooden case
Delivery Time: within 3 days after receive the payment
Supply Ability: 40 sets per month
Detailed Product Description
Cutting Length: Unlimited Packaging Detail: Plywooden Case
Delivery Detail: Within 3 Days Warranty: 1 Year
Establish Year: 1999 Material: High Speed Steel
High Light:

pcb assembly machine


pcb shear cutter


V Cut PCB Depaneling For Pneumatic PCB Separator MCPCB Depanelizer




1. The machine was designed to separate pre-scored PCB carefully , without bending and tension stress .
2. Even sensitive SMD - Components like ceramic capacitors, will not be damaged by the separating process , or thin board even to 0.3mm can be worked safely .
3. Separating process without vibrations
4. PCB separating control method is by pneumatic - driven and electromagnetic valve
5. PCB separating operation is that operator stamps the foot pedal to separate PCB
6. Highest components near the v groove of PCB can be up to 50mm
7. Gap for insertion of PCB can be easy to adjust


1. Max. PCB separating length is unlimted
2. Separate PCB without bending and tension stress
3. Safety use, easy operation
4. Separating process without vibrations


Model CWVC - 3
Max. PCB separating length unlimited
PCB separating thickness 0.3-3.5mm
PCB separating speed   by operator skilled level
Voltage 110/220V
PCB separator machine size 780x500x620mm
PCB separator machine weight 185Kg


Pneumatic PCB Separator  MCPCB Depanelizer High Speed Steel CE 0

Video:    (For 1.2 meter aluminium PCB  CWVC-3 )

Company information

From 1999 we started to development,manufacture , sale,service for PCB separator machine, until now , we have produced different kind PCB separator machine type for  manual , motor-driven , pneumatic-driven,mold punching , milling cutter router .
You can depend on your company's condition and choose the most suitable one .
Also We can manufacture PCB separator machine base your actual requires .  (any shape , length , thickness of PCB,aluminium PCB , LED strip , solar energy PCB , FR4 and soft material FPC etc . )

Any interest please contact us freely.

why choose us


1. Engineers available to service machinery oversea

Engineers are available to be sent to freign countries to do machinery training and offer technical support.


2. Mature technique & forerunner to process makes high quality machinery

As largest manufactory in South China, we have 12 years experience on PCB separator machines and soldering machines.

Our R&D team continuously upgrade the existing machines to meet the market development trend.


3.Effective customer service

All of us together are stronger and wiser than any one of us individually. To succeed, we must assume responsibility, cooperate with fellow associates and with departments, effectively comminicate with one another, foster enthusiam and participate in decision-making. To be seay reachable by customers and provide prompt replies to solve their problems and create value for customers.


4.One year warranty for the machines except accessories

Robust frame construction and Japanese steel blades obtained good appraise and recognized by and oversea clients.

We offer parts for replacement under warranty free of charge, clients only need to bear freight charge.


◇ 1 day delivery

◇ 24 hours fast response

◇ Largest manufactory in South China

◇ 100% responsible for quality

◇ 12 years experience

◇ Free sharpening for blades within 3 months

◇ Controlled drawings make strict confidentiality for clients
