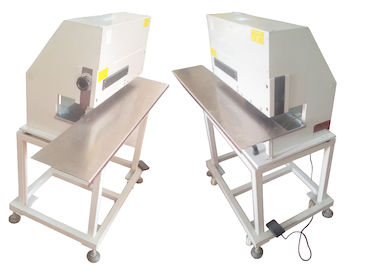

Safety PCB Separator for Pneumatic PCB Depaneling MCPCB Depanelizer

Safety PCB Separator for Pneumatic PCB Depaneling MCPCB Depanelizer
Safety PCB Separator for Pneumatic PCB Depaneling MCPCB Depanelizer Safety PCB Separator for Pneumatic PCB Depaneling MCPCB Depanelizer

Large Image :  Safety PCB Separator for Pneumatic PCB Depaneling MCPCB Depanelizer

Product Details:

Place of Origin: China
Brand Name: Chuangwei pcb separator machine
Certification: CE
Model Number: CWVC-3 pcb separator machine

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: plywooden case
Delivery Time: within 3 days after receive the payment
Supply Ability: 40 sets per month
Detailed Product Description
Cutting Length: Unlimited Packaging Detail: Plywooden Case
Delivery Detail: Within 3 Days Warranty: 1 Year
Establish Year: 1999 Material: High Speed Steel
High Light:

PCB depaneling

,

PCB Cutting Shear

,

Pneumatic MCPCB Depanelizer

PCB Separator For Pneumatic PCB Depaneling MCPCB Depanelizer

Specifications



1. Max. PCB separating length is unlimted
2. Separate PCB without bending and tension stress
3. Safety use, easy operation
4. Separating process without vibrations

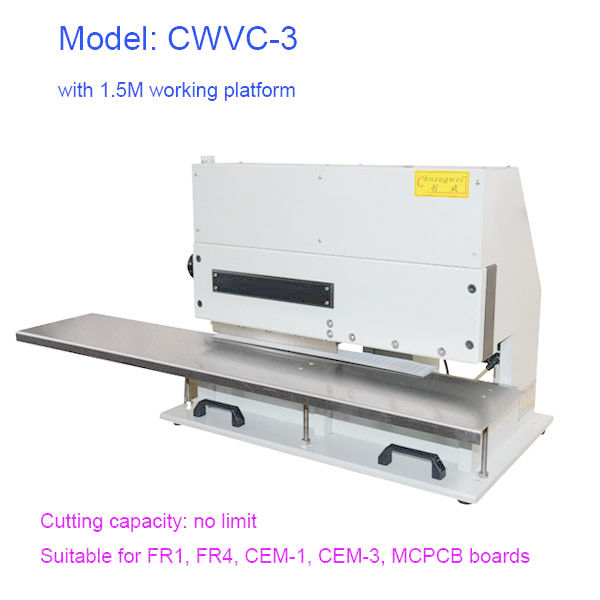

Model

CWVC - 3

Max. PCB separating length

unlimited

PCB separating thickness

0.3-3.5mm

PCB separating speed

by operator skilled level

Voltage

110/220V

PCB separator machine size

780x500x620mm

PCB separator machine weight

185Kg



Features:



1. The machine was designed to separate pre-scored PCB carefully , without bending and tension stress .
2. Even sensitive SMD - Components like ceramic capacitors, will not be damaged by the separating process , or thin board even to 0.3mm can be worked safely .
3. Separating process without vibrations
4. PCB separating control method is by pneumatic - driven and electromagnetic valve
5. PCB separating operation is that operator stamps the foot pedal to separate PCB
6. Highest components near the v groove of PCB can be up to 50mm
7. Gap for insertion of PCB can be easy to adjust


Video:


http://www.youtube.com/watch?v=313h1CQYz9w&feature=youtu.be
http://www.youtube.com/watch?v=mCCaaT56omw&feature=youtu.be    (For 1.2 meter aluminium PCB  CWVC-3 )

Company information


From 1999 we started to development,manufacture , sale,service for PCB separator machine, until now , we have produced different kind PCB separator machine type for  manual , motor-driven , pneumatic-driven,mold punching , milling cutter router .
You can depend on your company's condition and choose the most suitable one .
Also We can manufacture PCB separator machine base your actual requires .  (any shape , length , thickness of PCB,aluminium PCB , LED strip , solar energy PCB , FR4 and soft material FPC etc . )

Any interest please contact us freely.
