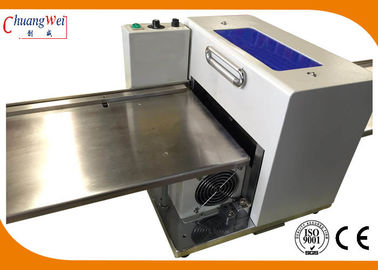

PCB Separator Depaneling Machine For LED Panel PCB Depanelizer PCB separator machine PCB Depaneling division

Large Image : PCB Separator Depaneling Machine For LED Panel PCB Depanelizer PCB separator machine PCB Depaneling division

Product Details:

Place of Origin:	China
Brand Name:	Chuangwei
Certification:	Ce certifiate
Model Number:	CWVC-1SN

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	plywood case
Delivery Time:	5 work days
Payment Terms:	Western Union, T/T, L/C, D/A, D/P
Supply Ability:	1000 sets / year

Contact Now

Detailed Product Description

Cutting Length:	Unlimited	Material For The Blades:	HIgh Speed Steel
Number Of Blades:	9 Pairs	Blades Shape:	Circlure Blades
Warranty:	Machine Free For One Year	Machine Type:	Automatic Type
Highlight:	V-CUT scoring machine , PCB Cutting Machine

PCB Depanelizer Multi Slitter PCB Separator Depaneling Machine For LED Panel

PCB Depaneling machine with 9 pairs of blades,CWVC-1SN Features:

1. The machine adopts the computer screen control with a counting device, which you can use to preset the processing production. And the space of cutting tool is visible on the screen.

2. It can cut 8 pcs boards with multiple sets of knives work at the same time.

3. The knife flywheel is adjustable and distance between knives is regulable.

4. The blade is made of high speed steel material, which is durable and have a long service life.

5. It is convenient to adjust the cutting speed through rotary knob With a conveyor belt line, the separated pcb can be send out directly to reduce pick- and-place.

PCB Depaneling machine with 9 pairs of blades,CWVC-1SN Specification :

Machine Model: CWVC-1SN

Max .Cutting length: unlimited

Blades material: High speed steel

Cutting speed: 400 mm /s

Voltage: 220 /110 V

Cutting thickness: 1.0-3.5 mm

Machine size: 2180 * 620 * 960 mm

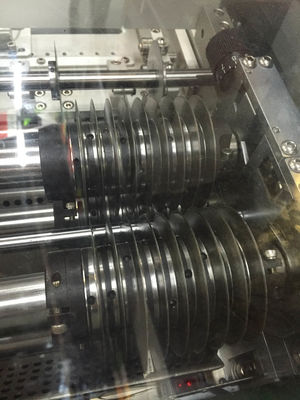

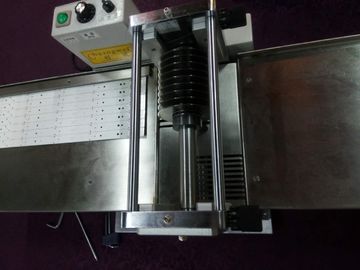

Detailed pictures for CWVC-1SN :
