LED Strip Depaneling Machine with Multiple-blades FR4 PCB Separator

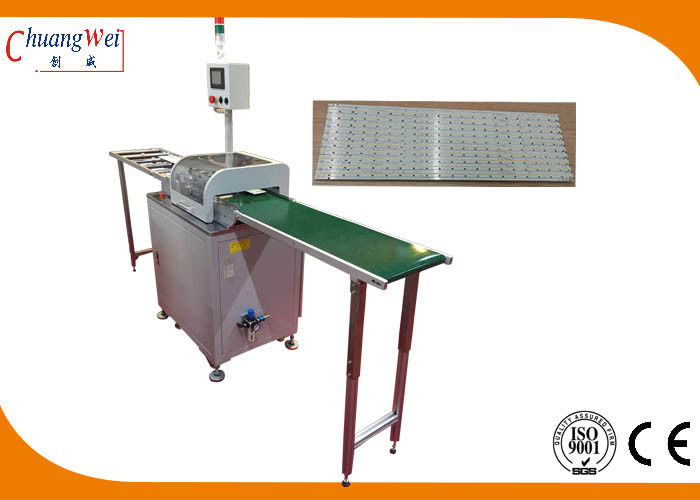

Large Image : LED Strip Depaneling Machine with Multiple-blades FR4 PCB Separator

Product Details:

Place of Origin:	China
Brand Name:	Chuangwei
Certification:	CE
Model Number:	CWVC-5

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	plywood case
Delivery Time:	5 work days
Payment Terms:	Western Union, T/T, L/C, D/A, D/P
Supply Ability:	1000 sets / year

Contact Now

Detailed Product Description

Cutting Length:	Unlimited	Material For The Blades:	High Speed Steel
Number Of Blades:	9 Pairs	Blades Shape:	Circular Blades
Warranty:	Machine Free For One Year	Machine Type:	Automatic Type
Name:	MCPCB PCB Separator	Machine:	Can Be Customized
Highlight:	pcb assembly machine , pcb shear cutter

LED Strip Depaneling Machine with Multiple-blades FR4 PCB Separator CWVC-5 Specification :

Model	CWVC-5
Max Cutting Length	No limit
Blade Material	High speed steel
Cutting Speed	400mm/s
Cutting Thickness	1.0-3.5mm
Voltage	220V or 110V

LED Strip Depaneling Machine with Multiple-blades FR4 PCB Separator CWVC-5 Features:

1. The machine adopts the computer screen control with a counting device, which you can use to preset the processing production. And the space of cutting tool is visible on the screen.

2. It can cut 8 pcs boards with multiple sets of knives work at the same time.

3. The knife flywheel is adjustable and distance between knives is regulable.

4. The blade is made of high speed steel material, which is durable and have a long service life.

5. It is convenient to adjust the cutting speed through rotary knob With a conveyor belt line, the separated pcb can be send out directly to reduce pick- and-place
