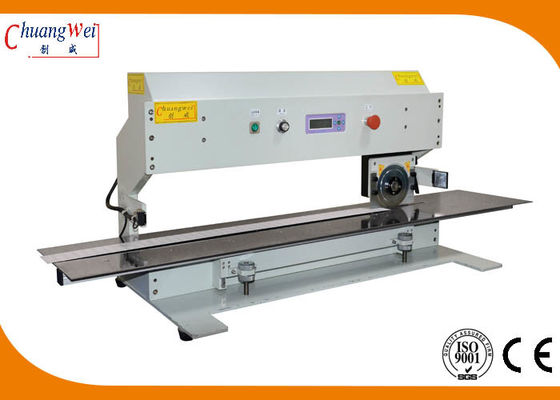

Autoamtic Pcb Depaneling Machine Metal Cutter Machine for 600MM Length Board

Autoamtic Pcb Depaneling Machine Metal Cutter Machine for 600MM Length Board
Autoamtic Pcb Depaneling Machine Metal Cutter Machine for 600MM Length Board Autoamtic Pcb Depaneling Machine Metal Cutter Machine for 600MM Length Board

Large Image :  Autoamtic Pcb Depaneling Machine Metal Cutter Machine for 600MM Length Board

Product Details:

Place of Origin: China
Brand Name: chuangwei
Certification: Ce certificate
Model Number: CWV-1A600

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: plywood case
Delivery Time: 5 work days
Payment Terms: Western Union, T/T, L/C, D/A, D/P
Supply Ability: 1000 sets/ year
Contact Now
Detailed Product Description
Material For The Blades: High Speed Steel Blades Shape: One Linear Blade And One Circle Blade
Cutting Length: Up To 600 Mm Type: Automatic Type
Warranty: Free For One Year Products Name: Autoamtic Pcb Depaneling Machine
Highlight:

pcb assembly machine

,

metal cutter machine

Autoamtic Pcb Depaneling Machine Cutting 600MM Length Board

Separate Pre-scored PCB Assembly PCB depaneling machine

 (CWV-1A-600) Sepcification:

Size 1080mm X 860mm X660mm
The Longest Minimize 600mm
Minimize Speed 100/200/300/500mm/s
Minimize thickness 0.6-3.5mm
Machine Weight 120Kg



Separate Pre-scored PCB Assembly PCB depanelilng (CWV-1A-600) Features:

1,Separate pre-scored PCB assembly without stress on either PCB or component
2,One touch programming of cut length with digital display
3,Separating speed is adjusted by a rotary knob
4,Handle Intermittent scoring or cut-outs
5,Board with projected component can be cut precisely
6,Large stainless steel platform on both side of cutting lade prevents board wobble and table height and
angle are adjustable
7,Optional PCB conveyor belt to remove finished board
8,Clearance between circular and linear blades are adjustable to fit different groove depth and ompensates for blade wear out
9,three eletric eye ,1.2m platform.


Blades on pcb depaneling machine CWV-1A600

Autoamtic Pcb Depaneling Machine Metal Cutter Machine for 600MM Length Board 0Autoamtic Pcb Depaneling Machine Metal Cutter Machine for 600MM Length Board 1

Autoamtic Pcb Depaneling Machine Metal Cutter Machine for 600MM Length Board 2Autoamtic Pcb Depaneling Machine Metal Cutter Machine for 600MM Length Board 3


Tag:

pcb assembly machine,

pcb shear cutter,

metal cutter machine
