Product Details:
Payment & Shipping Terms:
|
| Cutting Length: | 450mm | Blades Material: | High Speed Steel |
|---|---|---|---|
| Blades Shape: | Linear Blades | Type: | Pneumatic Type |
| Warranty: | Machine Free For One Year | Name: | Pcb Separator Machine |
| High Light: | PCB Cutting Shear,PCB separators,Pneumatic Type PCB Separator |
||
450mm Length Pcb Separator Machine with Two Linear Blades
Sepcifications for pcb separator machine CWVC-450J:
|
Model |
CWVC-450J |
|
The Longest Minimize |
450mm |
|
Size |
960×425×350mm |
|
Minimize thickness |
1.0-3.5mm |
|
Machine Weight |
200KG |
PCB Depaneling Machine,CWVC-450J Features:
1,Separates boards up to 3.5mm thick
2,Shears boards safely with parts as close as 0.5mm to the score line,including ceramic capacitors
3,Operator foolproof! Panels cannot be inserted into the knives except on the score line
4,Pneumatically driven
5,Handles high components up to70mm
6,Bow waves that can occur with round knives are avoided
7,Easy adjusting of distance between knives
8,Independent lab tests show less than 200 microstrains of stress measuring compression and tension.
9,Has capacity counter function

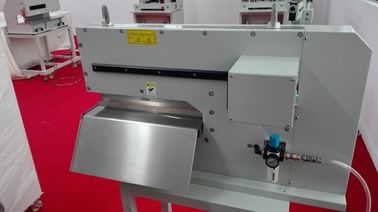

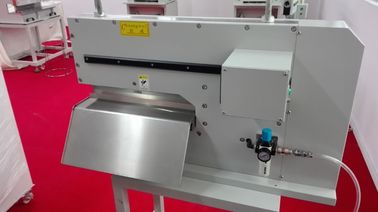

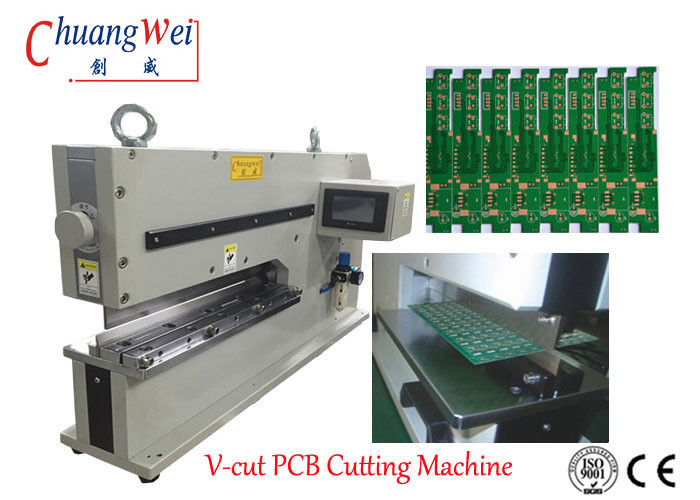

Detailed pictures :
